Genelec 1238AC 3-Way SAM Center Monitor (Horizontal, Bass Down)
Orientation
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

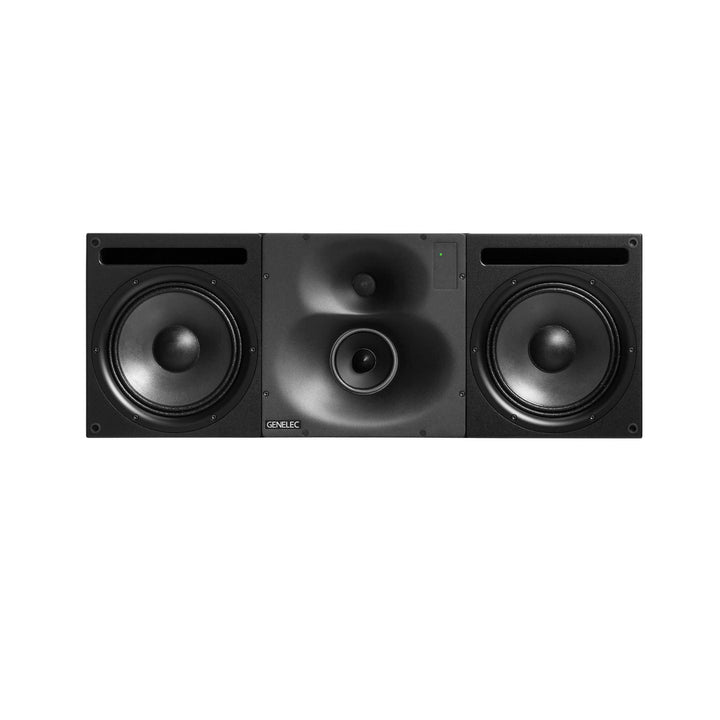

The Genelec 1238AC is a 3-way SAM center channel monitor designed for multichannel monitoring in film dubbing stages and post-production facilities. Featuring dual 250 mm bass drivers, a 125 mm midrange, and 25 mm tweeter with 950W of amplification, the 1238AC delivers 121 dB of output with extension to 30 Hz. Available in multiple orientation variants (VL, VR, HU, HD) for flexible installation above, below, or beside the screen.
Mounting Orientation
This unit ships with the DCW (Directivity Control Waveguide) factory pre-rotated for horizontal mounting with bass drivers positioned below the DCW installation. The 1238AC is designed for flush mounting in either vertical or horizontal configuration. The midrange and treble drivers are always aligned vertically with the tweeter on top for optimal stereo symmetry, regardless of enclosure orientation. Order the orientation matching your installation to avoid on-site DCW rotation.
Specifications
- Type: 3-way SAM center monitor
- Bass drivers: 2x 250 mm (10")
- Midrange: 125 mm (5")
- Tweeter: 25 mm (1")
- Amplifier power: 500W + 250W + 200W
- Frequency range: 30 Hz - 22 kHz (-6 dB)
- Max SPL: 121 dB @ 1 m
- Inputs: XLR analog, AES/EBU digital, 2x RJ45 (GLM)
Dimensions
- Dimensions (H x W x D): 13.8 x 37.4 x 17.8 in (350 x 950 x 453 mm)
- Weight: 60 kg / 132.3 lb
In the Box
- Genelec 1238AC monitor (single)
- Mains cable
- Installation manual
