Genelec 1236A 3-Way SAM Main Monitor (Horizontal, Bass Left)
Orientation
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

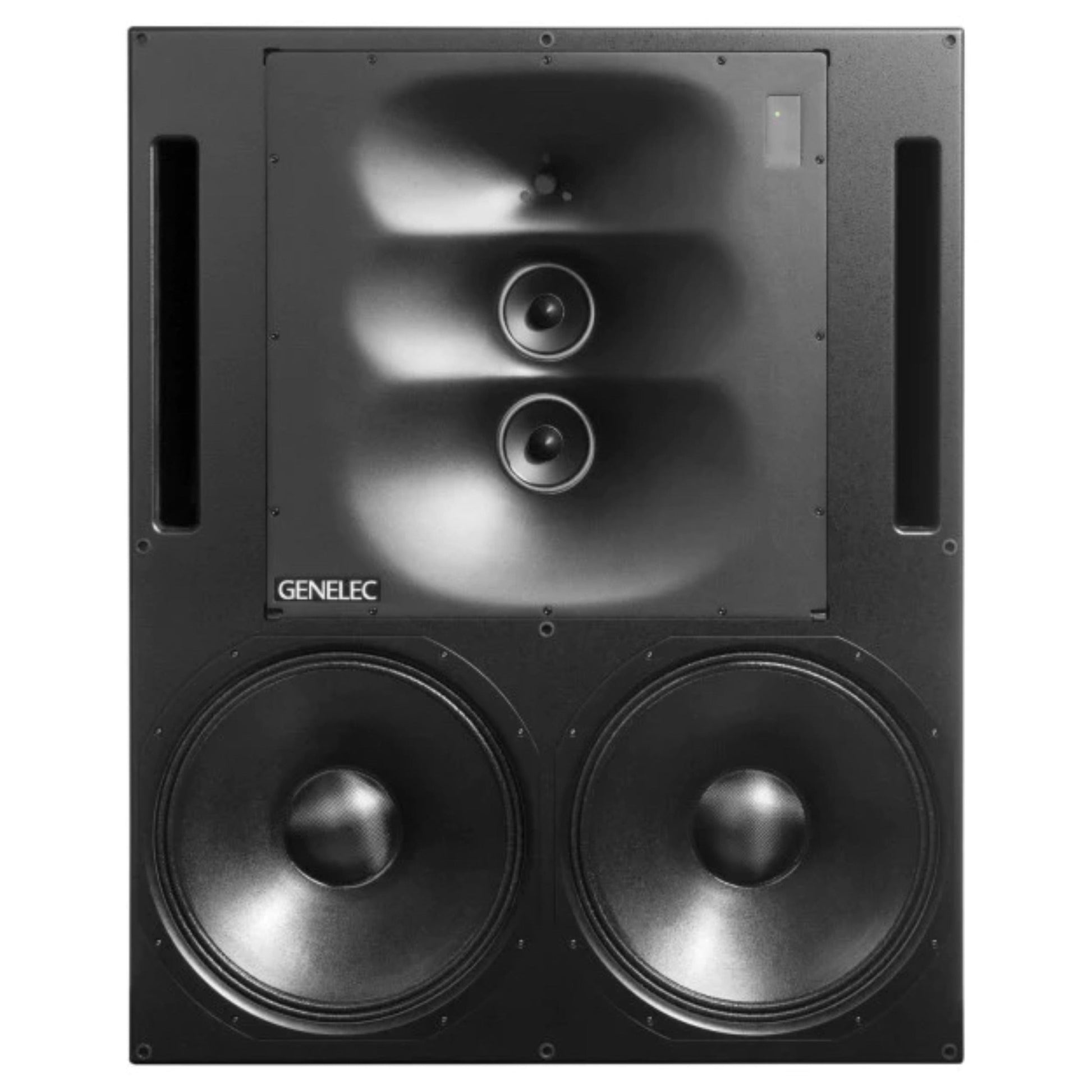

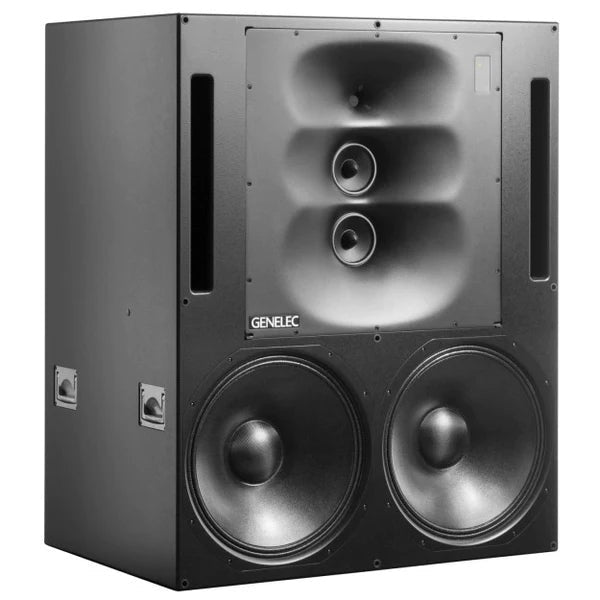

The Genelec 1236A is a flagship 3-way SAM main monitor system featuring dual 458 mm bass drivers, dual 125 mm midrange drivers, and a compression-loaded tweeter powered by a remote RAM-XL amplifier delivering 3050W. Reaching 17.5 Hz (-6 dB) with 130 dB of output, the 1236A is designed for the world's largest dubbing stages, scoring rooms, and immersive audio facilities. SAM/GLM calibration ensures precise room correction at this monumental scale.
Mounting Orientation
This unit ships with the DCW (Directivity Control Waveguide) factory pre-rotated for horizontal mounting with bass drivers to the left of the DCW installation. The 1236A is designed for flush mounting in either vertical or horizontal configuration. The midrange and treble drivers are always aligned vertically with the tweeter on top for optimal stereo symmetry, regardless of enclosure orientation. Order the orientation matching your installation to avoid on-site DCW rotation.
Specifications
- Type: 3-way SAM main monitor (remote amplifier)
- Bass drivers: 2x 458 mm (18")
- Midrange: 2x 125 mm (5")
- Tweeter: Compression driver
- Amplifier power: 3050W total (RAM-XL)
- Frequency range: 17.5 Hz - 26 kHz (-6 dB)
- Max SPL: 130 dB @ 1 m
- Inputs: XLR analog, AES/EBU digital, 2x RJ45 (GLM)
Dimensions
- Dimensions (H x W x D): 46.5 x 37.8 x 25.6 in (1180 x 960 x 650 mm)
- Weight: 182 kg / 401.2 lb
In the Box
- Genelec 1236A monitor cabinet

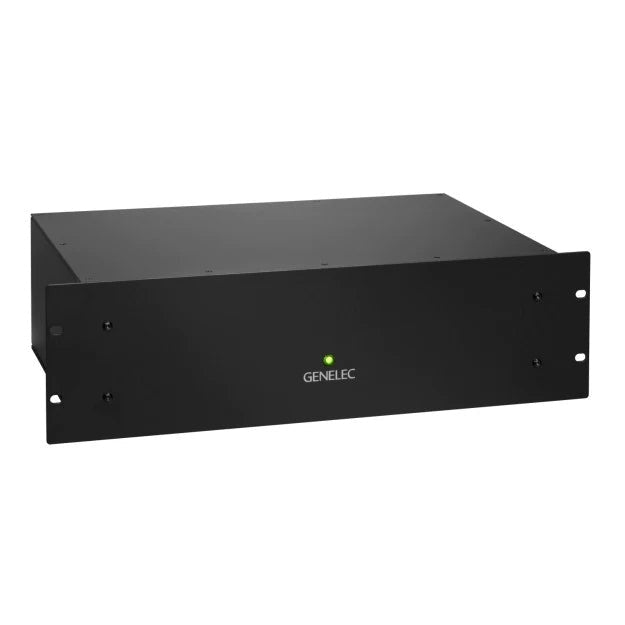

- RAM-XL amplifier module
- Cabling and mounting hardware
- Installation manual
