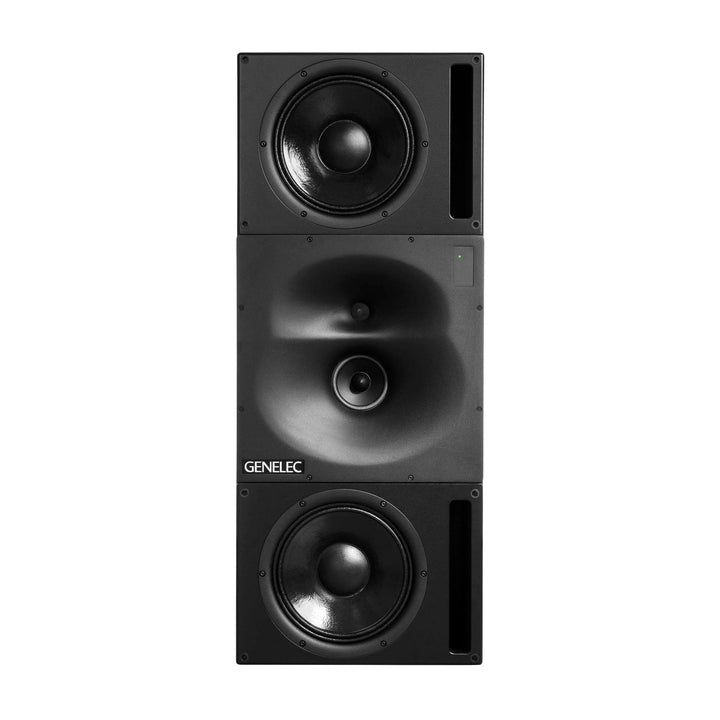

Genelec Genelec 1234AC 3-Way SAM Center Monitor (Vertical, Bass Right)

Genelec 1234AC 3-Way SAM Center Monitor (Vertical, Bass Right)

3-way active midfield DSP monitor with two 12" woofers. The 8300-601 GLM™ control software package is included with the purchase of 2 units. Vertical orientation, ports right.
$19,702.00 Free Shipping
Found a better price? We'll match it.

Orientation

SKU: 1234ACM-VR
Special Order
Our specialists procure special orders 1.19x faster than the industry average. Most orders arrive within 1-2 weeks.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
Track Your
Order
2-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
2-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

The Genelec 1234AC is a center-channel variant of the 1234A main monitor system, designed for large multichannel installations in film dubbing stages and immersive audio facilities. Featuring dual 305 mm bass drivers, 125 mm midrange, and 25 mm tweeter with 2150W from a remote RAM-XL amplifier, it delivers 125 dB of output with extension to 29 Hz. Available in VL, VR, HU, and HD orientation variants for flexible screen-adjacent installation.

Mounting Orientation

This unit ships with the DCW (Directivity Control Waveguide) factory pre-rotated for vertical mounting with bass drivers to the right of the DCW installation. The 1234AC is designed for flush mounting in either vertical or horizontal configuration. The midrange and treble drivers are always aligned vertically with the tweeter on top for optimal stereo symmetry, regardless of enclosure orientation. Order the orientation matching your installation to avoid on-site DCW rotation.

Specifications

  • Type: 3-way SAM center main monitor (remote amplifier)
  • Bass drivers: 2x 305 mm (12")
  • Midrange: 125 mm (5")
  • Tweeter: 25 mm (1")
  • Amplifier power: 2150W total (RAM-XL)
  • Frequency range: 29 Hz - 21 kHz (-6 dB)
  • Max SPL: 125 dB @ 1 m
  • Inputs: XLR analog, AES/EBU digital, 2x RJ45 (GLM)

Dimensions

  • Dimensions (H x W x D): 19.3 x 47.6 x 16.2 in (489 x 1210 x 412 mm)
  • Weight: 79.5 kg / 175.3 lb

In the Box

  • Genelec 1234AC monitor cabinet
  • RAM-XL amplifier module
  • Cabling and mounting hardware
  • Installation manual
