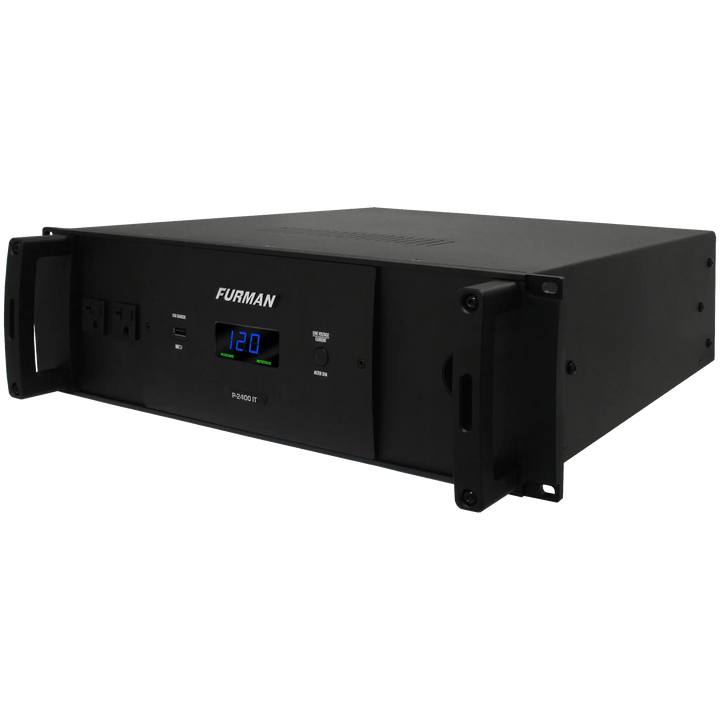

20A Balanced Power Isolation Transformer with SMP/LiFT/EVS

The Furman P-2400 IT is Furman's flagship 20-amp symmetrically balanced power conditioner, delivering an extraordinary level of AC noise isolation alongside the company's complete protection stack of LiFT, SMP, and EVS. The symmetrical balanced power topology provides galvanic isolation from the power grid, eliminating ground loops and dramatically reducing common-mode noise — a measurable, audible improvement in recording environments and mastering studios. With 14 outlets and 20A capacity, the P-2400 IT is the definitive power solution for high-end studio facilities and critical listening environments.

Symmetrically Balanced Power

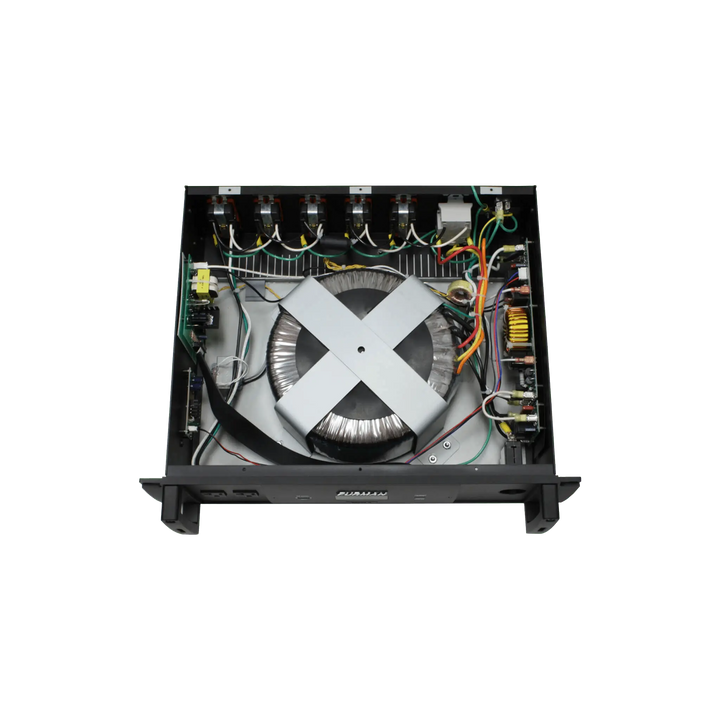

• Isolation transformer: Provides galvanic isolation from the AC power grid, breaking ground loops at the source and eliminating the noise they inject into audio systems.
• Common-mode noise rejection: Balanced topology dramatically reduces common-mode line noise — the type that creates hum and hash in sensitive recording and mastering equipment.
• 10 dB or greater noise reduction: Measurable improvement in noise floor reported by engineers in real-world studio environments.

Full Protection Suite

• Linear Filtering Technology (LiFT): Eliminates differential-mode AC line noise for clean, quiet power at every outlet.
• Series Multi-Stage Protection (SMP): Multi-stage surge suppression handles severe transients without sacrificing the unit.
• Extreme Voltage Shutdown (EVS): Automatically removes power under sustained overvoltage conditions.

Specifications

• Maximum Output Current: 20A

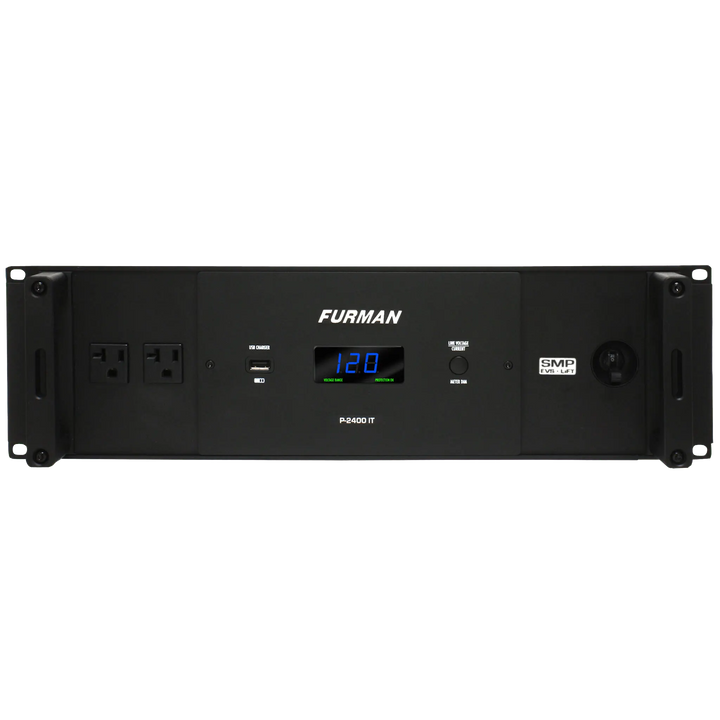

• Outlets: 12 x Rear (20A), 2 x Front (20A)
• Operating Voltage: 90–139 VAC (20A receptacle required)
• Over-Voltage Shutdown: 140 VAC nominal
• Line Cord: 12 AWG × 3, 10 ft., NEMA 5-20 plug
• Dimensions: 19" W × 14" D × 5.25" H (3U)
• Weight: 90 lbs.
