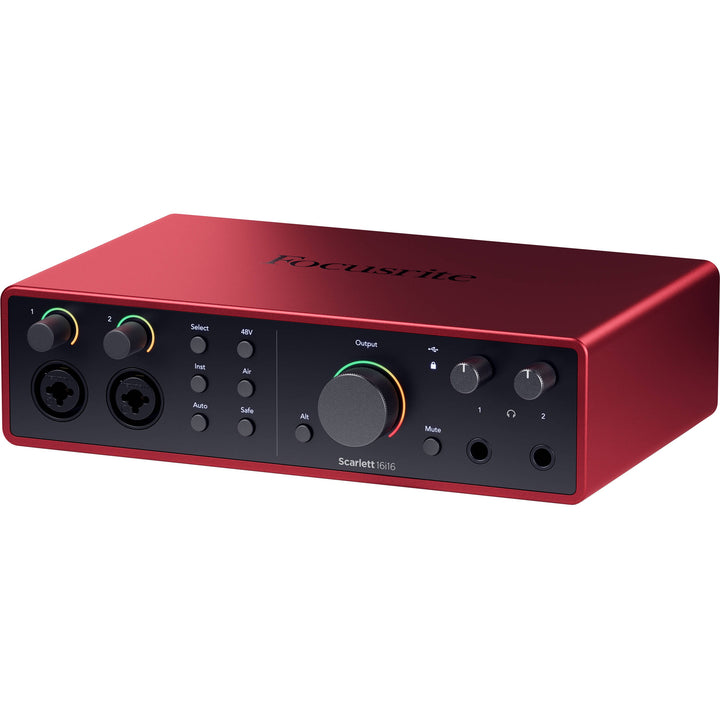

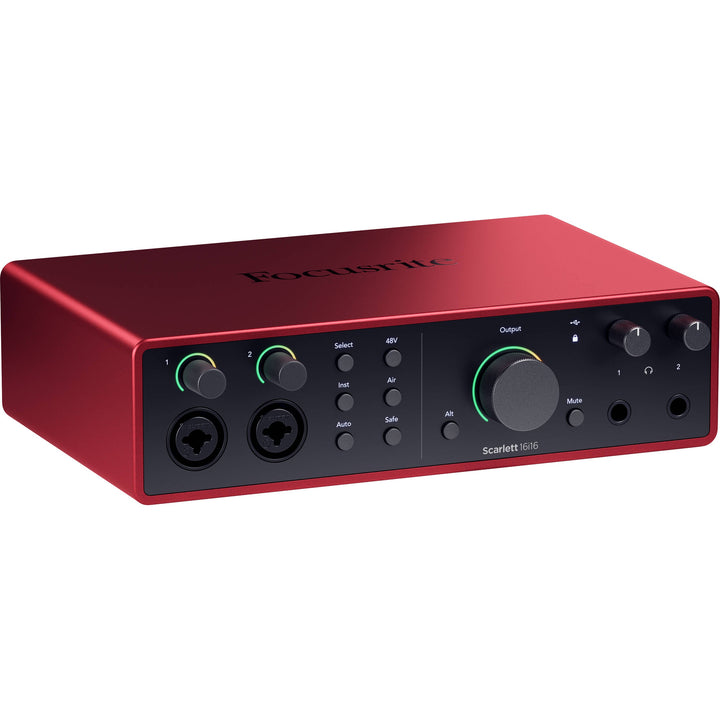

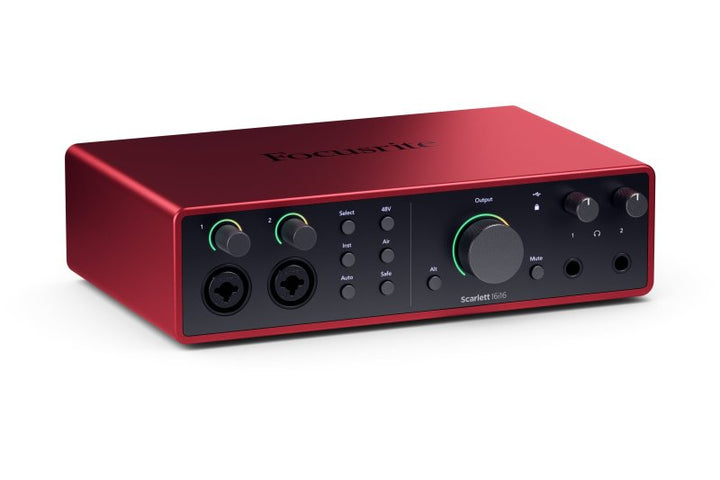

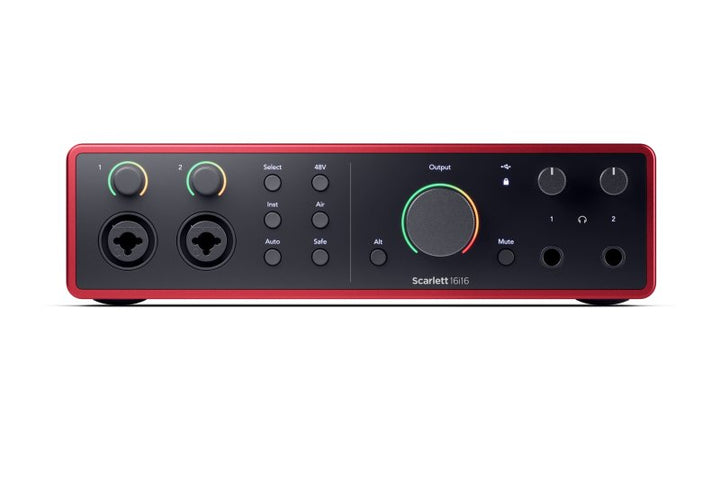

Focusrite Scarlett 16i16 4th Gen Audio Interface

The Focusrite Scarlett 16i16 4th Gen is a 16-in, 16-out USB-C audio interface that combines two 4th Gen mic preamps with extensive analog and digital I/O. It uses converters from Focusrite's flagship RedNet range, delivering a 122dB dynamic range at up to 24-bit/192kHz. ADAT and S/PDIF connectivity let you expand your channel count by up to ten additional inputs and outputs.

Monitoring and Recording

Two independent headphone outputs and A/B speaker switching make the 16i16 well suited for project studios where you need flexible monitoring. Auto Gain handles up to two microphones at once, Clip Safe protects against unexpected peaks, and Air mode (Presence and Harmonic Drive) adds analog console character to your preamps.

Analog Connectivity

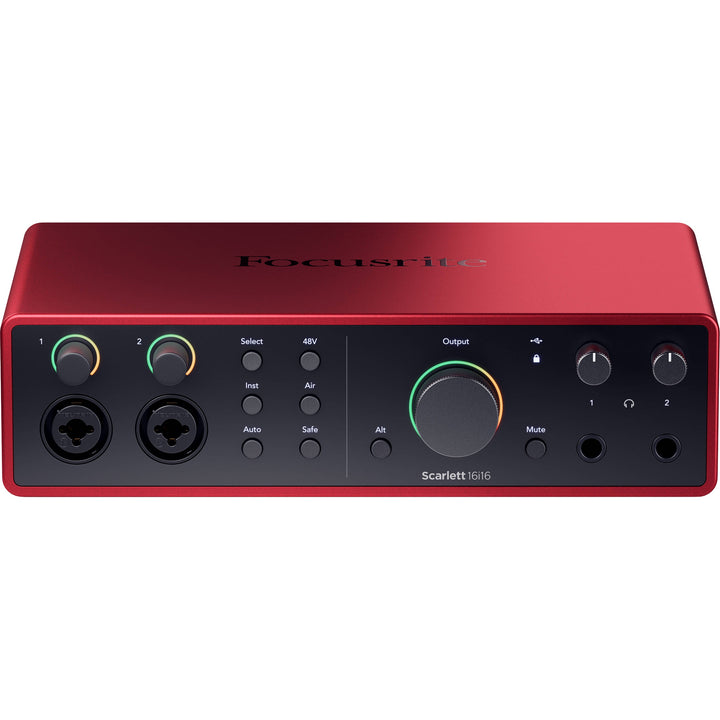

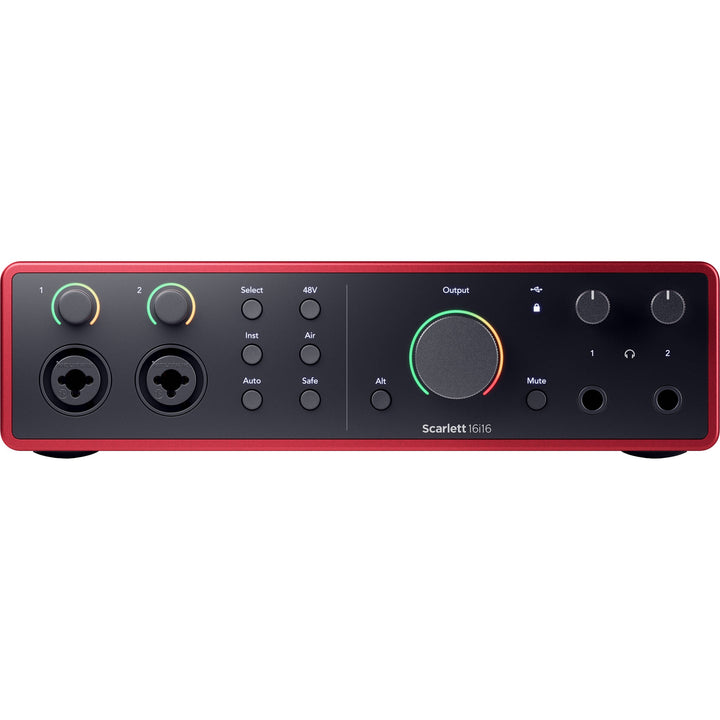

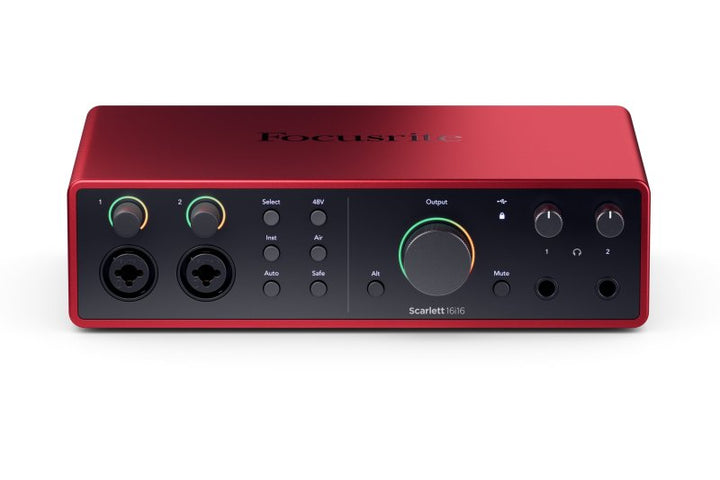

• 2 front-panel Neutrik combo XLR/1/4" inputs (mic, line, or Hi-Z instrument) with independent 48V phantom power

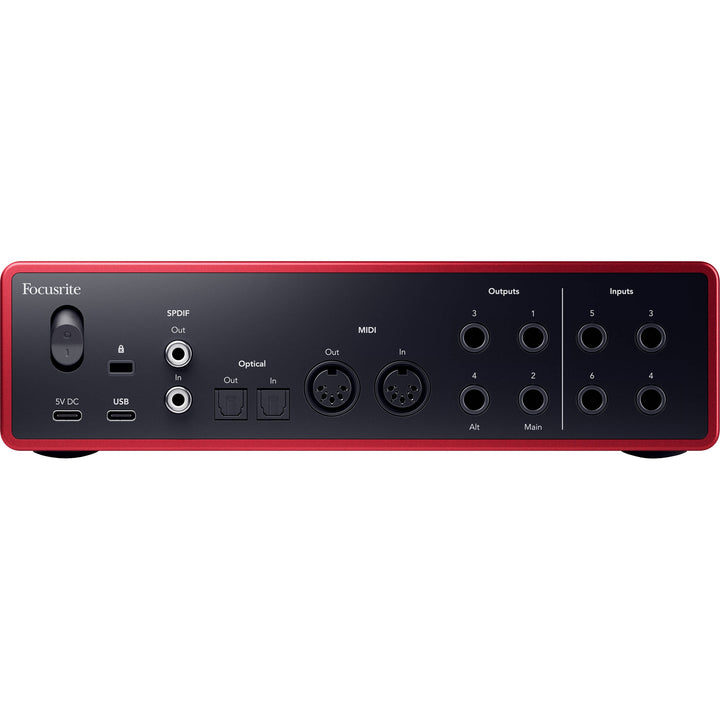

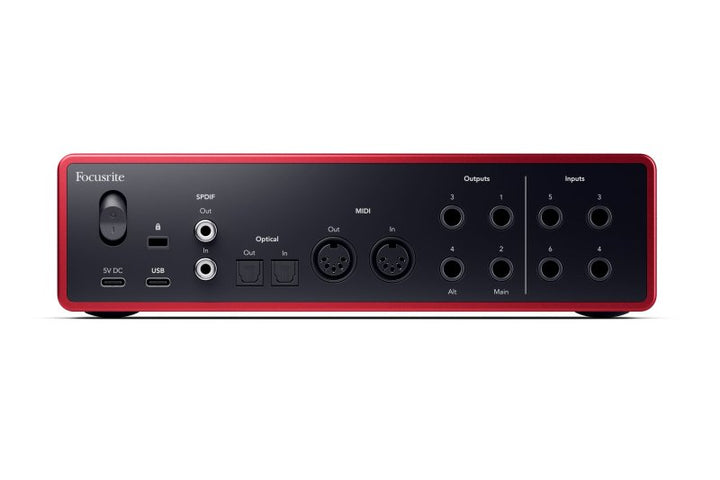

• 4 rear-panel 1/4" TRS line inputs
• 4 rear-panel balanced 1/4" TRS line outputs
• 2 front-panel 1/4" headphone outputs (independent mixes)

Digital Connectivity

• ADAT optical In and Out (TOSLINK): 8 channels at 44.1/48kHz, 4 channels at 88.2/96kHz
• S/PDIF In and Out (coaxial RCA): 2 channels
• MIDI In and Out (5-pin DIN)
• USB-C (USB 2.0, bus powered at 3A)

Key Features

• 24-bit/192kHz conversion with 122dB dynamic range (D-A)
• 69dB mic preamp gain range
• Air Presence and Harmonic Drive modes
• Auto Gain and Clip Safe
• A/B speaker switching
• Simultaneous I/O: 18 x 18 (including Loopback)
• Focusrite Control 2 with mobile remote control (iOS/Android)

Included Software

• Pro Tools Intro+
• Ableton Live Lite
• Cubase LE
• Hitmaker Expansion bundle (instruments, effects, samples)

What's in the Box

• Scarlett 16i16 audio interface
• 1.5m USB-C to USB-C cable
• USB-C to USB-A adaptor
• External power supply (USB-C, 5V, 3A, 15W)
