Description

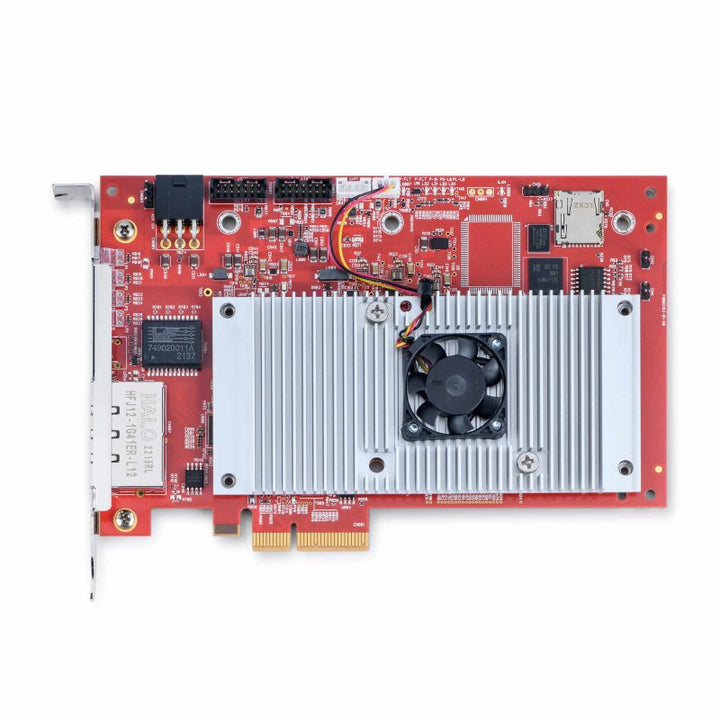

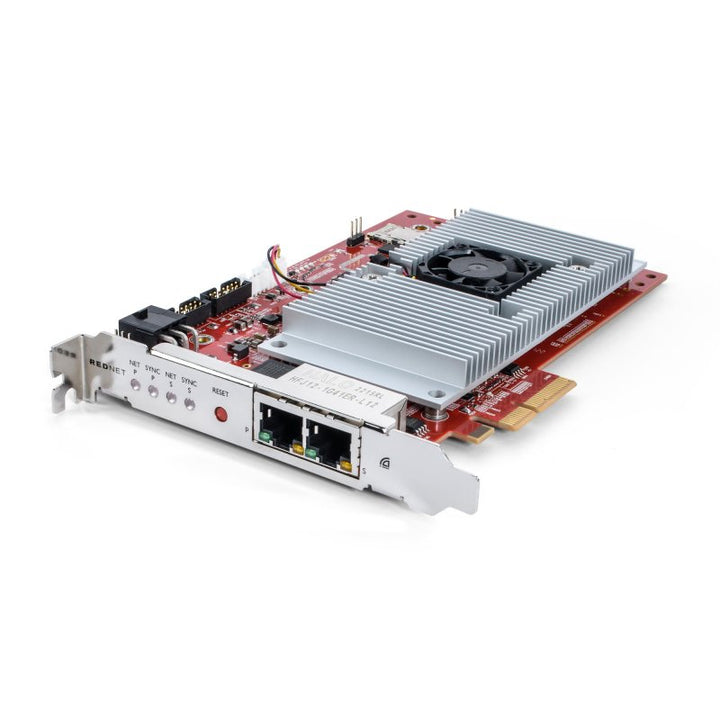

The Focusrite RedNet PCIeNX is a high-channel-count PCIe Dante interface card delivering 128x128 audio channels at sample rates up to 192kHz, with ultra-low round-trip latency. Designed for immersive audio production in formats like Dolby Atmos, it installs in a standard PCIe slot or Thunderbolt expansion chassis.
Expandability and Standards
An optional paid upgrade through Audinate's Dante Activator doubles the channel count to 256x256 at sample rates up to 96kHz. At 176.4kHz and 192kHz, the channel count remains 128x128. RedNet PCIeNX supports AES67, Dante Domain Manager, and is SMPTE ST 2110 compliant, making it suitable for broadcast and post-production environments alongside music production.
Connectivity
- 2 x Ethernet RJ45 ports (Cat 5e or above)
- Switched or redundant network mode
- Integrated network interface for single-cable audio and control
Specifications
- Channel count: 128x128 at all sample rates (out of the box)
- Optional upgrade: 256x256 at up to 96kHz
- Sample rates: 44.1, 48, 88.2, 96, 176.4, 192kHz at 24-bit
- Driver support: ASIO and WDM (Windows), CoreAudio (Mac)
- Apple Silicon compatible
- AES67 and SMPTE ST 2110 compliant (DDM required for ST 2110)
- Card size: full height, half width
- PCIe slot: 4x to 16x
- Power: PCIe bus powered
- Max operating temperature: 50C / 122F (internal chassis)

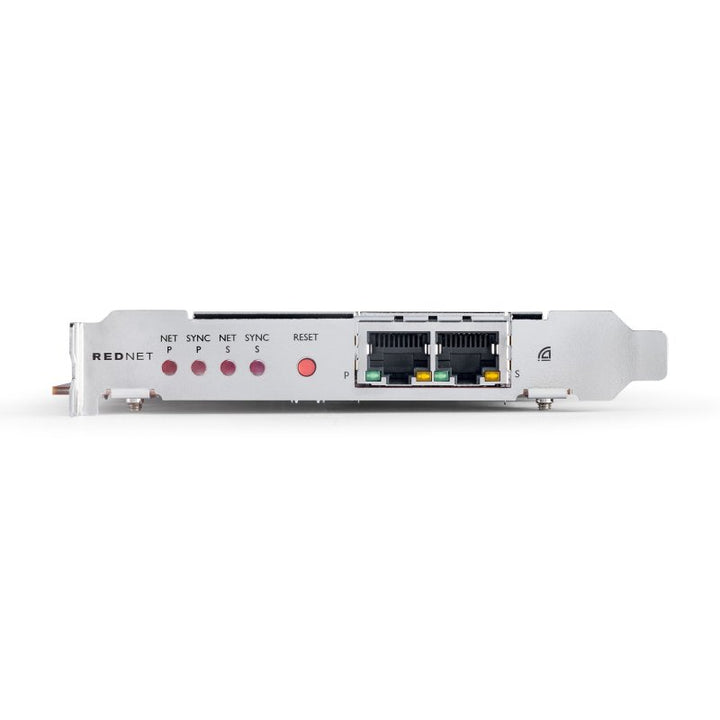

Front Panel Indicators
- 2 x Network Active LEDs (Primary / Secondary)
- 2 x Network Lock LEDs (Primary / Secondary)
- 1 x Factory Reset button
