Description
The Focusrite RedNet HD32R is a 1U rackmount Dante interface that connects Pro Tools | HD systems directly to any Dante audio-over-IP network. It provides 32 bidirectional channels at sample rates up to 96kHz, reducing to 16x16 at 176.4kHz and 192kHz.
Pro Tools Integration
HD32R connects to Pro Tools via standard Mini DigiLink ports and supports Pro Tools | HDX, HD Native, HD Native Thunderbolt, and legacy HD TDM systems. Up to six HD32R units can be used with a Pro Tools | HDX system, and three with Pro Tools | HD, to reach the maximum channel count. Loop Sync I/O enables seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD. Dual etherCON network ports and dual internal power supplies ensure full redundancy with automatic failover.

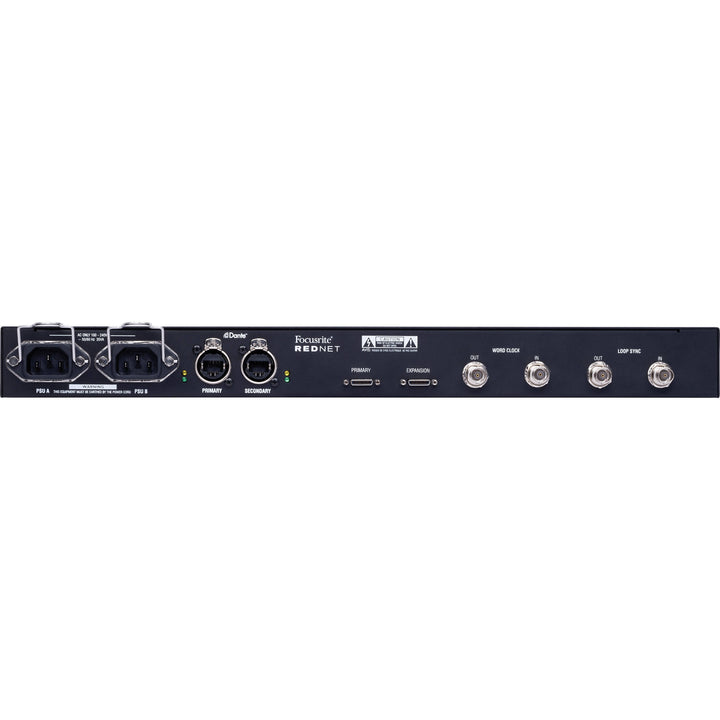

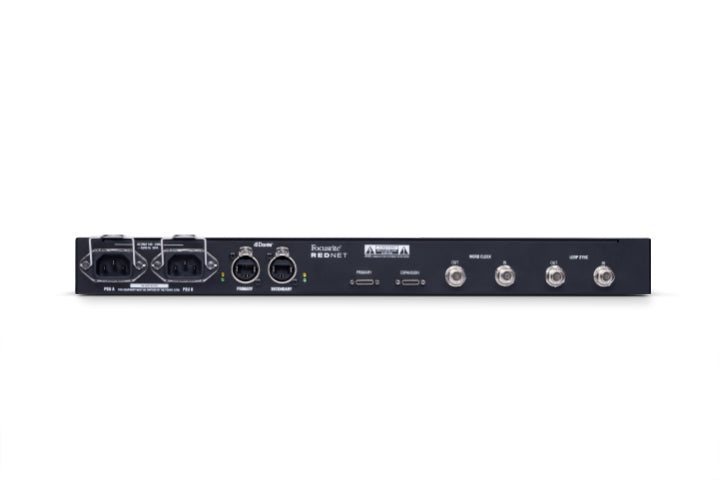

Connectivity
- 1 x Primary Mini DigiLink port
- 1 x Expansion Mini DigiLink port
- 2 x etherCON Dante ports (redundant or switched mode, compatible with standard RJ45)
- Word Clock input on BNC (switchable 75 ohm termination)
- Word Clock output on BNC
- Loop Sync input on BNC
- Loop Sync output on BNC
- 2 x IEC power inlets with retaining clips (dual redundant PSUs)
Specifications
- Channel count: 32x32 at up to 96kHz, 16x16 at 176.4 and 192kHz
- Supported sample rates: 44.1 to 192kHz at 24-bit
- Clock sources: internal, Word Clock, Loop Sync (leader or follower), Dante network
- Supported systems: Pro Tools | HDX, HD Native, HD Native Thunderbolt, HD TDM
- Max units per system: 6 (HDX), 3 (HD Native / HD)
- Form factor: 1U rackmount
- Power: 2 x internal PSU, 100-240V, 50/60Hz, 30VA
