Description

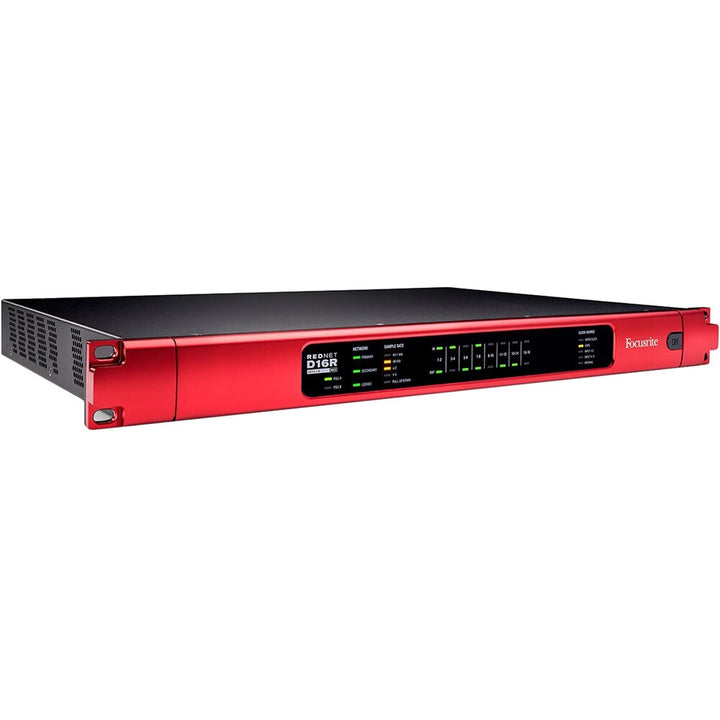

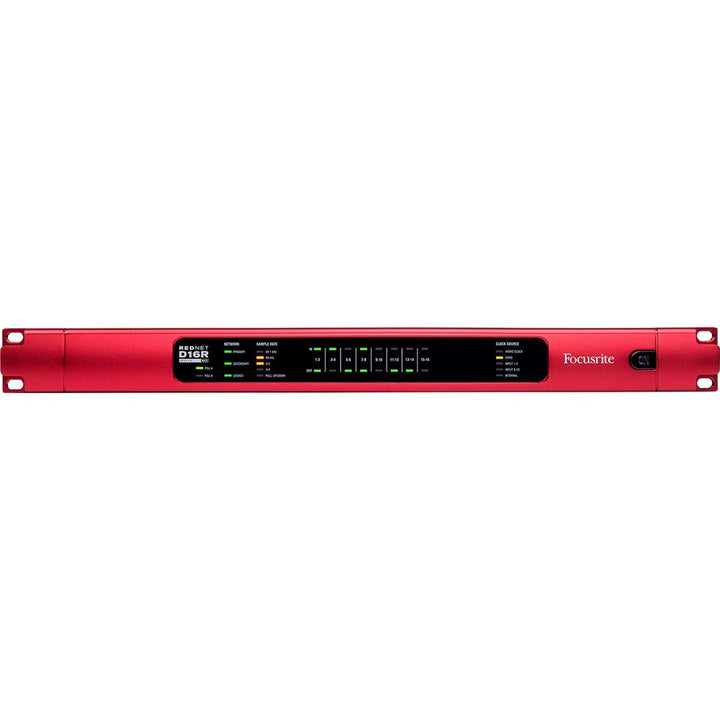

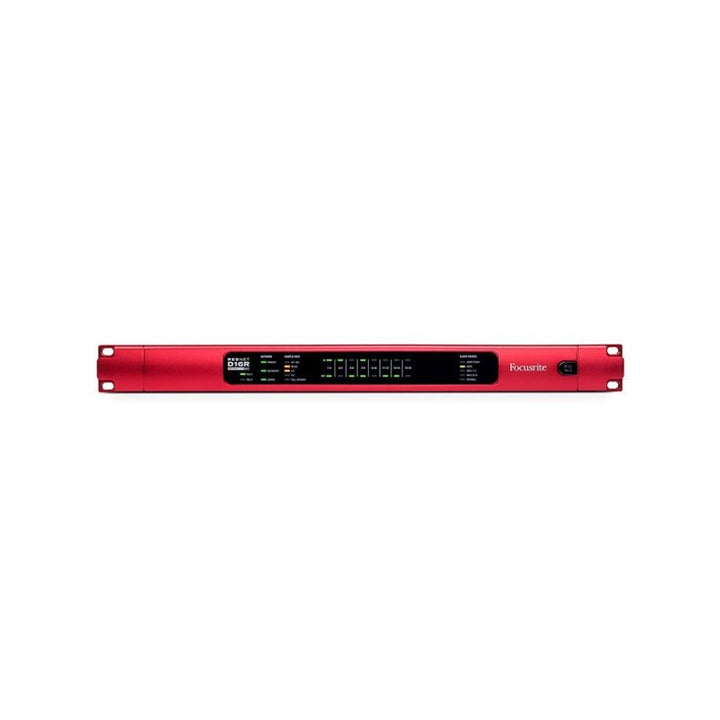

The Focusrite RedNet D16R MkII is a 1U rackmount, 16-channel bidirectional AES3 interface for Dante audio networks. It bridges digital consoles, power amplifiers, and other AES3-equipped equipment with any Dante system, featuring sample rate conversion on every input for instant operation with any AES3 source.
Remote Control and Redundancy
The MkII adds individual input and output channel level controls accessible through RedNet Control software, allowing precise calibration of all levels. Dual etherCON network ports and dual internal power supplies provide full redundancy with automatic failover for critical-path deployments.

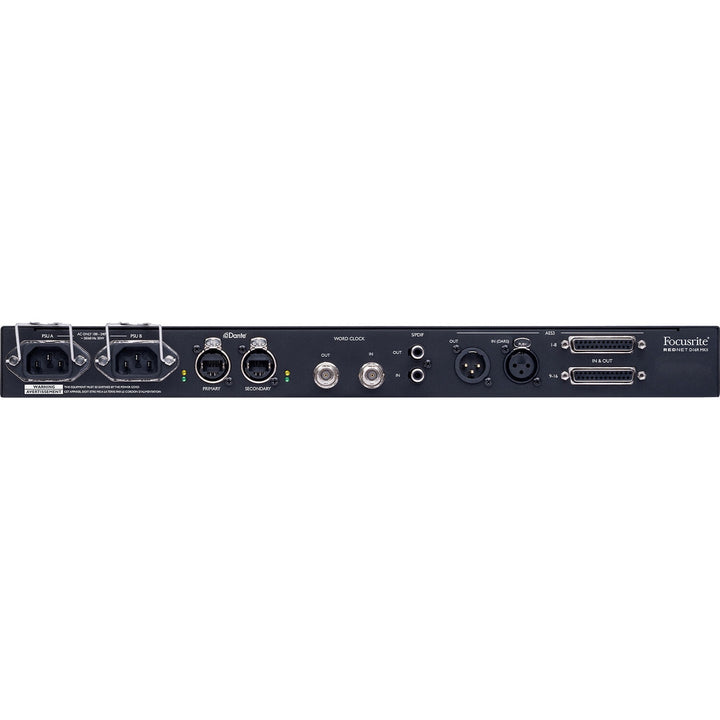

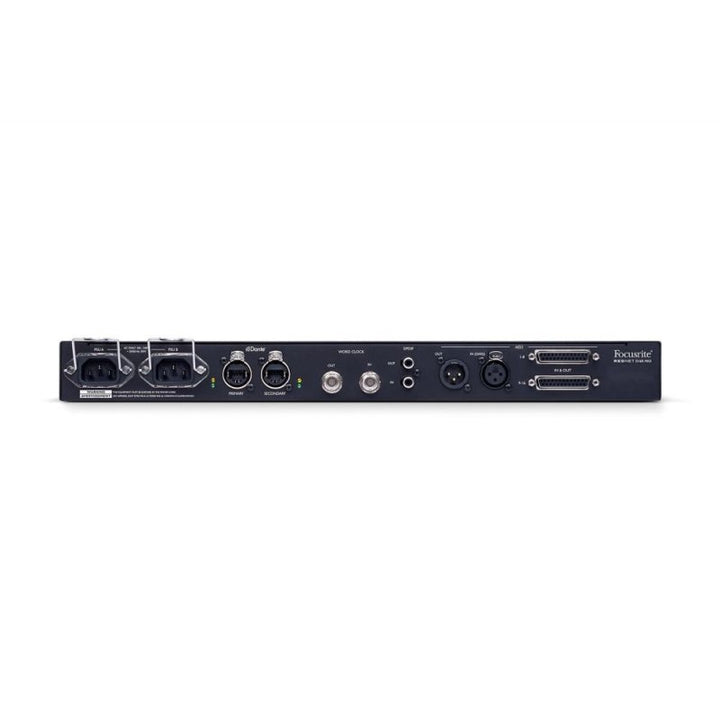

Connectivity
- 16 x 16 AES3 channels on 2 x DB25 (AES59 Combined Digital I/O)
- 1 x female XLR input (replaces DB25 channels 1-2, also accepts DARS)
- 1 x male XLR output (duplicates DB25 channels 1-2)
- S/PDIF input on RCA (replaces DB25 channels 3-4)
- S/PDIF output on RCA (switchable, duplicates any DB25 channel pair)
- Word Clock input on BNC (switchable 75 ohm termination)
- Word Clock output on BNC
- 2 x etherCON Dante ports (redundant or switched mode, compatible with standard RJ45)
- 2 x IEC power inlets with retaining clips (dual redundant PSUs)
Specifications
- Dynamic range: greater than 138dB (-60dBFS method)
- THD+N: less than -130dB (0.00003%)
- Per-channel level trim via RedNet Control software
- Sample rate conversion on all inputs
- Sample rate lock range: 32 to 216kHz
- Supported sample rates: 44.1 to 192kHz at 24-bit
- Clock sources: internal, Word Clock, DARS, AES input 1-2, AES input 9-10, Dante network
- Latency: 11 to 45 samples (network and input sample rate dependent)
- AES67 compliant
- Form factor: 1U rackmount
- Power: 2 x internal PSU, 100-240V, 50/60Hz, 30VA
