Description

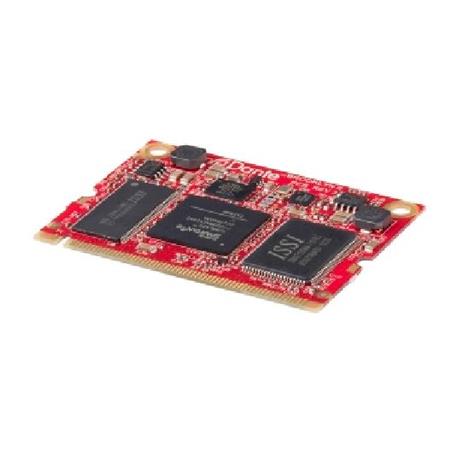

The Focusrite RedNet Brooklyn II Upgrade Card (BK2U) is a Dante networking module in a mini-PCI form factor, designed to add Dante audio connectivity to compatible audio equipment. A single Brooklyn II card provides a complete, ready-to-use Dante interface with up to 64x64 bidirectional audio channels at 48kHz.
Development Platform
The card includes an onboard FPGA and MicroBlaze CPU running a Linux environment, supporting custom embedded application development for device control and monitoring. Flexible hardware interfaces (SPI, I2C, RS232, configurable GPIO) and Audinate's development toolkit streamline integration into third-party products.
Features
- Up to 64x64 redundant bidirectional channels at 48kHz
- Full sample rate support (44.1kHz to 192kHz)
- Sub-millisecond latency with +/-1 microsecond synchronization
- Support for 2, 4, 8, or 16 audio channels per TDM
- AES67 RTP compatible
- Audinate glitch-free redundancy
- Device Lock support
- Gigabit Ethernet switch chip support
- Network health, clock, and audio quality monitoring
- Works with standard off-the-shelf network switches
- Interoperable with all Dante-enabled devices
Specifications
- Form factor: mini-PCI module
- Processor: onboard FPGA with MicroBlaze CPU (Linux)
- Interfaces: SPI, I2C, RS232, configurable GPIO
- Firmware: upgradeable via RedNet Control software
