Description

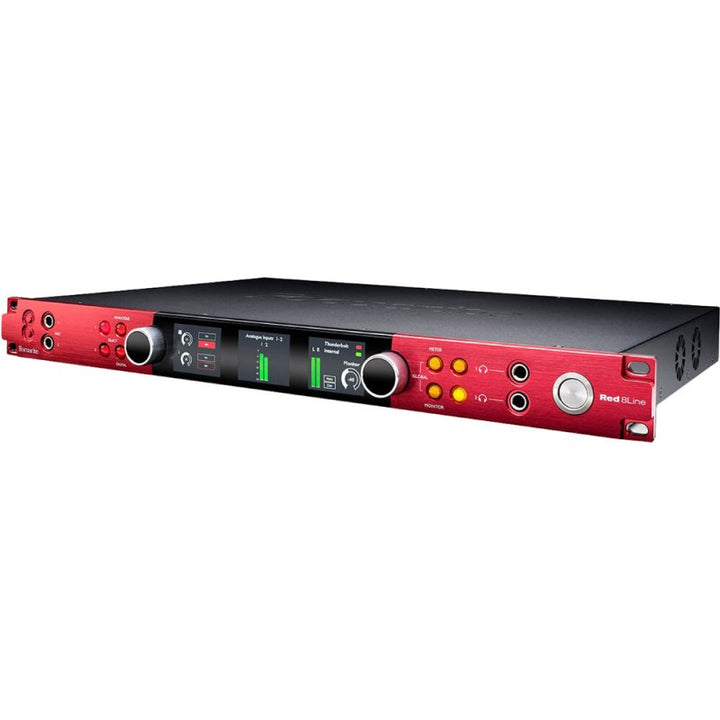

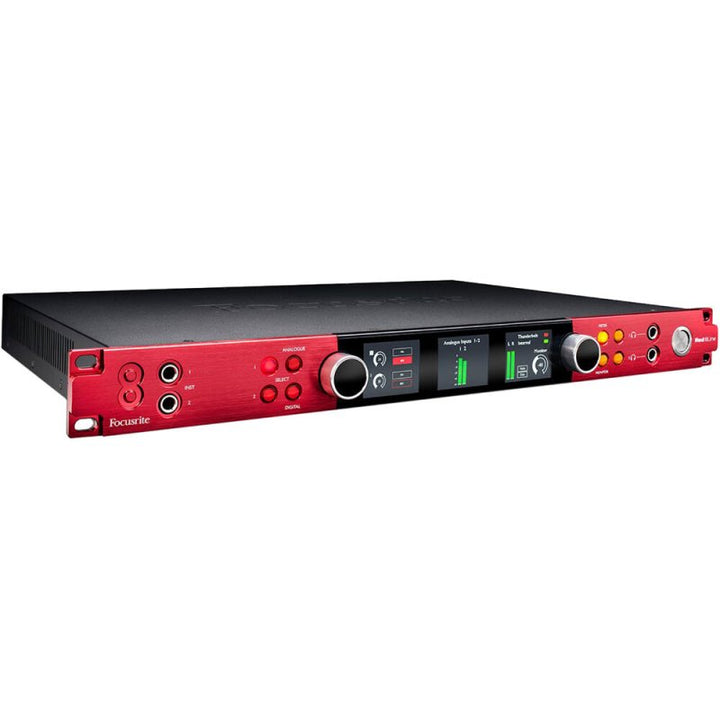

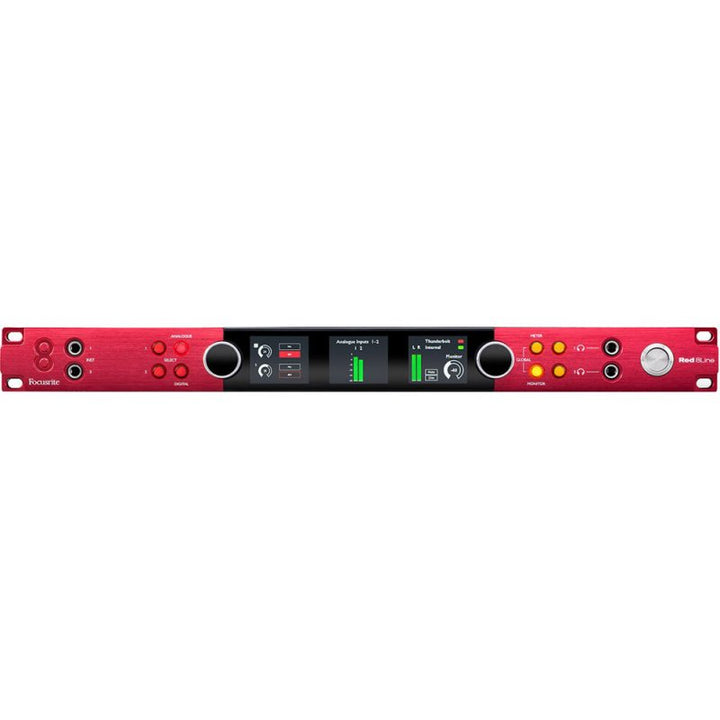

The Focusrite Red 8Line is a 58-input, 64-output Thunderbolt 3 audio interface that connects simultaneously to Pro Tools | HD, Thunderbolt DAWs, and Dante audio networks. It combines two Red Evolution mic preamps, high-performance conversion, and flexible digital I/O in a single 1U rackmount chassis.
Conversion and Preamps
Red 8Line provides professional-grade 24-bit/192kHz A-D and D-A conversion with 119dB dynamic range on the A-D side and 121dB on the D-A side (A-weighted). The two digitally controlled Red Evolution mic preamps deliver up to 63dB of gain with individually switchable phantom power, high-pass filter, phase reverse, and Air mode, which recreates the sonic character of the classic ISA 110 transformer input.
Multi-Host Workflow
Switching between Pro Tools | HD and Thunderbolt host modes is handled directly from the front panel or through RedNet Control software, with no need to reconfigure option cards. Built-in Dante networking enables expansion across standard Ethernet infrastructure alongside any Dante-compatible equipment.

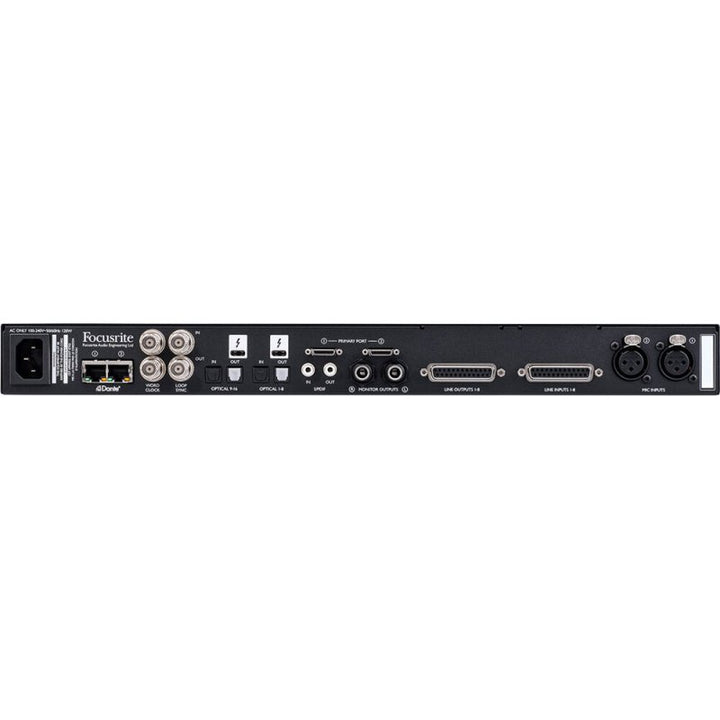

Connectivity
- 2 x Thunderbolt 3 (USB-C) ports for daisy-chaining
- 2 x Mini DigiLink ports for Pro Tools | HD (up to 58 in / 64 out)
- 2 x Dante Ethernet ports (RJ45, Cat 5e or above) for 32x32 network audio
- 8 x balanced line inputs and 8 x balanced line outputs on DB25 (AES59)
- 2 x XLR mic inputs with Red Evolution preamps
- 2 x front-panel 1/4" instrument inputs
- Independent L/R monitor outputs on 1/4" TRS
- 2 x stereo headphone outputs on 1/4" TRS
- 16 channels of ADAT I/O via TOSlink (at 48kHz)
- Stereo S/PDIF I/O on RCA
- Word Clock and Loop Sync I/O on BNC
Specifications
- Total I/O: up to 58 inputs, 64 outputs
- Resolution: 24-bit / 192kHz
- A-D dynamic range: 119dB (A-weighted)
- D-A dynamic range: 121dB (A-weighted)
- Preamp gain: up to 63dB
- Reference levels: +18 or +24dBu (switchable)
- Monitor control: supports configurations up to 7.1.2 (10 channels)
- 3 x front-panel LCD meters
- Form factor: 1U rackmount
- Power: internal, 100-240V AC (IEC)
