Focusrite Red 16Line 64x64 Thunderbolt 3 Audio Interface
Line Channels
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Focusrite Red 16Line is a 64-input, 64-output audio interface with dual Thunderbolt 3 and Pro Tools | HD connectivity, plus 32x32 Dante audio networking. It provides 16 channels of analogue line-level I/O, two Red Evolution mic preamps, and mastering-grade conversion in a 1U rackmount chassis.
Conversion and Preamps
Conversion quality reaches up to 118dB dynamic range A-D and 121dB D-A (A-weighted) at 24-bit/192kHz. The two Red Evolution mic preamps offer up to 63dB of digitally controlled gain with per-channel phantom power, high-pass filter, phase reverse, stereo linking, and Air mode for the classic ISA transformer character.
Multi-Host Workflow
Red 16Line lets you switch between Pro Tools | HD and Thunderbolt host modes from the front panel or RedNet Control software, eliminating the need to swap option cards. With both DigiLink and Thunderbolt connections active alongside Dante, you can run Pro Tools and a second DAW simultaneously while sharing I/O across a Dante network.

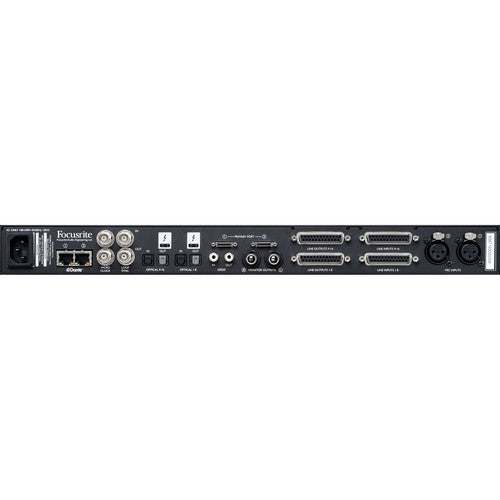

Connectivity
- 2 x Thunderbolt 3 (USB-C) ports for daisy-chaining
- 2 x Mini DigiLink ports for Pro Tools | HD (up to 64 in / 64 out)
- 2 x Dante Ethernet ports (RJ45, Cat 5e or above) for 32x32 network audio
- 16 x balanced line inputs on 2 x DB25 (AES59)
- 16 x balanced line outputs on 2 x DB25 (AES59)
- 2 x XLR mic inputs with Red Evolution preamps
- 2 x front-panel 1/4" instrument inputs
- Independent L/R monitor outputs on 1/4" TRS
- 2 x stereo headphone outputs on 1/4" TRS
- 16 channels of ADAT I/O via TOSlink (at 48kHz)
- Stereo S/PDIF I/O on RCA
- Word Clock and Loop Sync I/O on BNC
Specifications
- Total I/O: up to 64 inputs, 64 outputs
- Resolution: 24-bit / 192kHz
- A-D dynamic range: 118dB (A-weighted)
- D-A dynamic range: 121dB (A-weighted)
- Preamp gain: up to 63dB
- Reference levels: +18 or +24dBu (switchable)
- 16-channel front-panel LCD metering
- Form factor: 1U rackmount
- Power: internal, 100-240V AC (IEC)
