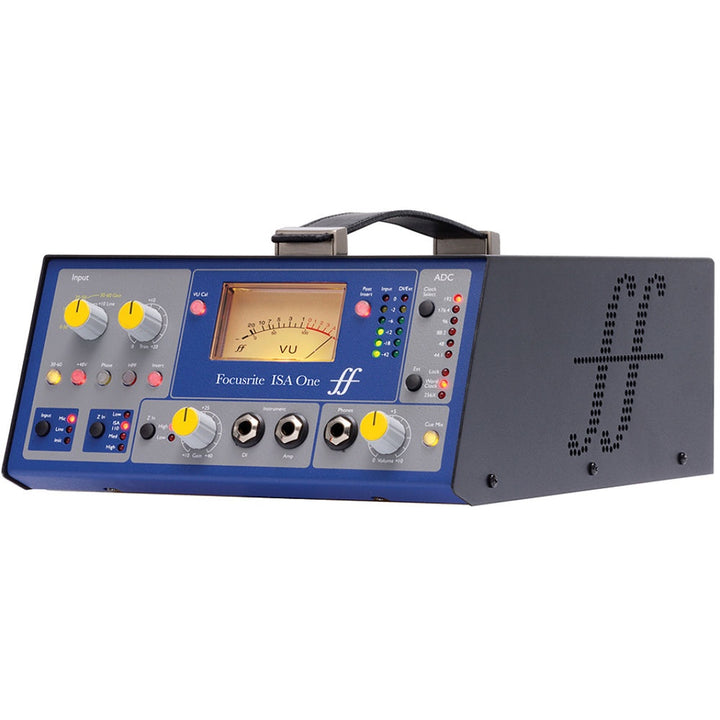

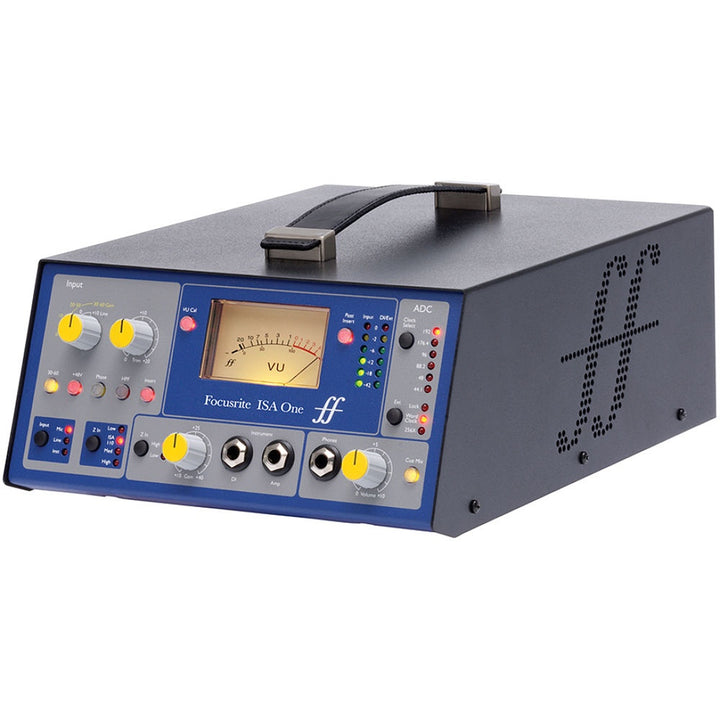

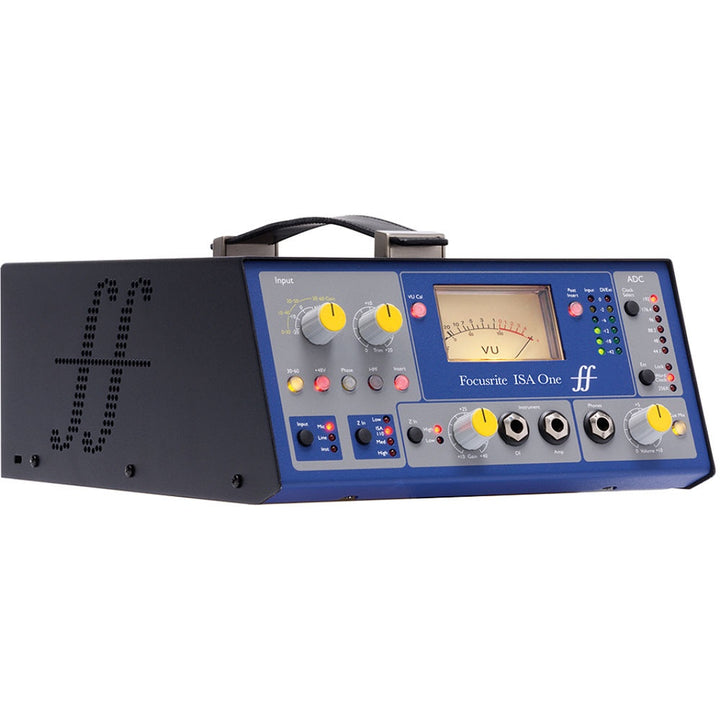

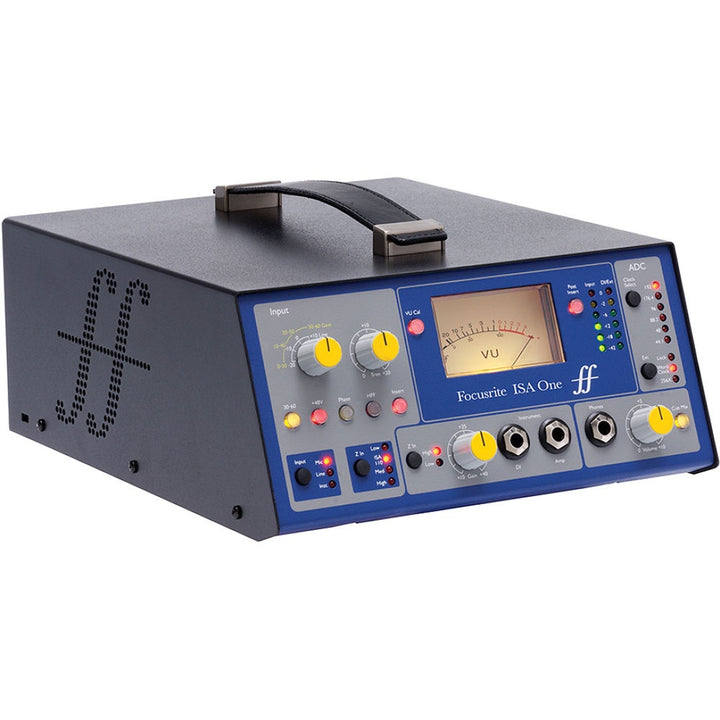

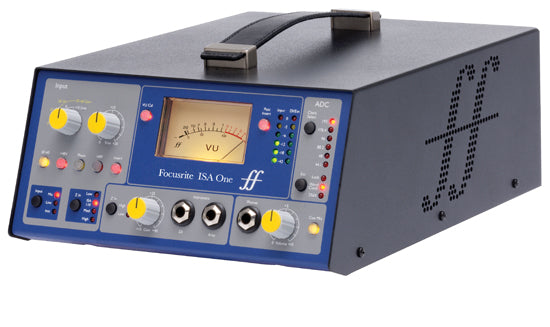

Focusrite ISA One Single-Channel Transformer Mic Preamp
Channels
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

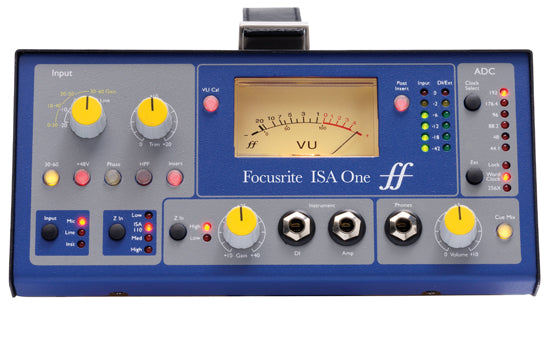

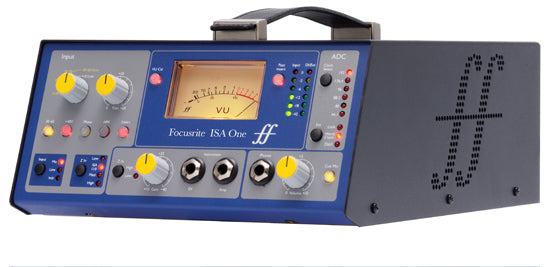

The Focusrite ISA One is a single-channel transformer-based mic preamp built on the circuit topology of the original ISA 110 module from the Focusrite Studio Console, featuring the Lundahl LL1538 input transformer originally specified by Rupert Neve.
Mic Preamp
The mic preamp delivers up to 80dB of gain (60dB in 10dB steps, plus 20dB of variable trim) with an EIN below -123dBu and a frequency response extending from 10Hz to 125kHz. Four-position input impedance switching (600Ω, 1.4kΩ ISA 110, 2.4kΩ, 6.8kΩ) lets you match any microphone for optimal performance, or deliberately mismatch for creative tonal shaping. A switchable 75Hz high-pass filter (18dB/octave) controls low-end rumble.

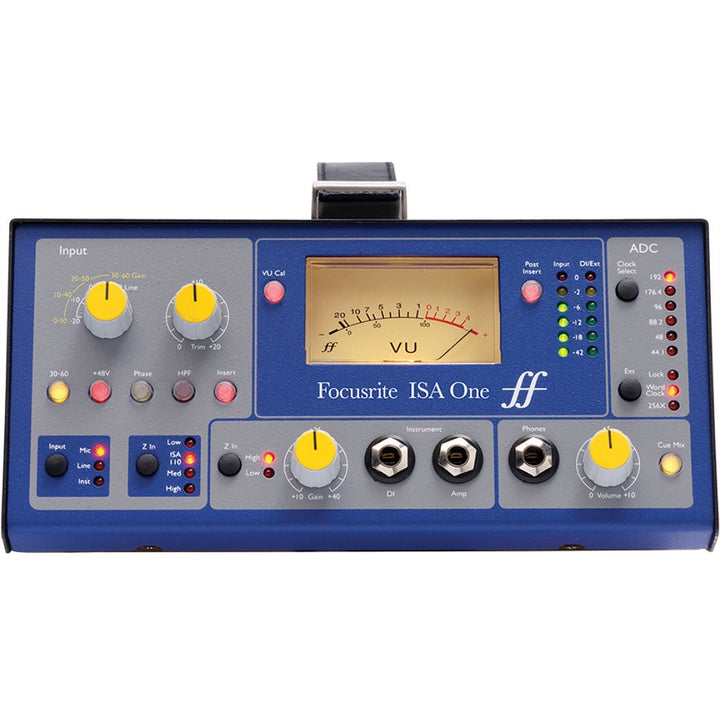

DI Channel and Metering
A fully independent DI channel with its own gain control, switchable impedance (470kΩ or 2.4MΩ), and dedicated rear-panel XLR output runs alongside the mic preamp. The DI includes an amp output for re-amping workflows. A classic VU meter and 8-segment LED metering provide clear level monitoring. The rear panel accepts the optional ISA ADN2 card for 24-bit/192kHz digital output with Dante, AES3, ADAT, and S/PDIF connectivity.

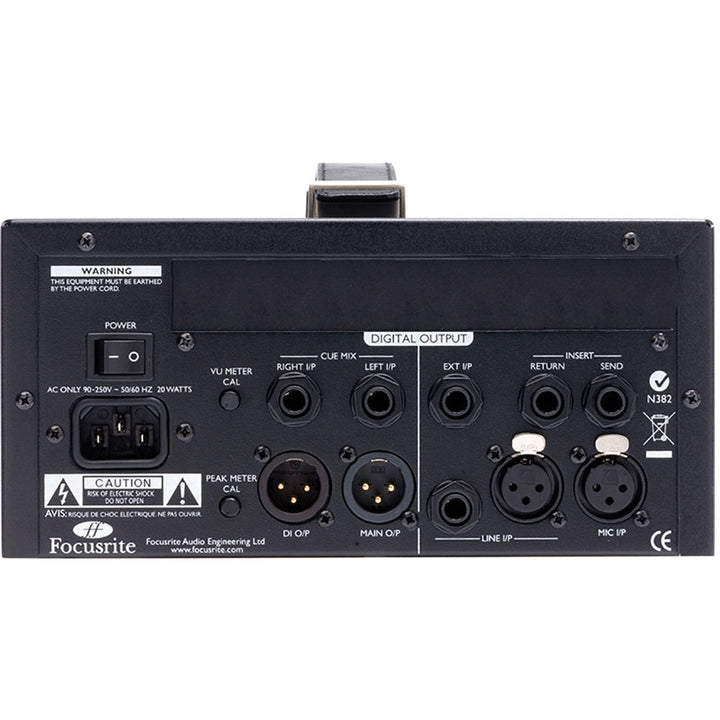

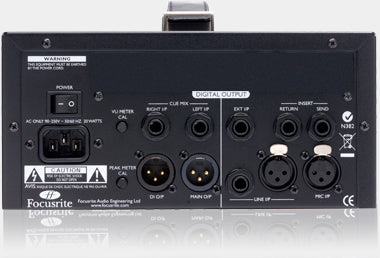

Connectivity
- 1 x XLR mic input (rear panel)
- 1 x XLR line input (rear panel)
- 1 x 1/4" instrument input (front panel)
- 1 x 1/4" amp output (front panel, for re-amping)
- 1 x XLR main output
- 1 x XLR DI output
- 2 x 1/4" cue mix inputs (L/R)
- 1 x 1/4" headphone output
- Optional ISA ADN2 digital card slot
Specifications
- Mic gain range: 0 to 60dB (10dB steps) + 20dB trim
- Mic input impedance: 600Ω, 1.4kΩ (ISA 110), 2.4kΩ, 6.8kΩ
- Mic EIN: <-123dBu (A-weighted)
- Signal-to-noise ratio: 122dB (A-weighted)
- Mic frequency response: 10Hz to 125kHz
- Instrument gain: +10 to +40dB (continuous)
- Instrument impedance: 470kΩ (Low), 2.4MΩ (High)
- High-pass filter: 75Hz, 18dB/octave
- Phantom power: +48V
- Max output level: +24dBu
- Dimensions: 8.66" x 4.1" x 11.4" (desktop chassis)
- Weight: 8.6 lbs (3.9 kg)
- Power: Internal PSU, 100-240V AC
