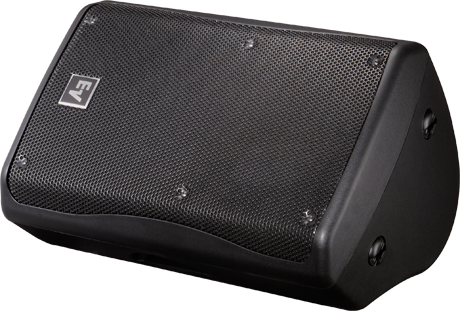

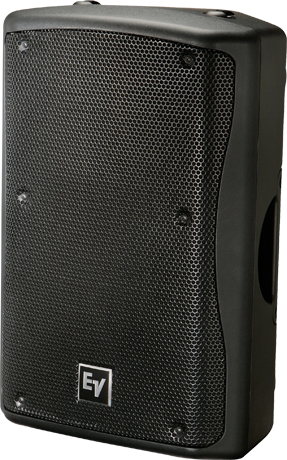

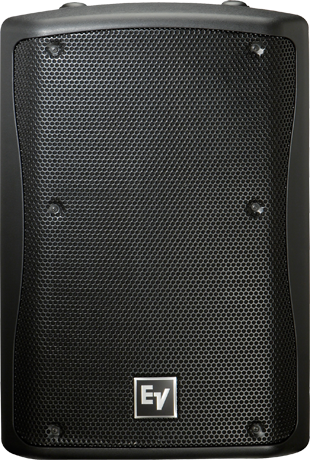

The Electro-Voice ZX3-90PI is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 90x50° coverage angle, for wider coverage or shorter distances. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil.
The ZX3-90PI cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.
Features
- Versatile performance for mains, fills, or monitors
- DVX3121A woofer with forced-air cooling
- 2-inch ND2 titanium/neodymium HF driver
- Passive crossover
- Choice of 90º x 50º or 60º x 60º coverage horn
- High sensitivity, 131 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Up to four anchor-plate attachments
- M8 mounting inserts (7)
- Integrated handle
- Available in black and white
Specifications
| Frequency Range (-10 dB) | 48 - 20000 |
| Weatherized | Yes |
| Flying | Yes |
| Minimum Impedance | 6.2 |
| HF Transducer | 2-inch ND2 |
| Speaker Type | Full-Range |
| Woofer Size | 12 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 58 - 15000 |
| Max. SPL/1m (calc)² | 131 |
| Coverage (Nominal -6 dB) H | 90/60 |
| Coverage (Nominal -6 dB) V | 50/60 |
| LF Transducer | 12-inch DVX3121A |
| Power Rating | 2400 |
| System Power Handling (Continuous/Program/Peak) | 600//2400 |
| LF Power Handling | 500 |
| HF Power Handling | 40 |
| Crossover Frequency | 2000 |
| Enclosure Material | High Impact Polystyrene Composite |
| Grille | Polyester Powder Coated, 18GA Galvanized Steel |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | 97 |
| Height | 613 |
| Width | 397 |
| Recommended High-Pass Frequency | 50 |
| Internal Crossover | Yes |
| Depth | 362 |
| Weight Net | 19.8 |
| Family | ZxZxA |
| Input Connections | 2 conductor SJO cable and gland nut |
| Nominal Impedance | 8 |
