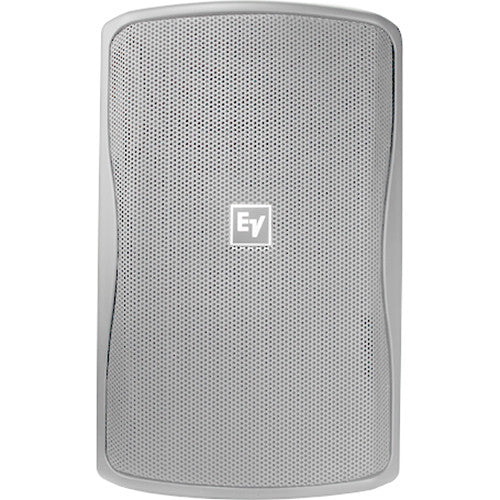

Electro-Voice ZX1I-90TW 8in 2-Way Loudspeaker - 200W - 70/100V- White
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
d
Features
- Patented ASC (Automatic Saturation Compensation)
- Also available in 70/100 volt transformer version
- Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
- EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)
Specifications
| Frequency Response (-3 dB) | 60 Hz - 20 kHz¹ |
| Frequency Range (-10 dB) | 48 Hz - 20 kHz¹ |
| Rec. Hi-pass Frequency | 40 Hz |
| Axial Sensitivity | 94 dB (1W/1m)¹ |
| Max Calculated SPL | 123 dB |
| Coverage (H x V) | 90 x 50 |
| Rated System Power | 200 W Cont.², 400 W Prog., 800 W Peak |
| LF Transducer | EV8L, 203 mm (8 in) Driver |
| HF Transducer | DH2005, 25 mm (1 in) Exit Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| "T" Version Wattage Taps | 70V - 6, 12.5, 25, 50, 100, 8 Ω by p0V - 12.5, 25, 50, 100, 8 Ω bypass |
| Connectors | 4-Pin Phoenix Connector |
| Enclosure Material | ABS resin |
| Suspension | Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket |
| Grille | Polyester Powder Coated, 18GA Galvanized Steel |
| Dimensions (H x W x D) | 451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in) |
| Net Weight | 8.4 kg (18.5 lb) without Transformer 10.4 kg (23.0 lb) with Transformer |
| Shipping Weight | 10.2 kg (22.5 lb) without Transformer 12.3 kg (27.0 lb) with Transformer |
