Description

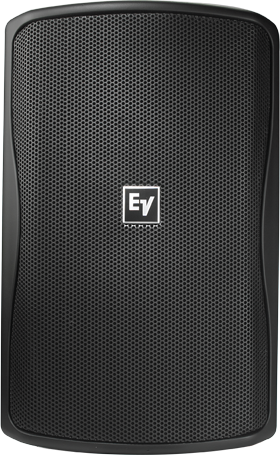

The black Electro-Voice ZX1i-100T is an 8" 2-way weather-resistant passive loudspeaker offering high-performance, full-range sound reinforcement for indoor and outdoor installed applications in arenas, stages, and patios. The ZX1i-100T's 8" woofer and titanium high-frequency compression driver yield a 60 Hz to 20 kHz frequency response, and may be driven by a constant-voltage amplifier without low-frequency saturation thanks to the built-in 100W transformer with ASC (Automatic Saturation Compensation) technology. The high-frequency driver is mounted in a 100 x 100° horn for broad, even dispersion.
The input to the loudspeaker, provided by a removable 4-pin Euroblock connector, is fed to an internal crossover that properly distributes frequencies to the drivers. The lightweight ABS resin cabinet is outfitted with a heavy-duty QuickSAM mounting system, which enables fast and secure installation. With its molded enclosure design, two-layer grille, and IEC 529 and MIL-SPEC-810 ratings, the ZX1i-100T loudspeaker is built to withstand the stress of outdoor use.
Features
- For Indoor/Outdoor Sound Reinforcement
- 8" Woofer, 1.25" Titanium HF Driver
- Internal Crossover & 100W Transformer
- ASC Technology Prevents LF Saturation
- 60 Hz to 20 kHz Frequency Response
- 100 x 100° Coverage Pattern
- Weather-Resistant Design
- 4-Pin Euroblock Connector
- Heavy-Duty Strong-Arm Mounting Bracket
- ABS Resin Cabinet with 2-Layer Grille
Specifications
| Configuration | |
| Enclosure Type | |
| Total Passive Power Handling | |
| Constant Voltage / Transformer Taps | |
| Nominal Impedance |
| LF Driver | |
| HF Driver |
| Frequency Range/Response | |
| Maximum SPL | |
| Speaker Sensitivity | |
| Coverage Angle | |
| Protections |
| Crossover Frequency | |
| EQ & Filters | |
| Dynamic Processing |
| Audio I/O |
| Color | |
| Mounting | |
| Handles | |
| Construction Material | |
| Environmental Resistance | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
