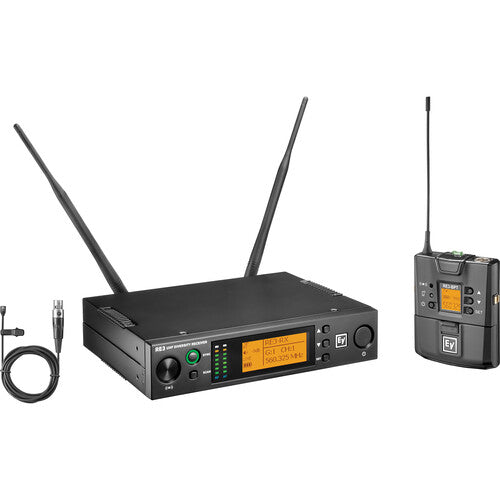

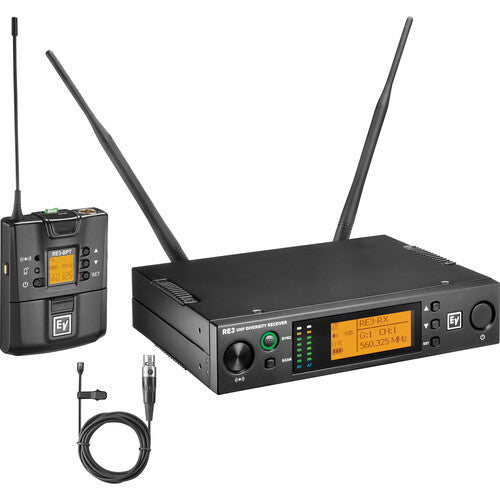

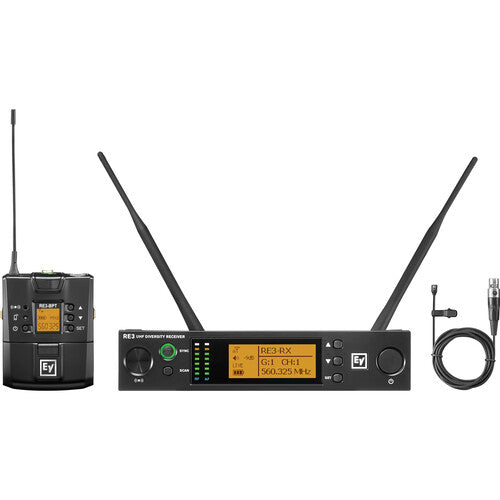

Electro-Voice RE3-BPKRSB-5L Wireless Bodypack System for RSB-2 - 488-524MHz

The RE3-RX is a diversity wireless receiver featuring auto frequency scanning, wireless synchronization to transmitter, balanced XLR output, and unbalanced 1/4" TS output.

The RE3-RX is rackmountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using ultrasonic sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology utilizes two different antennas to minimizes the chance of signal dropouts. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.

Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters.

The RE3-BPTRSB bodypack transmitter is specially wired for use with the RSB-2 Referee Switch Box only

Operates on 2 AA alkaline or rechargeable NiMH batteries for up to 8 hours.

The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable 10/50mW output power assists in overcoming the challenges of both long or short transmission ranges.

The 36 MHz tuning bandwidth provides 1440 frequency tuning options helping to avoid various sources of possible interference.

The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable batteries within two bodypack transmitters to be charged without removal.

Features

• For Use with RSB-2 Referee Switch Only
• Lightweight Metal Bodypack Transmitter
• Rackmountable Diversity Receiver
• 1440 Auto-Scan Frequencies
• Selectable 10/50mW Transmitter RF Power
• XLR Balanced and 1/4" Unbalanced Outputs
• Easy-to-Read LCD display
• 8-Hour AA Batteries
