Description

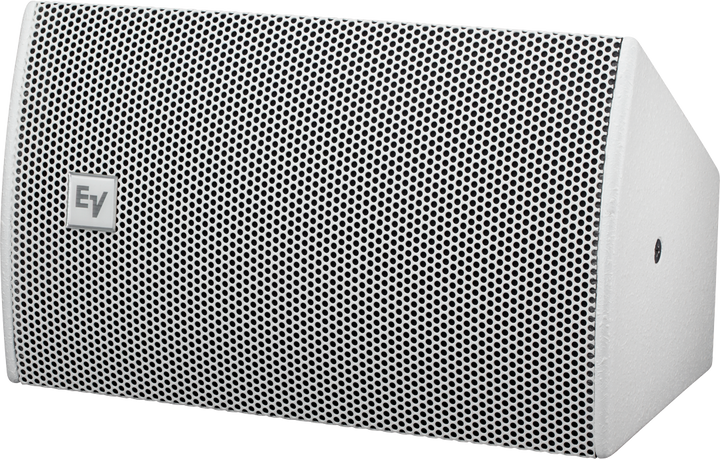

The white EVU1082/95 Single 8" Two-Way 90 x 50 Full-Range Loudspeaker System from Electro-Voice is a compact loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to walls and ceilings while providing optimal coverage patterns. This design was optimized for wall, stage lip and under balcony applications.
The system incorporates the ICT-1-8, a high-output 1.3” diaphragm titanium compression driver coupled to a Constant Directivity 90 x 50° rotatable waveguide. The ICT-8-8 woofer is developed using FEA optimization to provide the high sensitivity while achieving the maximum level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability.
The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint, available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full 330° unobstructed rotation of the loudspeaker if the transformer kit (not included) is installed.
Features
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm I compression driver
- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 10 x 16 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 175 W continuous
- 123 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
Specifications
| Frequency Range (-10 dB) | 65 - 20000 |
| Suspension | (6) M8 threaded points |
| Weatherized | No |
| Minimum Impedance | 6 |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 110 - 16000 |
| Max. SPL/1m (calc)² | 123 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 50 |
| LF Transducer | One 8-inch (203 mm) ICT-8-8 woofer |
| System Power Handling (Continuous/Program/Peak) | 175//700 |
| Power Rating | 700 |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Enclosure Material | 9-ply hardwood plywood |
| Grille | 18-gauge steel with cloth behind |
| Available Color | Black or white |
| Height | 247 |
| Width | 409 |
| Recommended High-Pass Frequency | 90 |
| Depth | 237 |
| Weight Net | 7.4 |
| Shipping Weight | 10.3 |
| Finish | Textured paint |
| Nominal Impedance | 8 |
| Waveguide | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95 |
| Passive Power Handling | 700 |
