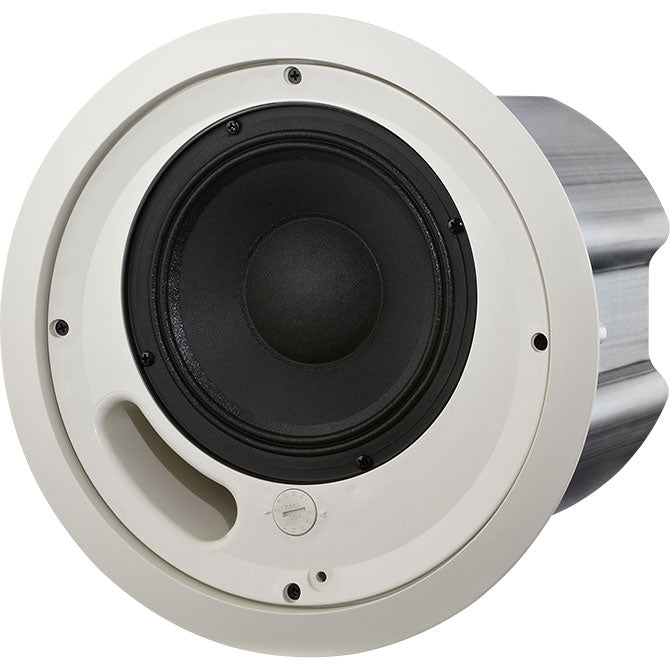

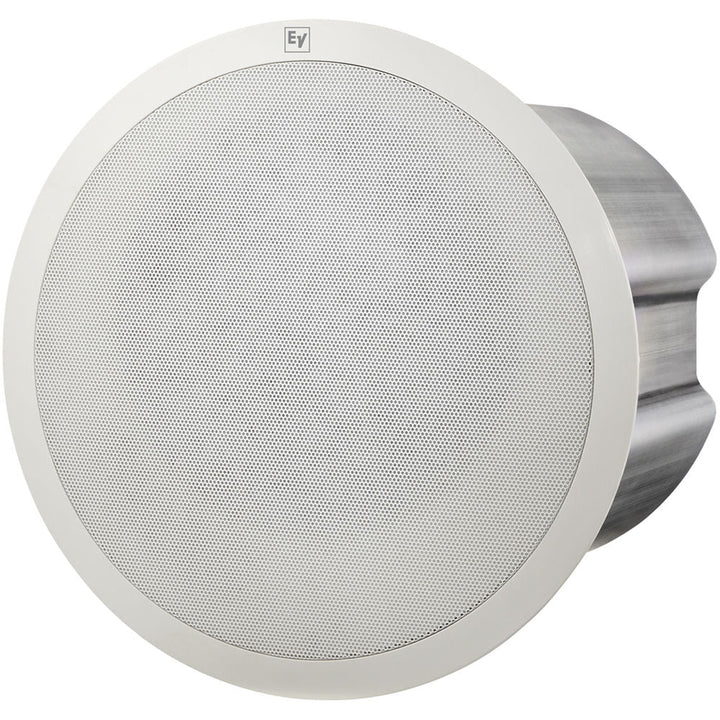

Electro-Voice EVID-PC8.2 6.5in 2-Way Ceiling Speaker (Pair) - 8Ω/70/100V - White
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
- High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
- High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
- Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
- Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
- Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480, and 2043 standards.
8" 2-way ceiling speaker
The PC8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.
The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120˚ / 105˚) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.
- Weatherized: No
- HF Transducer: 35 mm compression driver
- Frequency Range (-10 dB)¹: 40 - 20kHz
- Max. SPL/1m (calc)²: 108 db avg, 114 pk
- LF Transducer: 200 mm (8 in)
- Power Rating: 200
- HF Power Handling: 200W program, 100W pink noise
- Connector Type: Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
- Enclosure Material: ABS plastic (UL94V-0) baffle, steel back can
- Grille: Color-matched steel grille with fabric
- Sensitivity 1 W/1 m: 88
- Available Color: White
- Height: 324
- Weight Net: 8
- Shipping Weight: 20.23
- Coverage (Nominal -6 dB): 100°
- Mounting Systems: C ring, tile bridge
- Impedance: 8
- Cutout Size: 294.3
- Regulatory Approvals: UL1480; UL2043
- Diameter (Max): 327
- Transformer Taps (Transformer Version Only): 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω
