Description

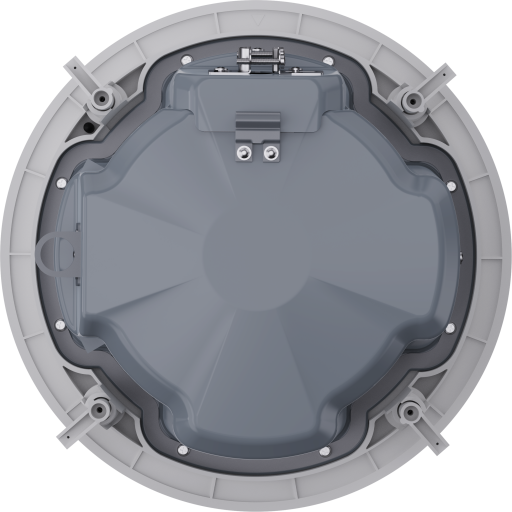

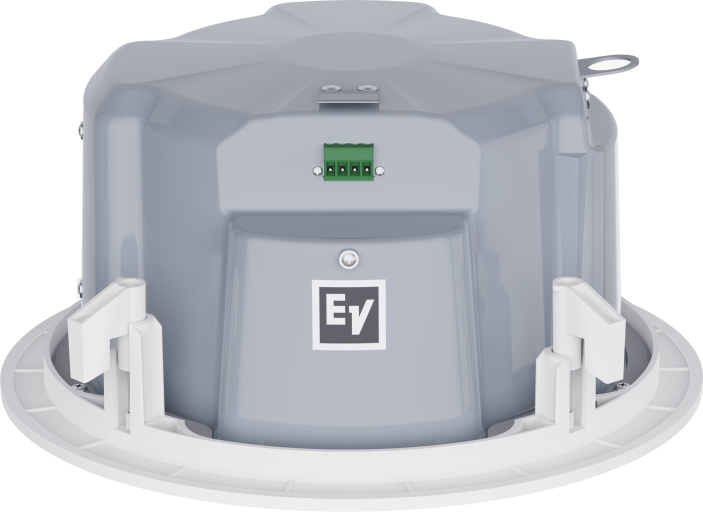

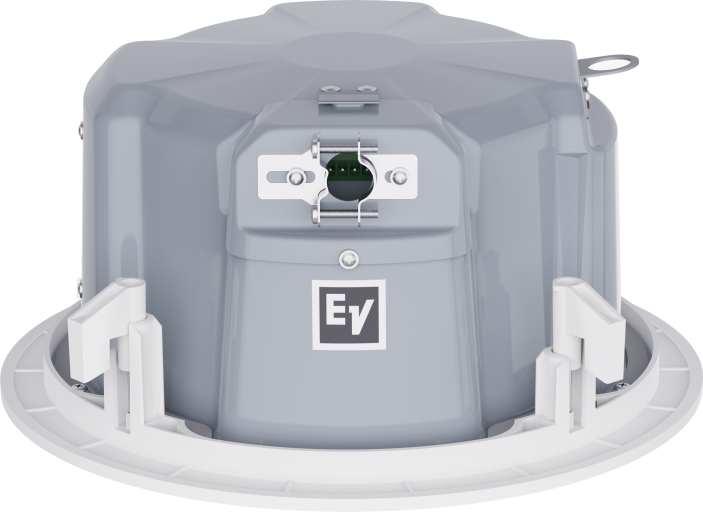

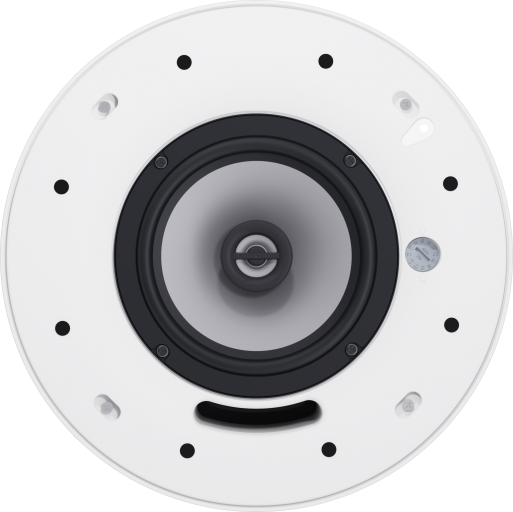

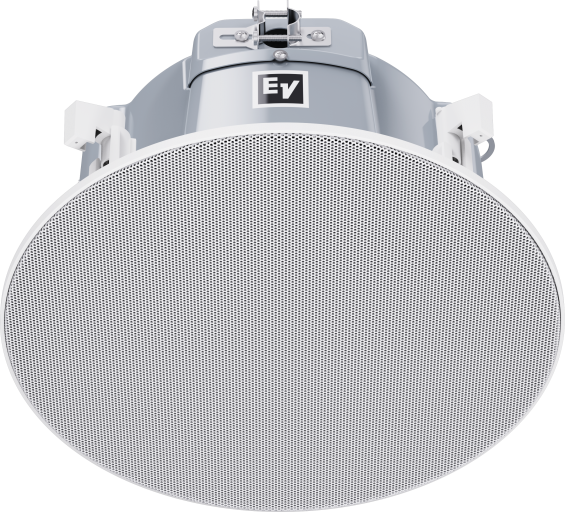

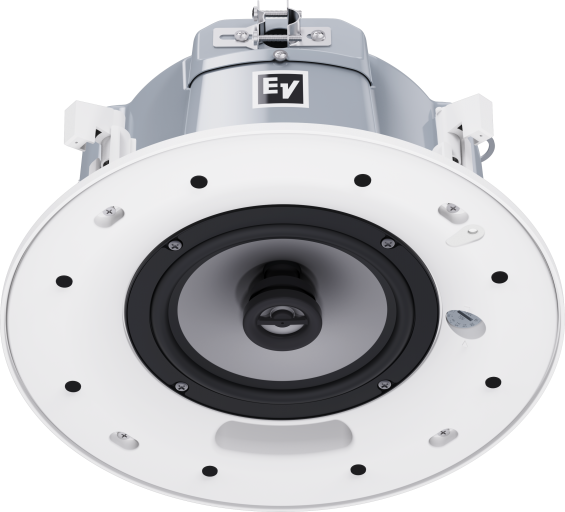

The Electro-Voice EVID-EC6.2E is a specialized ceiling loudspeaker designed to meet the stringent requirements of voice alarm systems in commercial environments. It is compliant with international standards such as EN 54-24, UL 1480, and CAN/ULC-S541:2016, ensuring its suitability for use in emergency communication applications.
This model is part of the EVID-EC series, which incorporates Electro-Voice’s patented Signal Synchronized Transducer (SST) technology. This technology aligns the low- and high-frequency transducers, allowing for a larger waveguide to fit inside a more compact enclosure, resulting in enhanced acoustic performance and pattern control for exceptional full-range intelligibility. The shallow profile of the EVID-EC6.2E allows it to fit into tighter spaces without compromising sound quality.
The EVID-EC6.2E is ideal for installations requiring high-quality audio with minimal visual impact, offering both performance and aesthetic flexibility.
Specifications
- Frequency Response: 50 Hz, 20 kHz
- Sensitivity (SPL 1 W/1 m): 90 dB
- Coverage Pattern: 120° conical
- Power Handling (@ 8Ω): 75 W (with overload protection)
- Rated Impedance: 8 Ω
- Input Configuration: 8Ω; 70V/100V
- 70V/100V Power Taps: 1.8 (70V only)/3.7/7.5/15/30 W
- LF Transducer: 6.5 in (165 mm) high-compliance driver (weatherized cone)
- HF Transducer: 1 in (25 mm) Ti-coated dome
- Mounting System: Integrated 4-point toggle anchors
- Acoustic Design: Ported cabinet, two-way design, internally damped, with passive crossover
- Cabinet Construction: Steel enclosure and UL94V-0 rated baffle and bezel
- Grille Construction: Powder-coated steel
- Color: White (paintable)
- Cutout Dimensions (Diameter): 10.6 in. (269 mm)
- Dimensions (Depth x Diameter): 7.0 in. x 11.8 in. (190 mm x 300 mm)
- Net Weight: 10 lb (4.5 kg)
- Included Accessories: Tile bridge, mounting ring
- Safety Agency Ratings: UL 1480A, Safe for use in air handling spaces per UL 2043
