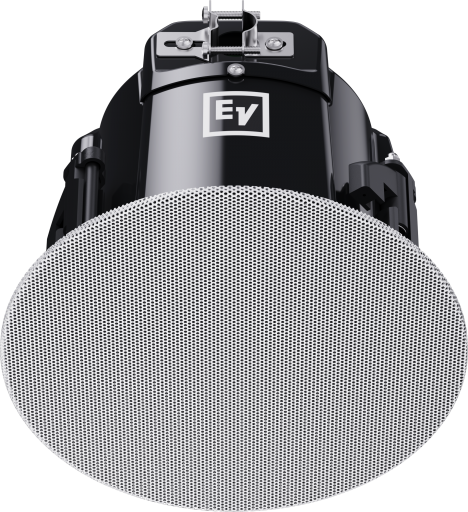

Electro-Voice EVID-C4.2-G2 4in Bezel-Less Ceiling Speaker (Pair) - 8Ω/70/100V - White

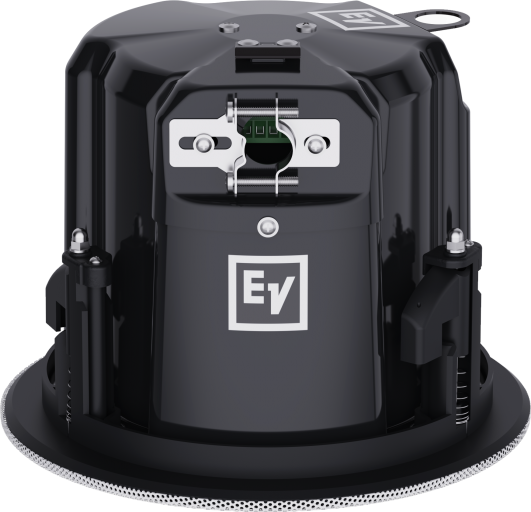

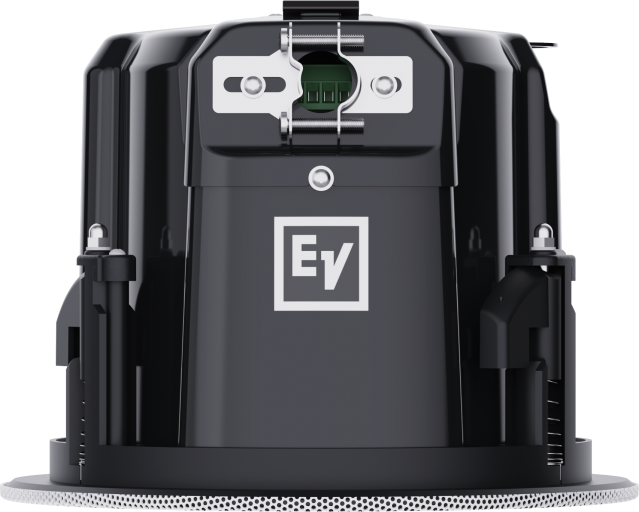

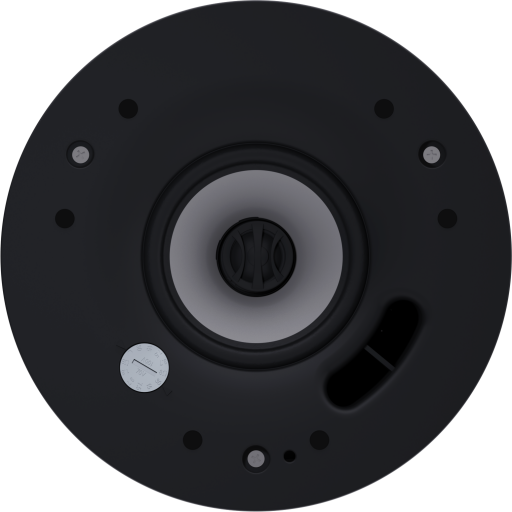

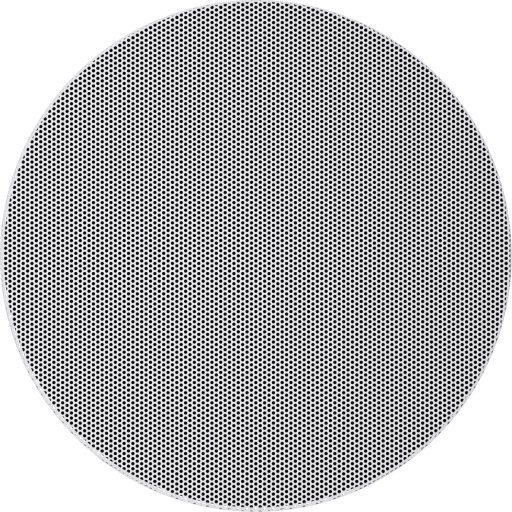

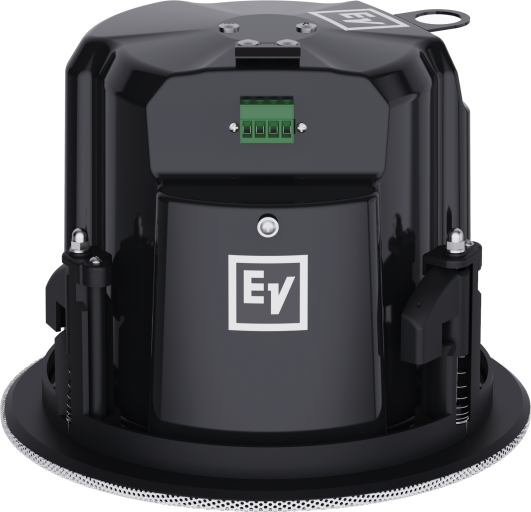

The Electro-Voice EVID-C4.2-G2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C4.2-G2 utilizes a transformer that offers a selection of 1.9 (70-V only), 3.8, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2 -wire and provides pass through to additional speakers. A mounting ring and a tile bridge are included for safe suspension of the EVID-C4.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiberbased ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Specifications

• Frequency range (-10 dB) (Hz) 1: 65 Hz, 20,000 Hz
• Maximum SPL (continuous) (dB) 2: 105 dB
• Maximum SPL (peak) (dB) 3: 111 dB
• Sensitivity (1 W, 1 m) 4: 87 dB SPL 1 W, 1 m

• Coverage angle conical (°): 130°
• Power handling (continuous) (W) 5: 50 W
• Power handling (peak) (W) 5: 200 W
• Nominal impedance (Ω) (Low Z): 8 Ω
• Recommended high pass (Hz) 6: 60 Hz
• Transformer taps 70 V line (W): 15 W; 3.75 W; 7.5 W; 30 W; 1.9 W
• Transformer taps 100 V line (W): 15 W; 3.75 W; 7.5 W; 30 W
• LF transducer size (in): 4 in
• HF transducer size (in): 0.75 in
• Material: Steel
• Grille material: Powder coated steel
• Connector type: 4-pin Euroblock Input + Pass through
• Wire size (AWG): 12AWG (maximum)
• Wire diameter (mm2): 3.3 mm2 (maximum)
• Color: White; Customized colors
• Color (RAL): RAL 9003 Signal white
• Mounting cutout (in): 7.2 in
• Mounting cutout (mm): 183 mm
• Dimensions (Ø x D) (in): 7.9 in x 6.9 in
• Dimensions (Ø x D) (mm): 201 mm x 176 mm
• Mounting depth (in): 6.3 in
• Mounting depth (mm): 160 mm
• Ceiling thickness (in): 0.5 in - 1.5 in
• Ceiling thickness (mm): 12.5 mm - 38 mm
• Weight (kg): 2.7 kg
• Weight (lb): 6 lb
• Shipping weight (kg): 6.4 kg
• Shipping weight (lb): 14 lb
• IP rating 7: IP34
• Weatherization: Indoor
• Operating temperature (°F): 32 °F, 104 °F
• Operating temperature (°C): 0 °C, 40 °C
• Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638
