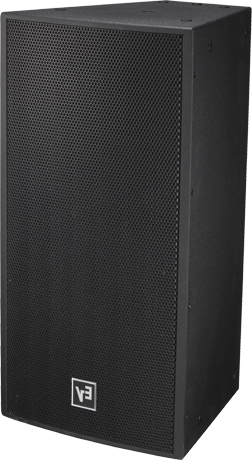

Electro-Voice EVF-12/99-BFW 12in 2Way Front-Loaded Speaker- Outdoor - Black
$0.00
Found a better price? We'll match it.
Authorized
Dealer
Track Your
Order
1-Year
Manufacturer Warranty
Buy With Confidence
Buy With Confidence
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
EVF-1122S/99 features a ° rotatable waveguide, design for near field wide spread coverage pattern.
Features
- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 60º to 120º
- 98 dB sensitivity, 131 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- 4th-order passive crossover with HF protection
- Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Specifications
- Frequency Range (-10 dB): 49 Hz, 19 kHz
- Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
- Weatherized: No
- Minimum Impedance: 6Ω
- Nominal Impedance (Passive): 8Ω
- HF Transducer: 2" ND2B diaphragm compression driver
- Speaker Type: Full-Range, Two-Way
- Frequency Response (-3 dB)¹: 58 Hz, 16 Hz
- Max. SPL/1m (calc)²: 131 dBdB
- Coverage (Nominal -6 dB) H: 90°
- LF Transducer: 12" SMX2121 driver
- Coverage (Nominal -6 dB) V: 90°
- System Power Handling (Continuous/Program/Peak): 500, 1000, 2000 Watts
- Crossover Frequency: 1450Hz
- Enclosure Material: 13-ply weather-resistant birch
- Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Sensitivity 1 W/1 m: 98 dBdB
- Height: 30.26" (768.6mm)
- Width: 16" (406.3mm)
- Recommended High-Pass Frequency: 65Hz
- Depth: 16.27" (413.3mm)
- Weight Net: 63.05lbs (28.6kg)
- Dimensions (H x W x D): 30.26" x 16" x 16.27" (768...3 )mm
- Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
- Available Coverage Patterns (Nominal -6 dB) HxV: °
- Environmental Specs: Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
- Internal Passive Crossover Frequency: 1450Hz
- Passive Power Handling: 2000W peak
- Net Weight: 63.1 lb (28.6 kg)
