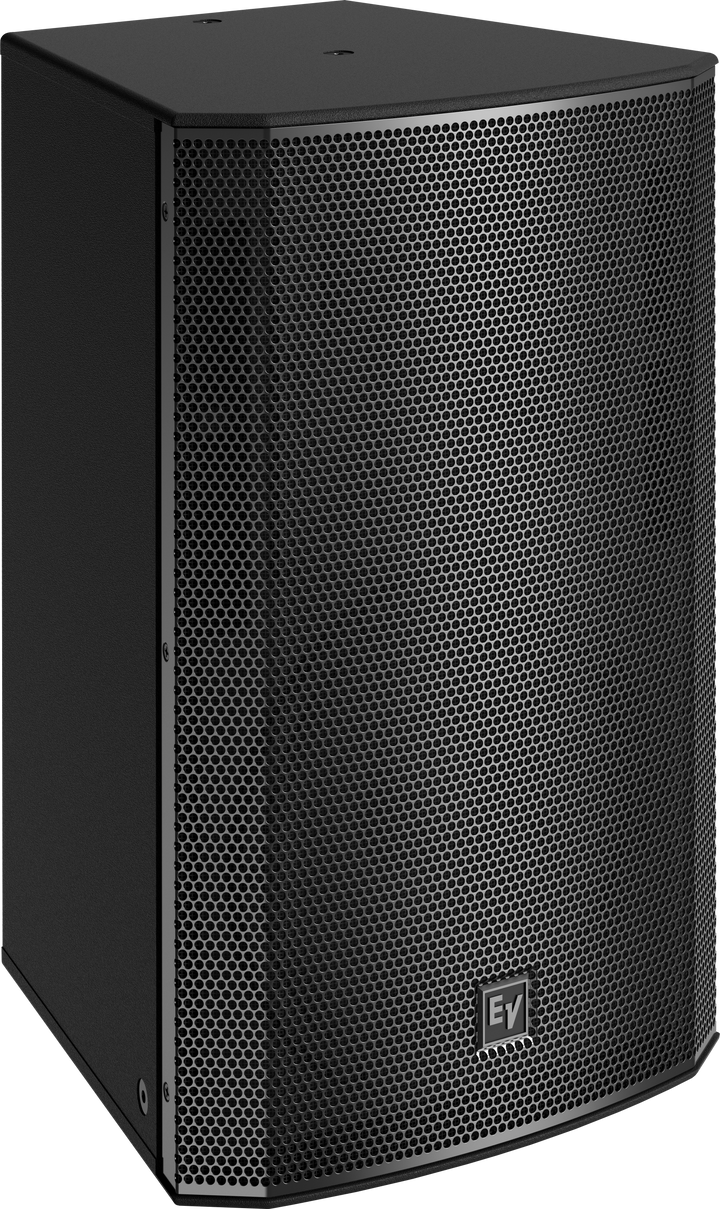

Electro-Voice EVC-1122-64B 12in 2-Way Loudspeaker - 300W- Indoor - Black

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

Features

• 12-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
• Power rating: 300 W Continuous, (1200 Peak)
• Passive system: 95 dB, 126 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

Specifications

• Max Calculated SPL: 126
• Rotatable coverage: 60° x 45°
• Frequency Range (-10 dB): 50Hz-25
• Suspension: eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount
• Minimum Impedance: 7
• HF Transducer: DH-3

• Frequency Response (-3 dB)¹: 70Hz-20k
• LF Transducer: EVS-12M
• Grille: 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
• Weight Net: 20.3
• Shipping Weight: 22.7
• Color: Black or White
• Dimensions (H x W x D): 616 x 395 x 401
• Passive crossover frequency: 1.6
• Rec. high-pass frequency, 4th Order: 45 Hz for 8Ω (50 Hz with TK-150 transformer)
• Environmental Specs: IEC 60529, IP44 (IP55 for PI versions)
• Nominal Impedance: 8
• Axial Sensitivity (SPL, 1 W @ 1 m): 95
• Power Handling (Continuous / Peak): 300/600/1200
• Connectors: Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
• Enclosure: 15mm weather-resistant plywood with EV Coat
