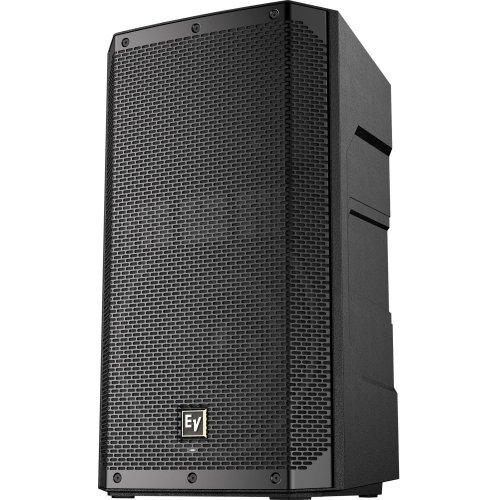

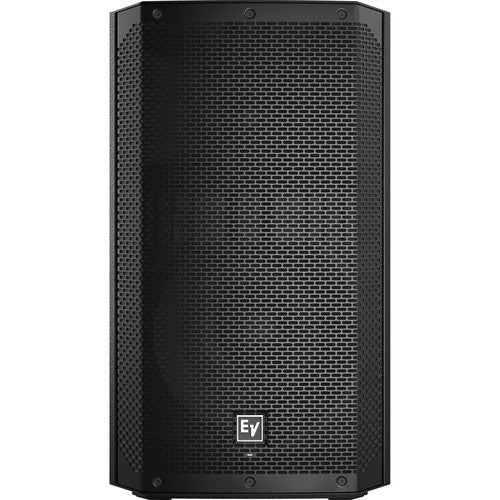

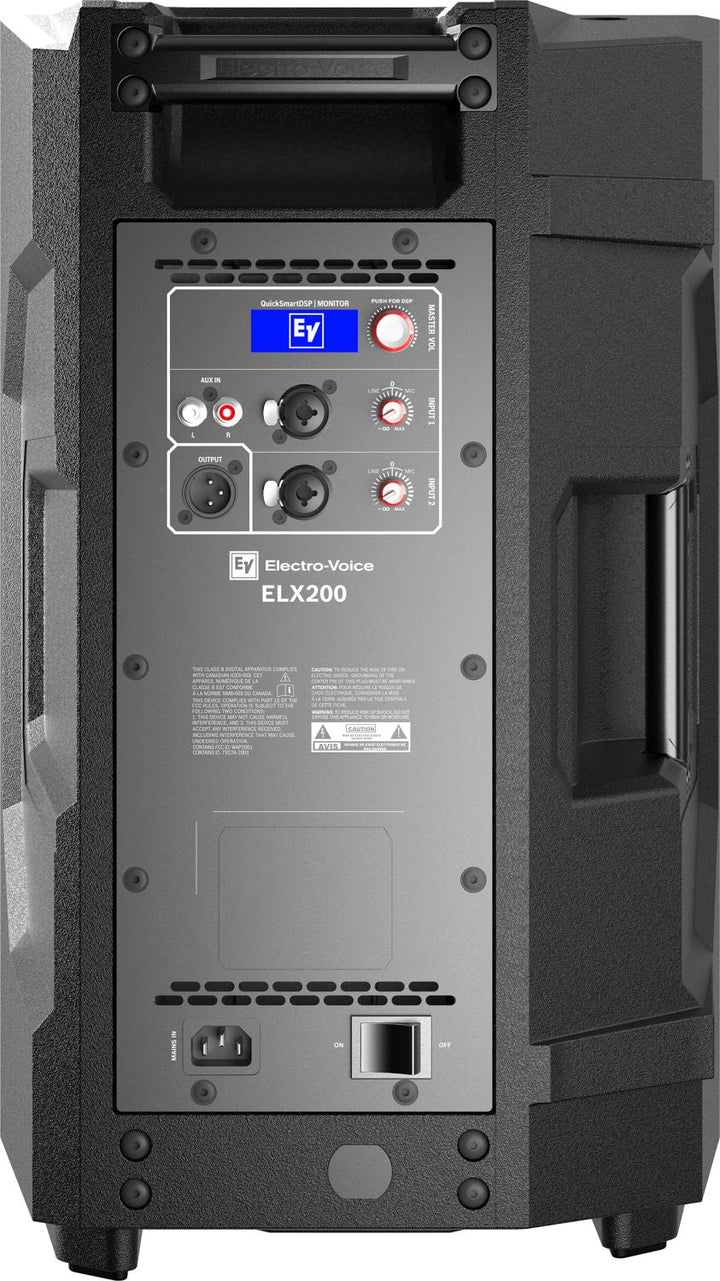

Electro-Voice ELX200-12P-US 12in 2-Way Powered Loudspeaker - 1200W - 90° x 60° - Black
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
12in 2-Way Powered Loudspeaker - 1200W - 90° x 60° - Black
The ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The ELX200 series offers professional Electro-Voice audio quality, precision control, and robust, EV-engineered components in an ultra-lightweight package, a truly potent blend of performance and portability.
Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app* Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
Features
- Perfect for both portable and installed applications
- Lightweight package with heavyweight performance
- QuickSmartDSP provides best-in-class processing via EV’s signature single-knob user interface with LCD
- Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance
Speaker Dimensions (12")
- Height: 16.3"
- Width: 14.3"
- Depth: 14.0"
- Weight: 34.4 lbs
Specifications
| Available Color | Black |
| Connector Type | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Crossover Frequency | 1700 Hz |
| Depth | 344 mm |
| Enclosure Material | Polypropylene |
| Family | ELX200 |
| Frequency Range (-10 dB) | 51 Hz, 20 kHz |
| Frequency Response (-3 dB) | 57 Hz, 16 kHz Hz |
| Grill | 18 AWG steel with powdercoat |
| Height | 629 mm |
| HF Transducer | DH-1C 1-inch titanium compression driver |
| LF Transducer | EVS-12M 300 mm (12 in) |
| Max. SPL/1m (calc) | 130 dB |
| Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.8A |
| Power Rating | 1200 W |
| Powered or Passive | Powered |
| Shipping Weight | 17.7 kg |
| Speaker Type | Full-Range |
| Suspension | (3) M10 suspension points |
| Weight Net | 15.6 kg |
