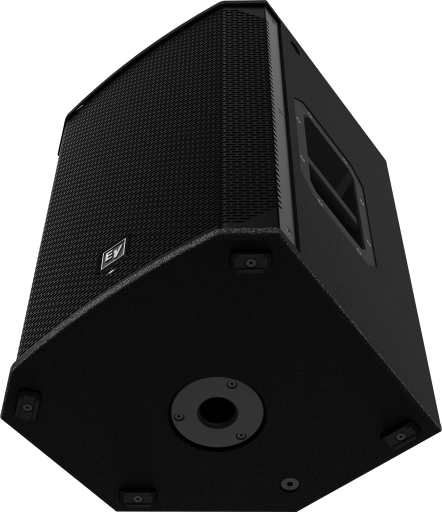

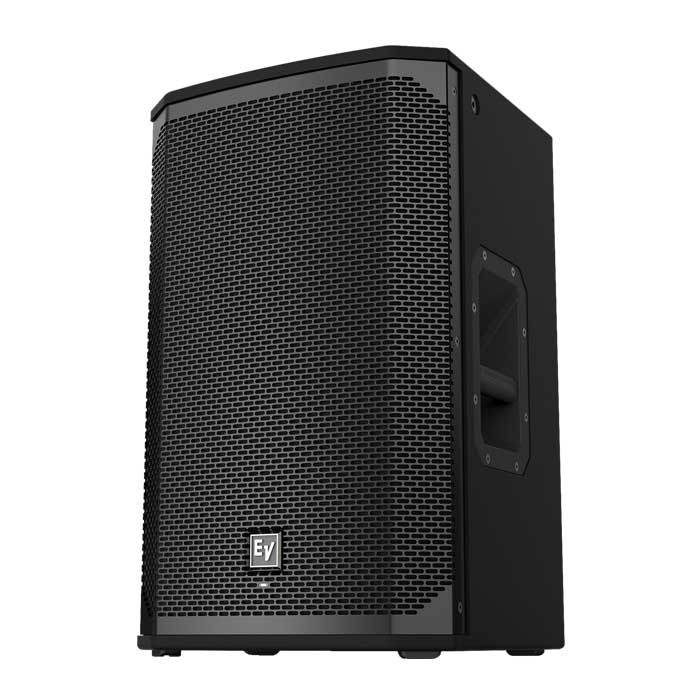

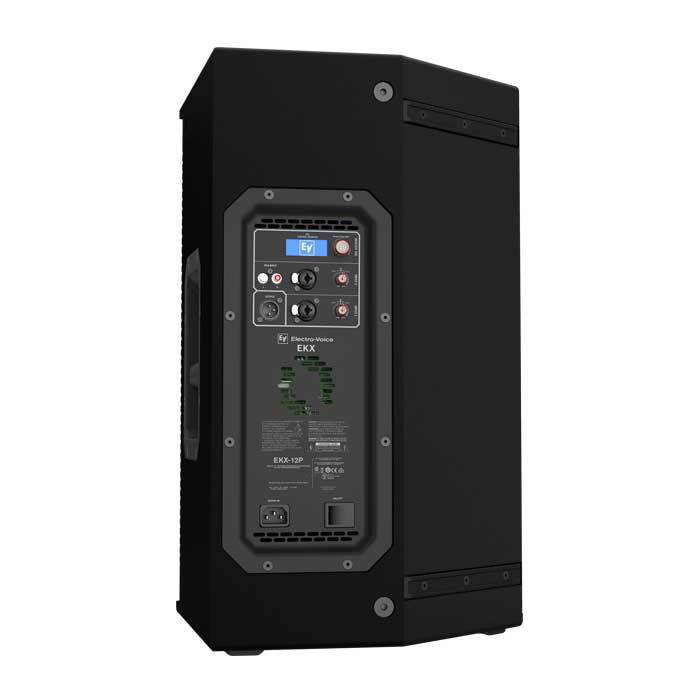

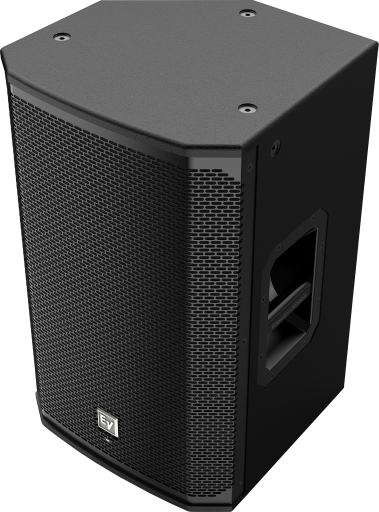

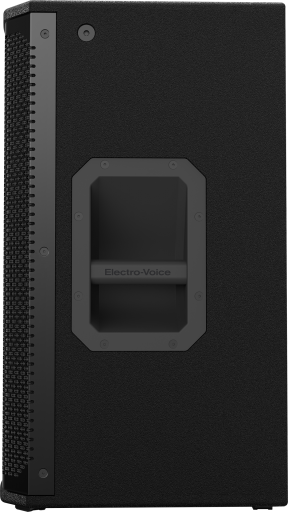

Electro-Voice EKX-12P-US 12in 2-Way Powered Loudspeaker - 1500W - 90° x 60° - Black
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology, all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.
Features:
- QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
- High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
- EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Specifications:
- Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
- Coverage (Nominal -6 dB) H 90 °
- Coverage (Nominal -6 dB) V 60 °
- Crossover Frequency 1.7 k Hz
- Enclosure Material 15 mm, plywood with EVCoat
- Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
- Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
- Grill 18 AWG steel with powdercoat
- HF Transducer DH-1M 1-inch titanium compression driver
- LF Transducer EVS-12M 300 mm (12 in)
- Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
- Power Consumption 1.8 A Current rating is 1/8 power
- Power Rating 1500 W
- Shipping Weight 22.9 kg (50.49 lbs)
- Suspension (8) M10 threaded mounting points
- Height 14RU 607 mm (23.9")
- Width 375 mm (14.76")
- Depth 356 mm (14.02")
- Weight Net 18.8 kg (41.45 lbs)
