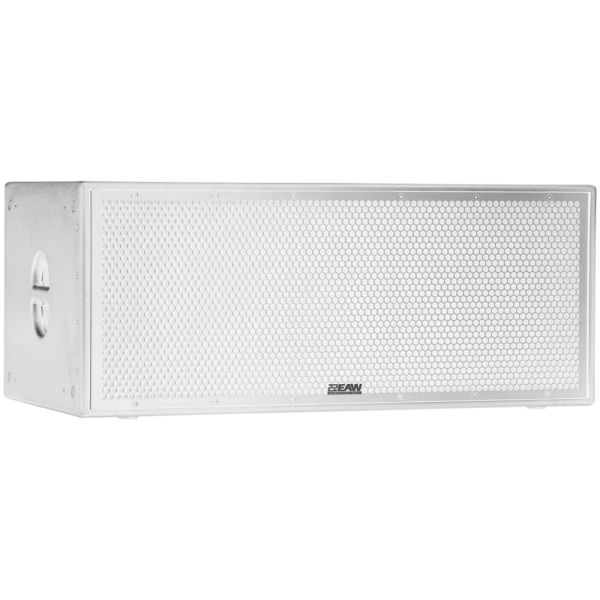

EAW SB828P 2 x 18in 4000W Passive Subwoofer (White)

The EAW SB828P White is a high-performance, 4000W passive subwoofer designed for powerful bass reproduction in demanding professional environments. As part of EAW's legendary SB Series, the SB828P White features dual 18-inch drivers with a 4.5-inch Tetracoil dual voice coil, providing deep, impactful low-frequency output for large-scale venues. This subwoofer is ideal for installations that require both high-output bass and a visually appealing design, making it perfect for theaters, concert halls, stadiums, houses of worship, and large clubs. Its sleek white finish allows it to integrate into spaces where aesthetics are just as important as sound quality.

At the heart of the SB828P White are its advanced 18-inch drivers, which feature a 4.5-inch Tetracoil dual voice coil. These high-performance transducers provide exceptional impulse response and minimal distortion, even at extreme output levels. The ultra-linear suspension behavior and symmetric flux density design allow the subwoofer to maintain high levels of clarity and output while avoiding the common issues of distortion found in less advanced subwoofer systems. The vented enclosure, paired with EAW's ultra-low turbulence port, ensures maximum bass output and reduced distortion, delivering clean and deep low frequencies with exceptional efficiency.

The SB828P White operates within a frequency range of 25 Hz to 130 Hz, making it ideal for reinforcing both sub-bass and mid-bass frequencies in a variety of applications. With a maximum SPL of 143 dB, the SB828P White is capable of producing powerful bass pressure that fills large spaces, ensuring that even the deepest bass is heard clearly and evenly throughout the venue. Its 360° horizontal and vertical beamwidth ensures uniform bass coverage in all directions, making it perfect for spaces where consistent low-frequency performance across the entire room is essential.

Designed for both flexibility and ease of installation, the SB828P White can be ground stacked or permanently suspended. It features 16 integrated M10 mounting points, offering a wide range of rigging and installation options. Suspended overhead or placed on the floor, the SB828P White can be positioned to achieve optimal bass coverage for any venue. The subwoofer's compact height and depth, combined with configurable sound-isolating feet, allow for horizontal or vertical installation, making it adaptable to different acoustic environments. These features, along with the weather-resistant construction, make the SB828P White suitable for a variety of indoor and outdoor installations.

The subwoofer operates in single-amp mode with an 8-ohm nominal impedance, making it compatible with most professional amplifiers. The external signal processing is handled by EAW's DSP, ensuring optimal low-frequency response and system integration. The subwoofer's construction features durable materials that ensure long-lasting reliability, while the white finish ensures a professional, sleek appearance in any venue. The powder-coated perforated steel grille protects the drivers from damage while maintaining optimal sound dispersion, ensuring consistent performance over time.

With a shipping weight of 215 lbs and dimensions of 21 x 52.5 x 30 inches, the SB828P White is designed to deliver high-output bass without sacrificing space or installation flexibility. Its powerful bass, exceptional build quality, and versatile installation options make it the perfect choice for large-scale, permanent audio installations.

Features

• 4000W passive dual 18-inch subwoofer for high-output bass in large professional installations
• Innovative low-turbulence port design for efficient airflow and maximized bass output
• Ultra-linear suspension behavior and Tetracoil dual voice coil for exceptional impulse response and clarity
• Operating range from 25 Hz to 130 Hz for powerful sub-bass and punchy mid-bass reproduction
• Maximum SPL of 143 dB for high-impact bass reinforcement in large venues
• 360° horizontal and vertical beamwidth for even bass coverage throughout the venue
• Nominal impedance of 4 ohms with single-amp configuration for compatibility with most amplifiers
• Works with EAW DSP for optimized low-frequency response and system integration
• 16 integrated M10 mounting points for flexible rigging and permanent suspension
• Compact design with sound-isolating feet for flexible horizontal or vertical installation
• Durable white finish for a clean, professional appearance in aesthetic installations
• Powder-coated perforated steel grille for driver protection and optimal sound dispersion
• Dimensions: 21 x 52.5 x 30 inches; Weight: 200 lbs for easy integration and reliable performance
• Terminal strip and loop-through NL4 connectors for secure and easy-to-maintain connections

Specifications

Performance

• Max SPL: 143 dB
• Operating Range: 25 Hz - 130 Hz
• Nominal Beamwidth: Horizontal 360°, Vertical 360°
• Power Handling: 4000W
• Nominal Impedance: 4 ohms

Configuration

• Subsystem LF: 2 x 18-in Cone, 4.5-in Tetracoil Dual Voice Coil, Vented
• Operating Mode: Single-amp
• Amplifier Channels: 1
• External Signal Processing: EAW DSP

Physical

• Physical Rigging: 16 x M10 Mounting Points
• Dimensions (HWD): 21 x 52.5 x 30 inches
• Net Weight: 200 lbs
• Shipping Weight: 215 lbs
• Connector Type: Terminal strip & loop thru NL4
