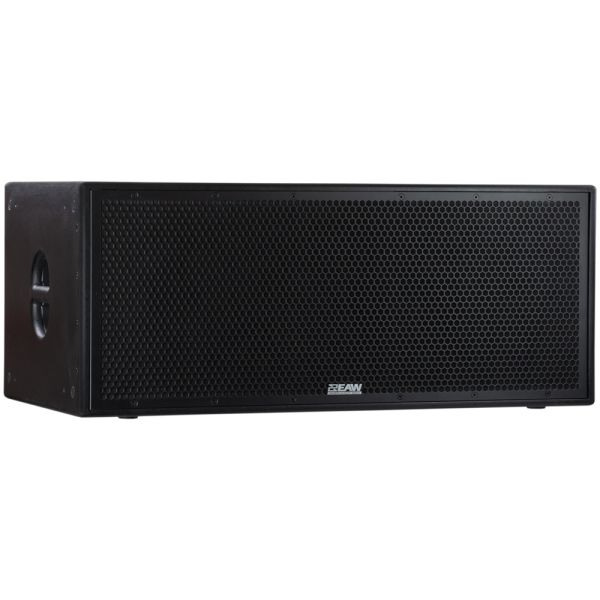

EAW SB825P 2 x 15in 3000W Passive Subwoofer (Black)

The EAW SB825P Black is a high-performance 3000W passive subwoofer engineered for powerful, precise low-frequency reinforcement in permanent installations. As part of the renowned SB Series, this subwoofer is designed to deliver superior output while maintaining exceptional sonic clarity and impulse response. The SB825P Black features dual 15-inch transducers with a 4.5-inch voice coil, providing deep, impactful bass across an operating range of 27 Hz to 135 Hz. With a maximum SPL of 138 dB, this subwoofer is ideal for large venues that demand dynamic low-end performance for events such as live music performances, theaters, arenas, and concert halls.

The dual 15-inch drivers of the SB825P Black are equipped with ultra-linear suspension behavior, ensuring exceptional impulse response and smooth, distortion-free bass. These drivers are paired with a low-turbulence port that minimizes distortion and maximizes output, further improving bass clarity and efficiency. The advanced fluid dynamic research behind the port design ensures the subwoofer operates at peak performance even at high output levels. The SB825P Black provides consistent, powerful bass without compromise.

One of the key features of the SB825P Black is its flexibility in installation. The subwoofer can be ground stacked or permanently suspended using the 16 integrated M10 mounting points. This gives installers the freedom to configure the subwoofer in a variety of ways to suit the acoustics and layout of the space. The compact height and depth of the subwoofer make it suitable for a wide range of room types, and the configurable sound-isolating feet allow for either horizontal or vertical installation, ensuring optimal performance in any setup. The SB825P Black is versatile enough to adapt to the specific needs of each installation.

For optimal performance, the SB825P Black works with EAW's DSP technology, which ensures the subwoofer delivers a tailored low-frequency response. EAW's DSP optimizes the crossover and equalization to ensure that the subwoofer operates within its ideal frequency range, providing deep, controlled bass with minimal distortion. The subwoofer's 4-ohm nominal impedance ensures compatibility with most professional amplifiers, and it operates in single-amp mode, with a single amplifier channel used to power both drivers.

Constructed with durability in mind, the SB825P Black features a rugged, weather-resistant enclosure that provides protection against the elements, making it suitable for both indoor and outdoor installations. The durable black finish ensures that the subwoofer maintains a professional appearance while resisting wear and tear over time. The enclosure is equipped with a terminal strip and loop-through NL4 connectors for secure, easy-to-maintain connections, simplifying the installation process and ensuring long-term reliability.

The EAW SB825P Black is a high-output, versatile subwoofer that provides deep, precise bass for any permanent installation that requires dynamic, impactful low-frequency performance. Its combination of design, flexible mounting options, and exceptional performance makes it a standout choice for large-scale professional sound systems.

Features

• 3000W passive dual 15-inch subwoofer designed for high-output bass in permanent installations
• Ultra-linear suspension behavior for exceptional impulse response and minimal distortion
• Low-turbulence port design for maximum bass output and clarity
• Operating range from 27 Hz to 135 Hz for deep sub-bass and punchy mid-bass reproduction
• Maximum SPL of 138 dB for powerful bass reinforcement in large venues
• 360° horizontal and vertical beamwidth for even bass coverage across the venue
• Nominal impedance of 4 ohms with a single-amp configuration for flexible amplifier compatibility
• Works with EAW DSP for optimized low-frequency response and system integration
• 16 integrated M10 mounting points for flexible rigging and permanent suspension
• Compact design with configurable sound-isolating feet for horizontal or vertical installation
• Rugged, weather-resistant enclosure with durable black finish for long-lasting performance
• Terminal strip and loop-through NL4 connectors for secure, easy-to-maintain connections
• Dimensions: 17 x 42 x 24 inches; Weight: 140 lbs for reliable performance and easy installation

Specifications

Performance

• Max SPL: 138 dB
• Operating Range: 27 Hz - 135 Hz
• Nominal Beamwidth: Horizontal 360°, Vertical 360°
• Power Handling: 3000W
• Nominal Impedance: 4 ohms

Configuration

• Subsystem LF:
  • Transducer: 2 x 15-in Cone, 4.5-in Voice Coil, Vented
• Operating Mode: Single-amp
• Amplifier Channels: 1
• External Signal Processing: EAW DSP

Physical

• Physical Rigging: 16 x M10 Mounting Points
• Dimensions (HWD): 17 x 42 x 24 inches
• Net Weight: 140 lbs
• Shipping Weight: 155 lbs
• Connector Type: Terminal strip & loop thru NL4
