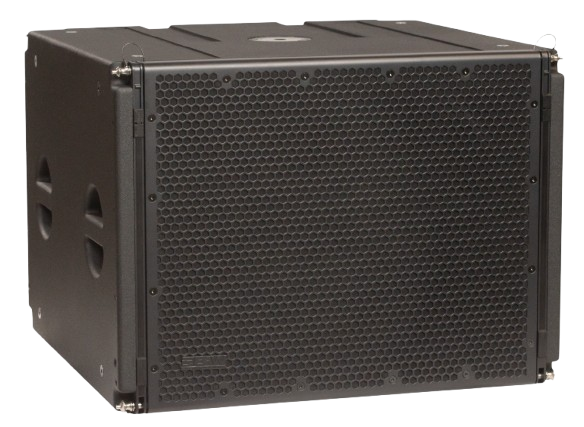

EAW SB818 18in Flyable Passive Subwoofer (Black)

The SB818 is a high output, mid-size flyable subwoofer system. SB series subwoofers are the choice where the best sonic performance, highest reliability, and most physical construction are required.

SB818 is direct radiating with an optimally tuned vented enclosure. Top quality drivers provide the highest output and best sonic performance, and EAW engineers have tailored digital signal processing for optimum LF response.

SB818 is the first choice when choosing a subwoofer to fly with a KF series system. It can be flown by itself or arrayed with KF210. A ground stack adapter supports flexible, compact, and safe ground stack arrays, while a transition bar allows for the sub and KF210 to be flown in the same array using one flybar and one rigging point.

A recessed switch on the input panel allows the first or second set of NL4 connections to be routed to the loudspeaker’s input, reducing cables and providing even greater deployment flexibility.

Features

• Versatile rigging options to array with KF210 and the KF210 Flybar
• Recessed pin select switch reduces cabling and provides greater deployment flexibility
• Power and processing provided by UXA4416 amplifier and UXR Amp Racks
• Weather protection options

Specifications

• Frequency Response: 25Hz - 120Hz
• Max SPL: 136dB (Half Space)
• Operating Mode: Single Amp VLF
• Subsystem: 1×18″ cone, 4″ VC Vented
• Nominal Beamwidth: NA
• Power Handling: See Amplifier Configuration Chart on Spec Sheet
• Connections: 2x NL4
• Dimensions: 21 x 28.3 x 27.9in (533 x 720 x 708mm)
• Weight: 122 lbs.
