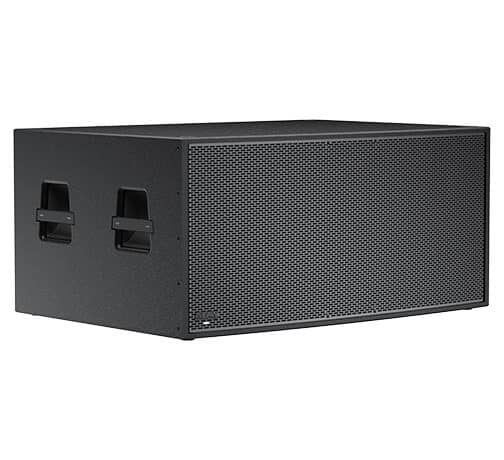

EAW RSX218 2 x 18in 1400W Powered Subwoofer with Dante

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The powerful RSX218 dual 18” subwoofer is ideal for production applications, offering push-button cardioid operation for added sonic control. The RSX218 features onboard electronics (1400W maximum) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Applications

Features

• House of Worship
• Theatres, Auditoria and Performing Arts Centers
• Live Music Clubs
• Corporate AV Houses
• Live Production/Regional Rental Houses
• Dry Hire

Features

• Push-button cardioid operation provides directivity to lower excess low-frequency energy on stage.
• Extremely approachable EAWmosaic™ iOS app delivers system prediction, control and monitoring from any location in the venue.
• Proven EAW acoustical design and DSP including Focusing™ and DynO™ provides a pristine impulse response at all output levels.
• Integrated Dante™ networking (with loop-thru) on all models including Analog redundancy capability.

Specifications

• Frequency Response: 27 Hz - 125 Hz
• Max SPL: 141 dB (Half Space)
• Operating Mode: Single-amp LF; DSP w/ Dyn0
• Subsystem: 2 x 18 in cone, 3 in voice coil
• Nominal Beamwidth:
• Horizontal: 360°
• Vertical: 360°
• Power Handling: 1400W

Connections:

• Powercon AC Mains/Loop
• 2x Neutrik etherCON
• RJ-45
• XLR Input/Loop

Dimensions:

• Height: 20.58 in (522.7 mm)
• Width: 44 in (1117.6 mm)
• Depth: 31.13 in (790.7 mm)
• Weight: 153 lbs (69 kg)
