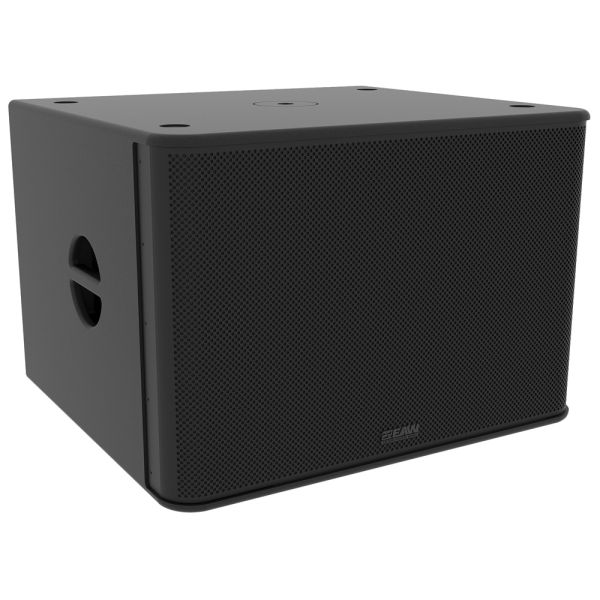

EAW RS115 15in 1500W Powered Subwoofer (Black)

The EAW RS115 is a powerful, 1500W 15-inch powered subwoofer designed to deliver exceptional low-frequency performance in a portable and lightweight package. Part of the RS Subwoofer Series, the RS115 features advanced technology, ensuring that it provides the signature EAW performance trusted by professionals worldwide. Designed around the latest, high-powered transducers with enhanced motor strength, the RS115 optimizes both system weight and low-frequency output. This subwoofer features on-board 1500-watt Class-D amplification, offering the necessary power to meet the demanding performance needs of live sound engineers, DJs, and other audio professionals.

The RS115 is engineered with a meticulous vented enclosure that is tuned to ensure optimal performance. The subwoofer also incorporates EAW's signature DynO dynamic optimization processing, which optimizes the power transfer from the amplifier to the transducer, enhancing headroom and preserving the integrity of sound, even at maximum output levels. Additionally, the RS Subwoofer Series utilizes the EAW Resolution software platform, a powerful and easy-to-use simulation tool that predicts the performance of one or more RS Series subwoofers in a given venue or performance space. This tool allows users to achieve precise performance predictions and optimal sound in various environments.

With dual tunings for application-specific performance, the RS115 offers versatile functionality. It can be used in two operating modes: Normal and Depth. The subwoofer has a frequency range from 40 Hz to 125 Hz, providing full-range, deep bass reproduction with a maximum SPL of 132 dB (peak, half space). The RS115 is designed to deliver excellent low-frequency extension and punch, making it an ideal solution for professional sound reinforcement, portable PA systems, and mobile setups.

Built for durability and ease of use, the RS115 features ergonomic handles for easy transport, a rugged grille for additional protection, and a RoadCoat enclosure for enhanced durability. The subwoofer also includes a pole cup for mounting full-range loudspeakers and optional casters for easy movement. With a nominal beamwidth of 360° horizontal and 360° vertical, the RS115 provides consistent sound dispersion across a wide area. This subwoofer's versatile performance and durability ensure it delivers top-tier sound every time.

With an operating voltage of either 115V (100-120V, 50-60Hz) or 230V (200-240V, 50-60Hz), the RS115 is flexible for global use. It draws minimal current at idle (50W) and provides maximum output at full power (600W). The subwoofer's physical dimensions are 17.7 x 24.8 x 23.6 inches, and it weighs 70 lbs, with a shipping weight of 80 lbs. This makes the RS115 compact and manageable while still delivering substantial low-frequency output, making it perfect for professional applications where both portability and performance are required.

Features

• 1500W of Class-D amplification for high output and efficiency
• Premium 15-inch transducer with a 3-inch voice coil for deep bass reproduction
• Signature EAW DynO dynamic optimization processing for improved sound integrity and headroom
• Dual tunings for application-specific performance (Normal and Depth modes)
• Maximum SPL of 132 dB (peak, half space) for powerful, clean low frequencies
• Operating range from 40 Hz to 125 Hz for full-range low-frequency performance
• Nominal beamwidth of 360° horizontal x 360° vertical for even sound dispersion
• Integrated DSP with DynO and selectable crossovers at 80 Hz or 110 Hz
• Electronically balanced XLR input (stereo) for easy integration into professional systems
• Rugged RoadCoat enclosure with vibration isolation feet for durability
• Ergonomic handles and optional casters for easy transport
• Dimensions: 17.7 x 24.8 x 23.6 inches; Weight: 70 lbs (net), 80 lbs (shipping)

Specifications

Performance

• Max SPL: 132 dB (peak, half space)
• Operating Range: 40 Hz to 125 Hz
• Nominal Beamwidth: 360° Horizontal x 360° Vertical

Configuration

• Subsystem: 15-inch cone, 3-inch voice coil, vented
• Operating Modes: Normal/Depth
• Signal Processing: DSP with DynO
• Crossover: 80 Hz or 110 Hz

Electrical

• Input & Loop Type: Electronically Balanced XLR (stereo)
• Amplifier Type: Class D
• Max Output LF (Peak): 1500W
• AC Mains (nominal): Connector IEC Connector
• Input: 115V Model 100-120V, 50-60Hz or 230V Model 200-240V, 50-60Hz

Current Draw

• Idle: 50W
• 1/8th Power: 75W
• 1/3rd Power: 200W
• Full Power: 600W

Physical

• Physical/Rigging: Vibration Isolation Feet
• Dimensions (HWD): 17.7 x 24.8 x 23.6 inches
• Net Weight: 70 lbs
• Shipping Weight: 80 lbs
