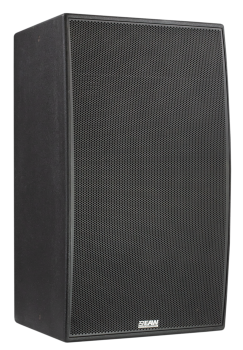

EAW MKD1564 2 x 15in 3-Way Full Range Loudspeaker 60° x 45° (Black)

3-Way Full Range Loudspeaker - 2 x 15in - 60° x 45° - Black
$9,990.99 Free Shipping
Found a better price? We'll match it.
SKU: MKD1564
Special Order
Our specialists procure special orders 1.19x faster than the industry average. Most orders arrive within 1-2 weeks.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
EAW
Track Your
Order
1-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
EAW
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
1-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

The MKD1500 series loudspeaker is engineered to deliver the high output, broadband pattern control and exceptional fidelity that is required by real-world applications from stadiums to intimate music clubs.

Features

  • High output bi-amplified two-way performance
  • High performance coaxial compression driver with extended bandwidth
  • Precision EAW signature broadband pattern control
  • Flexible mounting, weather protection color options

Specifications

  • Frequency Response: 45Hz - 18kHz
  • Max SPL: 145dB
  • Operating Mode: Bi-Amp
  • Subsystem
    • LF Transducer, Loading: 2 x 15in Cone, 4in Voice Coil
    • MF Transducer, Loading: 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
    • HF Transducer, Loading: 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
  • Nominal Beamwidth: 60° Horizontal x 45° Vertical
  • Power Handling
    • LF: 1600W @ 4ohms
    • MF/HF: 250W @ 8ohms
  • Connections: Terminal block
  • Dimensions: 37H x 23W x 24D (935mm x 580mm x 600mm)
  • Weight: 130lbs (59kg)
