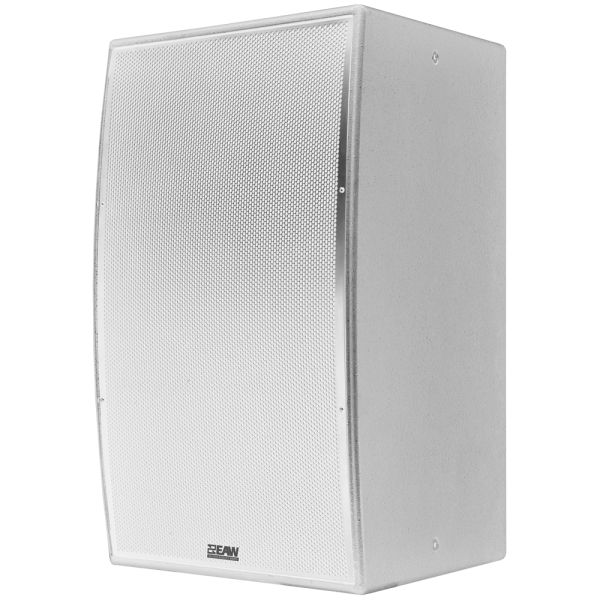

EAW MKD1296-WP 2 x 12in 3-Way Full Range Loudspeaker 90° x 60° Weatherproof (White)

The EAW MKD1296-WP is a 1200W passive 2-way installation loudspeaker designed to deliver exceptional high-output performance, precise broadband pattern control, and superior fidelity across a wide range of professional audio applications. Engineered for both large-scale venues such as stadiums and more intimate spaces like music clubs, this speaker excels in environments where high sound quality and even coverage are essential. Featuring dual 12-inch low-frequency transducers, a 2-inch exit, 4-inch voice coil compression midrange driver, and a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, the MKD1296-WP ensures a full-range sound that is dynamic, clear, and consistent. Its white finish ensures that it integrates discreetly into visually sensitive environments, making it a perfect solution for installations where both aesthetics and performance matter.

The MKD1296-WP is part of the MKD installation series, which builds on EAW's long tradition of high-performance loudspeakers developed in collaboration with consultants and sound system integrators worldwide. The speaker uses advanced technologies from the QX series, including a pair of spaced low-frequency transducers centered around a large-format, rotatable horn. These acoustically advanced transducers are able to be driven an octave lower than standard drivers due to EAW's beamwidth-matched crossover technology. This design ensures enhanced low-frequency response and more precise sound reproduction across the entire frequency range. The MKD1296-WP offers a nominal beamwidth of 90° horizontal by 60° vertical, providing even and controlled sound coverage for a wide range of installations. With a maximum SPL of 145 dB and a flat SPL of 139 dB, the MKD1296-WP is capable of delivering powerful, high-quality audio in both large and acoustically challenging environments. The speaker operates across a frequency range of 47Hz to 20kHz, ensuring that it provides full-range audio reproduction with exceptional clarity and detail.

Designed for installation flexibility, the MKD1296-WP features a durable Baltic birch enclosure that provides the strength required for both permanent and temporary installations. The speaker includes 12 M10 mounting points, allowing for secure rigging and easy integration into a variety of setups. The MKD1296-WP can be mounted horizontally or vertically using optional U-brackets or M10 kits, making it suitable for a wide range of installation configurations. The speaker is also IP56-rated for weather protection, ensuring its durability in both indoor and outdoor applications. The custom white finish and gently curved front design allow the MKD1296-WP to blend seamlessly into visually sensitive environments. Additionally, the speaker supports both passive and bi-amp operating modes, providing system integrators with flexibility to optimize performance according to specific installation needs.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 3-inch voice coil, vented, 2-inch exit, 4-inch voice coil compression midrange driver, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth and enhanced low-frequency response
• Nominal beamwidth of 90° horizontal x 60° vertical for even, controlled sound coverage
• Max SPL of 145 dB and flat SPL of 139 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options (IP56-rated) for both indoor and outdoor use
• Custom white finish and gently curved front for discreet, visually sensitive installations
• Dimensions (HWD): 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 145 dB
• Flat SPL: 139 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
