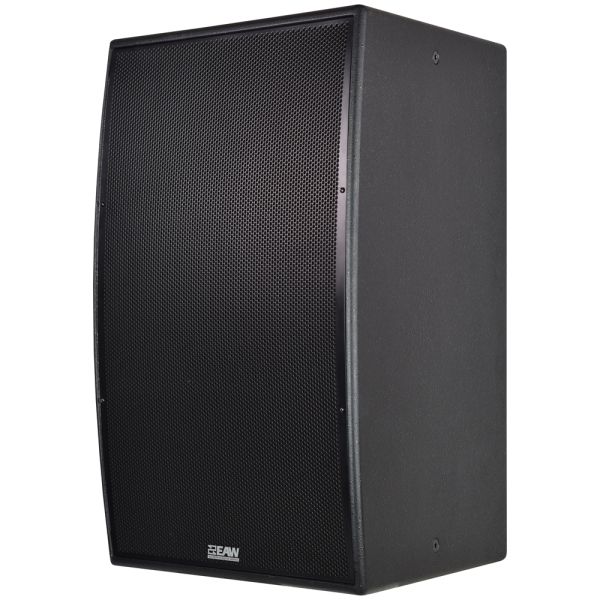

EAW MKD1296-WP 2 x 12in 3-Way Full Range Loudspeaker 90° x 60° Weatherproof (Black)

The EAW MKD1296-WP is a high-performance 1200W passive 2-way installation loudspeaker, engineered to deliver exceptional output, broadband pattern control, and remarkable fidelity for a variety of professional applications. As part of the MKD series, it excels in real-world environments, from large stadiums to intimate music clubs. Featuring dual 12-inch low-frequency transducers, a 2-inch exit, 4-inch voice coil compression midrange driver, and a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, the MKD1296-WP ensures deep bass, rich midrange, and clear high frequencies. Its black finish makes it a sleek and professional choice, perfect for a wide range of installations where both aesthetics and high-output performance are required.

Built on EAW's long-standing tradition of high-performance installation loudspeakers, the MKD1296-WP features advanced design principles from the QX series. The speaker features spaced low-frequency transducers centered around a large-format, rotatable horn that provides precision broadband pattern control. This advanced design allows for enhanced low-frequency response, with the acoustically advanced transducers being driven an octave lower than standard drivers, thanks to EAW's beamwidth-matched crossover technology. This results in smoother, more natural sound reproduction across the entire frequency range. With a nominal beamwidth of 90° horizontal by 60° vertical, the MKD1296-WP offers broad, even coverage, making it perfect for installations that require both wide sound dispersion and high clarity. The speaker's maximum SPL of 145 dB and flat SPL of 139 dB ensures that it can deliver powerful, clear sound at high output levels, even in large, acoustically challenging environments. Its operating range from 47Hz to 20kHz ensures full-range sound reproduction with exceptional detail and clarity.

The MKD1296-WP is built for durability and ease of installation. Its compact, durable Baltic birch enclosure ensures robustness while maintaining a lightweight design. The speaker features 12 M10 mounting points, providing secure rigging for a variety of installation configurations. The MKD1296-WP can be easily deployed using optional U-brackets or M10 kits. The speaker also offers weather protection options, making it suitable for both indoor and outdoor applications, even in harsh environments. With custom color options and a gently curved front design, the MKD1296-WP is ideal for discreet installations where visual sensitivity is important. The speaker supports both passive and bi-amp operating modes, offering system integrators flexibility to optimize performance based on specific installation needs.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth, enhanced low-frequency response, and superior clarity
• Nominal beamwidth of 90° horizontal x 60° vertical for even and controlled sound coverage
• Max SPL of 145 dB and flat SPL of 139 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for optimized system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for both indoor and outdoor use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions (HWD): 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 145 dB
• Flat SPL: 139 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
