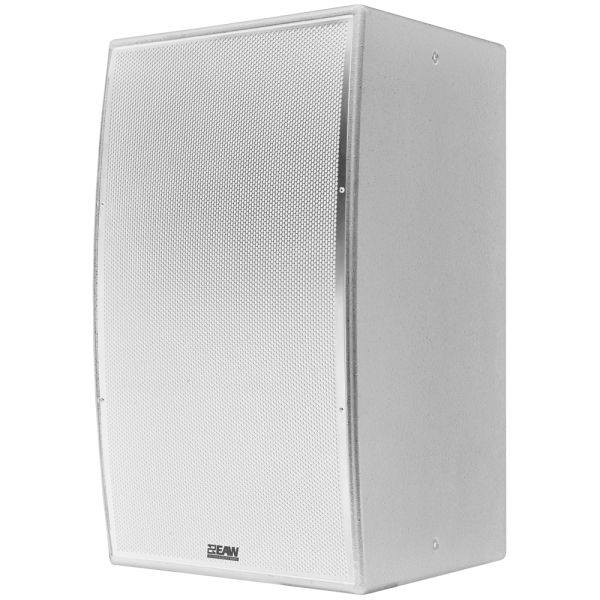

EAW MKD1296 2 x 12in 3-Way Full Range Loudspeaker 90° x 60° (White)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The EAW MKD1296 is a 1200W passive 2-way installation loudspeaker designed to deliver high-output sound with exceptional broadband pattern control and superior fidelity. Engineered for professional audio environments, the MKD1296 excels in venues ranging from large stadiums to smaller, acoustically demanding spaces such as music clubs. With dual 12-inch low-frequency transducers, a 2-inch exit, 4-inch voice coil compression midrange driver, and a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, the MKD1296 produces clear, powerful audio across a broad frequency range. Its white finish ensures it blends seamlessly into visually sensitive environments, making it perfect for installations where both aesthetics and performance are essential.
Part of the MKD installation loudspeaker series, the MKD1296 incorporates core technologies from EAW's QX series, including beamwidth-matched crossover technology. This allows the acoustically advanced transducers to operate an octave lower than standard drivers, improving low-frequency response while maintaining clarity and accuracy across the entire frequency spectrum. The speaker features a nominal beamwidth of 90° horizontal and 60° vertical, ensuring even and controlled sound coverage across a wide area. With a maximum SPL of 145 dB and a flat SPL of 139 dB, the MKD1296 can produce high-output sound while maintaining clarity and detail, even at high volumes. The speaker's operating range extends from 47Hz to 20kHz, ensuring it covers the full spectrum of audio content with exceptional fidelity.
Designed for durability and installation flexibility, the MKD1296 features a compact Baltic birch enclosure that provides strength and rigidity while minimizing weight. The speaker includes 12 M10 mounting points, making it easy to rig securely in various configurations. It can be mounted horizontally or vertically using the optional U-bracket or M10 eyebolts, providing versatility for a wide range of installation setups. Additionally, the MKD1296 offers weather protection options, making it suitable for both indoor and outdoor applications, even in harsh environments. The speaker's custom color options and gently curved front design allow it to be discreetly integrated into visually sensitive installations, ensuring it fits seamlessly into any space. The MKD1296 also supports both passive and bi-amp operating modes, offering flexibility for system integrators to optimize performance according to the specific needs of the installation.
Features
- 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange driver, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
- QX-inspired design for extended bandwidth, enhanced low-frequency response, and superior clarity
- Nominal beamwidth of 90° horizontal x 60° vertical for even, consistent coverage
- Max SPL of 145 dB and flat SPL of 139 dB for high-output sound in large venues
- Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
- High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
- Flexible passive and bi-amp operating modes for system integration
- 12 M10 mounting points for secure rigging and easy installation
- Weather protection options for both indoor and outdoor environments
- Custom color options and gently curved front for discreet, visually sensitive installations
- Dimensions: 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
- Input connector: Terminal block for secure, reliable connections
Specifications
Performance
- Max SPL: 145 dB
- Flat SPL: 139 dB
- Operating Range: 47 Hz to 20 kHz
- Nominal Beamwidth: 90° Horizontal x 60° Vertical
- Nominal Phase: +15° from ideal high-pass filter
- Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω
Accelerated Life Test
- LF/MF/HF: 1200W @ 8Ω
- LF: 1200W @ 8Ω
- MF/HF: 140W @ 8Ω
Configuration
- LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
- MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
- HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
- Operating Modes: Passive, Bi-Amp
Physical
- Physical/Rigging: 12 x M10 Mounting Points
- Dimensions (HWD): 32 x 22.7 x 20.6 inches
- Net Weight: 104 lbs
- Shipping Weight: 125 lbs
- Mounting Accessories: U-Bracket, M10 Kit
- Input Connector: Terminal block
