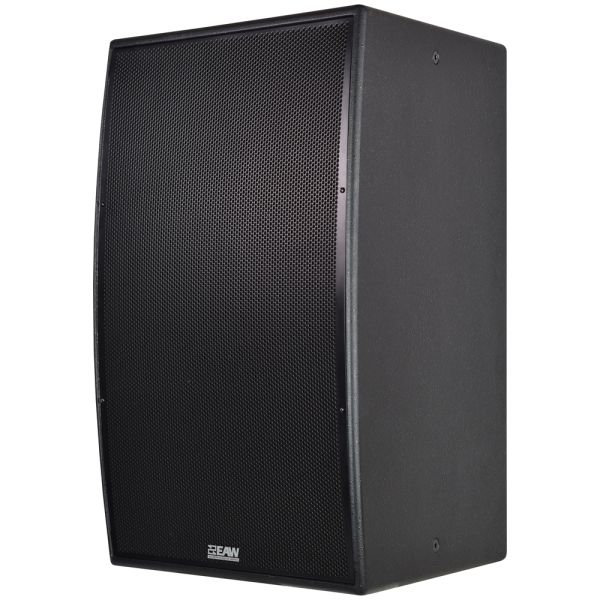

EAW MKD1296 2 x 12in 3-Way Full Range Loudspeaker 90° x 60° (Black)

The EAW MKD1296 is a 1200W passive 2-way installation loudspeaker designed to provide exceptional high-output sound, broadband pattern control, and remarkable fidelity in a variety of professional audio applications. Ideal for large venues such as stadiums, theaters, and concert halls, as well as smaller, acoustically challenging spaces like music clubs, the MKD1296 delivers clear, dynamic sound with impressive coverage. Featuring dual 12-inch low-frequency transducers, a 2-inch exit, 4-inch voice coil compression midrange driver, and a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, the MKD1296 produces deep bass, rich midrange, and pristine highs. Its black finish ensures that the speaker integrates seamlessly into various professional environments while providing the durability needed for demanding installations.

The MKD1296 builds on EAW's long tradition of delivering high-performance installation loudspeakers developed in partnership with sound consultants and system integrators worldwide. The speaker uses the design principles and core technologies deployed in the QX series, with a large-format rotatable horn and spaced low-frequency transducers. The acoustically advanced transducers are capable of being driven an octave lower than standard drivers through the use of EAW's beamwidth-matched crossover technology, resulting in enhanced low-frequency response and greater clarity across the entire frequency spectrum. The MKD1296 offers a nominal beamwidth of 90° horizontal and 60° vertical, delivering consistent sound coverage across a wide area. With a maximum SPL of 145 dB and a flat SPL of 139 dB, the MKD1296 is capable of producing powerful, high-output sound without sacrificing clarity, making it ideal for venues that require both volume and precision. The speaker operates across a frequency range of 47Hz to 20kHz, providing a full-range audio experience with exceptional detail and depth.

The MKD1296 is designed for ease of installation and flexibility. Its durable Baltic birch enclosure ensures both strength and longevity, while the 12 M10 mounting points provide secure rigging for various configurations. The speaker can be mounted horizontally or vertically using optional U-brackets or M10 eyebolts, offering flexibility in installation. Additionally, the MKD1296 offers weather protection options, making it suitable for both indoor and outdoor applications, even in harsh environments. The speaker's gently curved front design and custom color options allow it to blend discreetly into visually sensitive installations. The MKD1296 supports both passive and bi-amp operating modes, providing flexibility for system integrators to optimize the speaker's performance based on the specific needs of the installation.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth, enhanced low-frequency response, and superior clarity
• Nominal beamwidth of 90° horizontal x 60° vertical for even, consistent sound coverage
• Max SPL of 145 dB and flat SPL of 139 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for both indoor and outdoor environments
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions (HWD): 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 145 dB
• Flat SPL: 139 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
