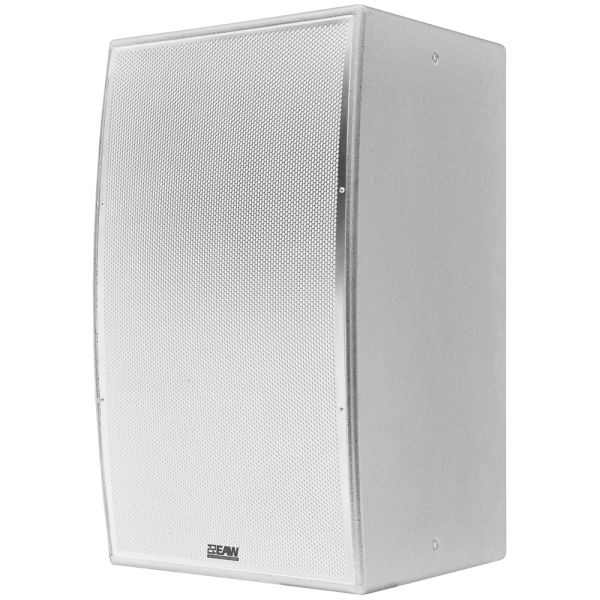

EAW MKD1294-WP 2 x 12in 3-Way Full Range Loudspeaker 90° x 45° Weatherproof (White)

The EAW MKD1294-WP is a powerful 1200W passive 2-way installation loudspeaker that combines exceptional output, broad pattern control, and superior fidelity, making it perfect for a variety of professional audio applications. Installed in large venues like stadiums or smaller, acoustically demanding spaces such as music clubs, the MKD1294-WP delivers clear, dynamic sound across a wide range of frequencies. The speaker features dual 12-inch low-frequency transducers, a 2-inch exit, 4-inch voice coil compression midrange driver, and a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, ensuring a balanced, full-range sound with remarkable clarity. Its white finish ensures seamless integration into visually sensitive environments, making it a versatile solution for a wide range of installation needs.

Designed with EAW's core technologies from the QX series, the MKD1294-WP employs a large-format rotatable horn centered around a pair of low-frequency transducers, ensuring precise broadband pattern control and optimal sound coverage. The speaker's beamwidth-matched crossover technology allows the acoustically advanced transducers to be driven an octave lower than standard drivers, resulting in enhanced low-frequency performance and improved overall sound clarity. With a nominal beamwidth of 90° horizontal by 45° vertical, the MKD1294-WP delivers even and controlled sound across a wide coverage area, making it ideal for installations where consistent sound distribution is essential. The speaker has a maximum SPL of 145 dB and a flat SPL of 139 dB, ensuring it can produce high-output sound while maintaining clarity at all levels. With an operating range from 47Hz to 20kHz, the MKD1294-WP covers a full audio spectrum, making it capable of handling a wide range of audio content with exceptional detail.

The MKD1294-WP is built for durability and flexibility, featuring a compact and sturdy Baltic birch enclosure that facilitates easy integration into a variety of installation configurations. The speaker is equipped with 12 M10 mounting points, allowing for secure rigging and easy installation in both horizontal and vertical orientations. It can be mounted using optional U-brackets or M10 eyebolts, providing versatility in how it can be placed in different environments. In addition to its durability, the MKD1294-WP offers weather protection options, making it suitable for both indoor and outdoor use. Its gently curved front design and custom color options ensure that it can be discreetly integrated into spaces where aesthetics are important. Used for permanent installations or temporary setups, the MKD1294-WP provides flexible, high-performance sound reinforcement. It also supports both passive and bi-amp operating modes, providing the flexibility to optimize the speaker's performance based on specific application needs.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange driver, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth, enhanced low-frequency response, and superior clarity
• Nominal beamwidth of 90° horizontal x 45° vertical for even, consistent sound coverage
• Max SPL of 145 dB and flat SPL of 139 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for both indoor and outdoor environments
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions (HWD): 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 145 dB
• Flat SPL: 139 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal x 45° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
