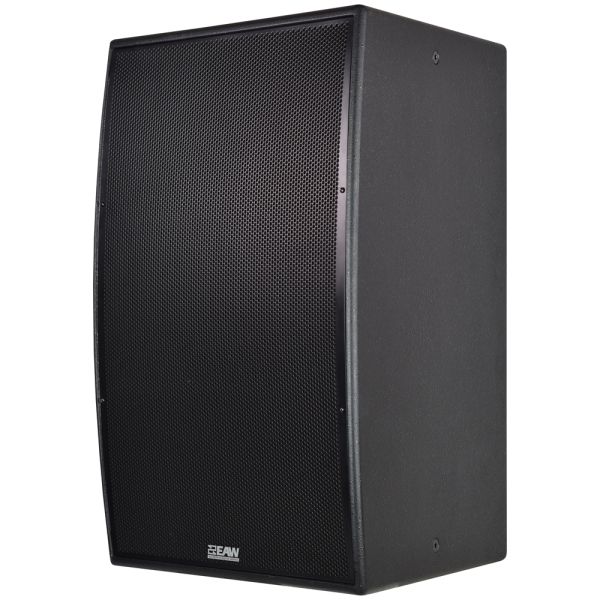

EAW MKD1294-WP 2 x 12in 3-Way Full Range Loudspeaker 90° x 45° Weatherproof (Black)

The EAW MKD1294-WP is a 1200W passive 2-way installation loudspeaker that provides high-output performance, exceptional fidelity, and precise broadband pattern control. As part of the MKD series, the MKD1294-WP is engineered for professional audio environments where sound quality and consistency are critical. In large venues like stadiums or smaller spaces such as music clubs, this speaker excels in providing powerful, clear sound. It features dual 12-inch low-frequency transducers, a 2-inch exit, 4-inch voice coil compression midrange driver, and a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, ensuring deep, full-range sound. The speaker's black finish is designed for both functionality and aesthetic integration, making it an ideal solution for a wide range of professional applications.

The MKD1294-WP is built on EAW's long-standing tradition of delivering exceptional installation loudspeakers, developed in partnership with consultants and sound system integrators worldwide. The speaker uses core design technologies from the QX series, including spaced low-frequency transducers centered around a large-format, rotatable horn. This design allows for precise broadband pattern control and ensures optimal sound dispersion. Through the use of EAW's beamwidth-matched crossover technology, the acoustically advanced transducers are capable of being driven an octave lower than standard drivers, providing enhanced low-frequency response and clearer overall sound. The MKD1294-WP offers a nominal beamwidth of 90° horizontal by 45° vertical, providing consistent coverage across a wide area. With a maximum SPL of 145 dB and a flat SPL of 139 dB, the MKD1294-WP can produce high-output sound that fills large spaces while maintaining clarity and detail. The speaker operates across a frequency range of 47Hz to 20kHz, ensuring full-range performance with exceptional fidelity.

Designed for ease of installation, the MKD1294-WP features a durable Baltic birch enclosure with 12 M10 mounting points for secure rigging. Mounted horizontally or vertically using optional U-brackets or M10 eyebolts, the speaker offers flexibility in setup and integration. The MKD1294-WP also offers weather protection options, making it ideal for outdoor installations or environments exposed to the elements. The speaker's custom color options and gently curved front allow it to blend seamlessly into visually sensitive environments. Additionally, the MKD1294-WP supports both passive and bi-amp operating modes, providing the flexibility needed to optimize performance based on the specific needs of any installation. Used for temporary setups or permanent installations, the MKD1294-WP is a versatile, high-performance solution for professional sound reinforcement.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange driver, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth, improved low-frequency response, and enhanced clarity
• Nominal beamwidth of 90° horizontal x 45° vertical for precise, consistent coverage
• Max SPL of 145 dB and flat SPL of 139 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for both indoor and outdoor environments
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions (HWD): 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 145 dB
• Flat SPL: 139 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal x 45° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
