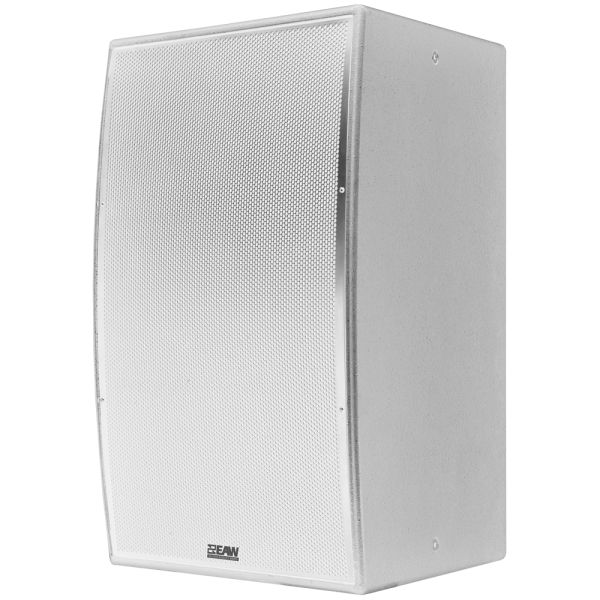

EAW MKD1264-WP 2 x 12in 3-Way Full Range Loudspeaker 60° x 45° Weatherproof (White)

The EAW MKD1264-WP is a powerful 1200W passive 2-way installation loudspeaker designed for high-output performance, broadband pattern control, and exceptional fidelity in professional audio applications. Engineered to meet the demanding needs of large venues such as stadiums, concert halls, and smaller, acoustically challenging spaces like music clubs, the MKD1264-WP offers dynamic, full-range sound. With dual 12-inch low-frequency transducers and a high-performance compression driver, the MKD1264-WP delivers impressive sound clarity and depth. The speaker's white finish makes it an ideal choice for installations where aesthetic integration is important, allowing it to blend into visually sensitive environments.

As part of EAW's MKD series, the MKD1264-WP builds on years of expertise in installation-focused loudspeakers. The speaker is designed with advanced beamwidth-matched crossover technology, which allows the acoustically advanced transducers to perform an octave lower than standard drivers. This improves low-frequency response and results in a more natural and dynamic sound profile. The MKD1264-WP features a pair of 12-inch low-frequency transducers and a 2-inch exit, 4-inch voice coil compression midrange driver, combined with a 2-inch exit, 2.5-inch voice coil compression high-frequency driver, ensuring powerful, full-range performance. The speaker's nominal beamwidth of 60° horizontal and 45° vertical provides precise, even sound coverage, making it ideal for installations that require both broad coverage and controlled dispersion. With a maximum SPL of 147 dB and a flat SPL of 141 dB, the MKD1264-WP can handle demanding sound reinforcement tasks without sacrificing clarity or performance.

Designed with installation flexibility in mind, the MKD1264-WP features a compact yet durable Baltic birch enclosure, which ensures both strength and acoustic performance. The speaker includes 12 M10 mounting points for secure rigging, allowing for flexible deployment in various environments. It can be mounted horizontally or vertically using optional U-brackets or M10 eyebolts, making it perfect for both portable and permanent installations. The MKD1264-WP also offers weather protection options (IP56-rated), ensuring it is suitable for both indoor and outdoor applications, even in harsh environmental conditions. The speaker's custom color options and gently curved front design allow it to be integrated discreetly into spaces where visual sensitivity is important. Additionally, the MKD1264-WP supports both passive and bi-amp operating modes, giving system integrators the flexibility to optimize performance according to specific installation requirements.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange driver, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth, improved low-frequency response, and superior clarity
• Nominal beamwidth of 60° horizontal x 45° vertical for even and controlled sound coverage
• Max SPL of 147 dB and flat SPL of 141 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options (IP56-rated) for both indoor and outdoor use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 147 dB
• Flat SPL: 141 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 60° Horizontal x 45° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
