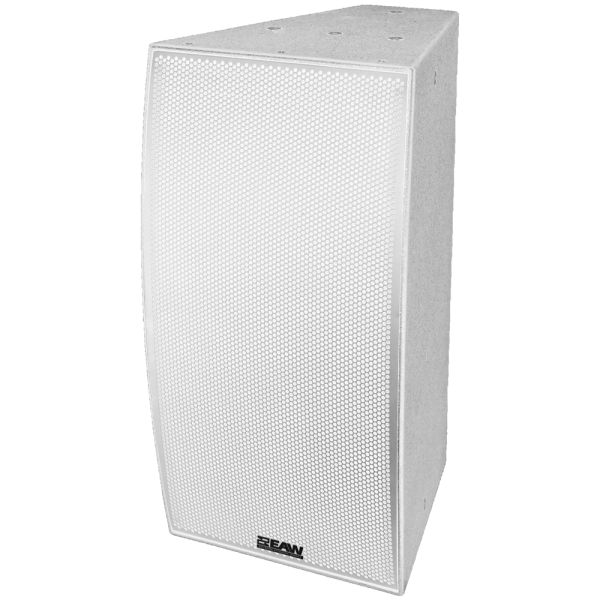

EAW MKD1096-WP 2 x 10in 2-Way Full Range Loudspeaker 90° x 60° Weatherproof (White)

The EAW MKD1096-WP is a 1000W passive 2-way installation loudspeaker designed to deliver high-output performance, precise broadband pattern control, and exceptional fidelity in a variety of professional applications. Part of the MKD installation series, the MKD1096-WP is engineered for both large-scale venues such as stadiums and more intimate environments like music clubs. This speaker features dual 10-inch low-frequency transducers and a 1.4-inch exit, 4-inch Neodymium compression driver, ensuring a powerful, full-range audio experience. The MKD1096-WP's white finish is perfect for installations where aesthetic integration is important, offering a sleek, professional look that blends well into any setting.

The MKD1096-WP builds on EAW's long-standing tradition of delivering high-output loudspeakers designed in collaboration with sound consultants and integrators worldwide. It incorporates key technologies from EAW's QX series, including a large-format rotatable horn centered around spaced low-frequency transducers. These advanced transducers are driven an octave lower than standard drivers, thanks to EAW's beamwidth-matched crossover technology, enhancing low-frequency performance while maintaining clarity across the full audio range. The MKD1096-WP features a nominal beamwidth of 90° horizontal and 60° vertical, delivering precise and even sound coverage across a wide area, making it perfect for venues requiring both controlled sound dispersion and broad coverage. With a maximum SPL of 142 dB (12 dB crest factor) and a flat SPL of 136 dB (6 dB crest factor), the MKD1096-WP is capable of producing loud, high-fidelity sound in even the most acoustically demanding spaces.

Designed for easy and flexible installation, the MKD1096-WP features a durable Baltic birch enclosure, ensuring robust construction and long-lasting performance. The speaker includes 12 M10 mounting points, making it easy to rig in various configurations. Mounted horizontally or vertically using optional U-brackets or M10 eyebolts, the MKD1096-WP offers versatile installation options. Additionally, the speaker is IP56-rated for weather protection, making it suitable for both indoor and outdoor installations. Custom color options and a gently curved front design make it ideal for visually sensitive environments, ensuring it can blend discreetly into the surroundings. The MKD1096-WP also supports both passive and bi-amp operating modes, offering flexibility for system integrators and optimized performance based on the specific needs of the installation.

Features

• 1000W passive 2-way loudspeaker with dual 10-inch cone drivers and 1.4-inch exit, 4-inch Neodymium compression driver
• QX-inspired design for extended bandwidth, improved low-frequency response, and superior clarity
• Nominal beamwidth of 90° horizontal x 60° vertical for precise and consistent coverage
• Max SPL of 142 dB (12 dB crest factor) and flat SPL of 136 dB (6 dB crest factor)
• Operating range from 57Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Passive and bi-amp operating modes for flexible system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options (IP56-rated) for both indoor and outdoor use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 26.7 x 14.6 x 16.5 inches, Net weight: 60 lbs, Shipping weight: 70 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL (12 dB Crest Factor): 142 dB
• Flat SPL (6 dB Crest Factor): 136 dB
• Operating Range: 57Hz - 20kHz
• Nominal Beamwidth: 90° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 89.4V, 1000W @ 8 ohms
• LF: 74.8V, 700W @ 8 ohms
• HF: 28.3V, 100W @ 8 ohms

Configuration

• LF Transducer, Loading: 2 x 10 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1.4 inch exit, 4 inch Neodymium Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical Rigging: 12 x M10 Mounting Points
• Dimensions: 26.7 x 14.6 x 16.5 inches
• Net Weight: 60 lbs
• Shipping Weight: 70 lbs
• Mounting Accessories: U-Bracket, M10 Eyebolts
• Input Connector: Terminal block
