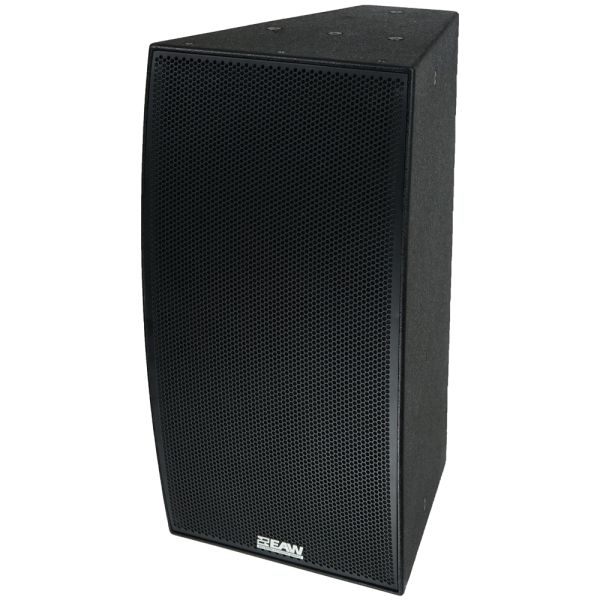

EAW MKD1096-WP 2 x 10in 2-Way Full Range Loudspeaker 90° x 60° Weatherproof (Black)

The EAW MKD1096-WP is a high-performance 1000W passive 2-way installation loudspeaker that is designed to deliver powerful sound with exceptional broadband pattern control and high fidelity. Part of the MKD installation series, this loudspeaker is perfect for a variety of professional environments, including stadiums, concert halls, music clubs, and corporate venues. With dual 10-inch low-frequency transducers and a 1.4-inch exit, 4-inch Neodymium compression driver, the MKD1096-WP ensures dynamic, full-range sound that is clear and impactful. The speaker's black finish and durable Baltic birch enclosure make it an ideal solution for both aesthetic and functional needs, offering robustness and strength for demanding installations.

The MKD1096-WP incorporates advanced design principles derived from EAW's QX series, including beamwidth-matched crossover technology. This design allows the acoustically advanced transducers to perform an octave lower than standard drivers, enhancing low-frequency response while maintaining clarity and definition. The large-format rotatable horn ensures that sound is distributed precisely across a 90° horizontal and 60° vertical coverage area, making the MKD1096-WP ideal for venues that require broad sound coverage. With a maximum SPL of 142 dB (12 dB crest factor) and a flat SPL of 136 dB (6 dB crest factor), the MKD1096-WP provides powerful, high-output sound with minimal distortion. It operates across a frequency range of 57Hz to 20kHz, ensuring it can handle a wide variety of audio content with exceptional clarity and accuracy.

The speaker is designed with versatility in mind. The MKD1096-WP features 12 M10 mounting points, making it easy to install in a variety of configurations. This loudspeaker is designed to be flexible and easy to integrate into your setup. Additionally, the MKD1096-WP is IP56-rated for weather protection, which makes it suitable for both indoor and outdoor applications, even in harsh environments. The speaker also supports both passive and bi-amp operating modes, allowing for flexibility in system design and optimization. Its gently curved front and custom color options further enhance its ability to fit into visually sensitive environments, making it a versatile choice for a variety of installation needs.

Features

• 1000W passive 2-way loudspeaker with dual 10-inch cone drivers and 1.4-inch exit, 4-inch Neodymium compression driver
• QX-inspired design for extended bandwidth and enhanced low-frequency response
• Nominal beamwidth of 90° horizontal x 60° vertical for precise, even sound coverage
• Max SPL of 142 dB (12 dB crest factor) and flat SPL of 136 dB (6 dB crest factor)
• Operating range from 57Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for customized system integration
• 12 M10 mounting points for secure rigging and easy installation
• IP56-rated for weather protection, suitable for both indoor and outdoor use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 26.7 x 14.6 x 16.5 inches, Net weight: 60 lbs, Shipping weight: 70 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL (12 dB Crest Factor): 142 dB
• Flat SPL (6 dB Crest Factor): 136 dB
• Operating Range: 57Hz - 20kHz
• Nominal Beamwidth: 90° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 89.4V, 1000W @ 8 ohms
• LF: 74.8V, 700W @ 8 ohms
• HF: 28.3V, 100W @ 8 ohms

Configuration

• LF Transducer, Loading: 2 x 10 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1.4 inch exit, 4 inch Neodymium Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical Rigging: 12 x M10 Mounting Points
• Dimensions: 26.7 x 14.6 x 16.5 inches
• Net Weight: 60 lbs
• Shipping Weight: 70 lbs
• Mounting Accessories: U-Bracket, M10 Eyebolts
• Input Connector: Terminal block
