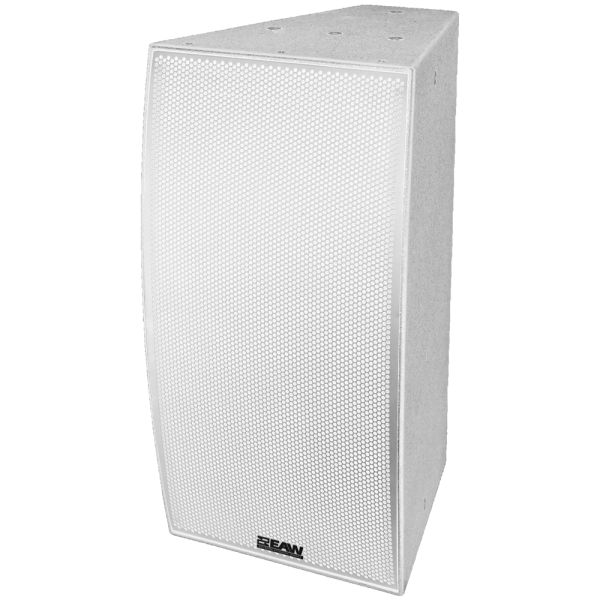

EAW MKD1064-WP 2 x 10in 2-Way Full Range Loudspeaker 60° x 45° Weatherproof (White)

The EAW MKD1064-WP is a powerful 1000W passive 2-way installation loudspeaker, engineered to provide exceptional high-output performance, broadband pattern control, and outstanding fidelity in a wide range of professional applications. Part of the MKD installation loudspeaker series, the MKD1064-WP is designed to meet the demands of both large-scale venues like stadiums and smaller, acoustically demanding spaces such as music clubs. It features dual 10-inch low-frequency transducers paired with a 1.4-inch exit, 4-inch Neodymium compression driver, ensuring deep, dynamic sound with clarity and precision. The white finish of the MKD1064-WP is ideal for installations where the speaker must blend seamlessly into the environment, providing both functional and aesthetic appeal.

The MKD1064-WP is built on EAW's long-standing tradition of delivering high-performance installation loudspeakers. It incorporates core technologies found in the QX series, such as beamwidth-matched crossover technology, which allows the transducers to be driven an octave lower than standard drivers. This results in improved low-frequency response, enhanced clarity, and a more natural sound. The large-format rotatable horn ensures excellent broadband pattern control, and the speaker offers a nominal beamwidth of 60° horizontal by 45° vertical, allowing it to deliver precise, even sound coverage across a variety of installation spaces. The MKD1064-WP has a maximum SPL of 144 dB (12 dB crest factor) and a flat SPL of 138 dB (6 dB crest factor), ensuring that it can produce clear, powerful sound in even the largest, most acoustically challenging environments. With an operating range from 57Hz to 20kHz, the speaker maintains full-range performance and an axial sensitivity of 93 dB, ensuring high-quality audio at both low and high output levels.

Designed for easy and flexible installation, the MKD1064-WP features a durable Baltic birch enclosure, providing strength and stability for a wide range of environments. The speaker includes 12 M10 mounting points for secure rigging, and it can be mounted horizontally or vertically using optional U-brackets or M10 eyebolts, making it suitable for various configurations. The MKD1064-WP is also IP56-rated, offering weather protection to withstand outdoor environments and ensuring its durability in harsh conditions. Custom color options and a gently curved front design provide the flexibility to integrate the speaker discreetly into visually sensitive installations. The MKD1064-WP offers high-fidelity sound with exceptional control and reliability. Additionally, it supports both passive and bi-amp operating modes, allowing for optimal system integration and performance in a variety of setups.

Features

• 1000W passive 2-way loudspeaker with dual 10-inch cone drivers and 1.4-inch exit, 4-inch Neodymium compression driver
• QX-inspired design for extended bandwidth, improved low-frequency response, and superior clarity
• Nominal beamwidth of 60° horizontal x 45° vertical for precise and even sound coverage
• Max SPL of 144 dB (12 dB crest factor) and flat SPL of 138 dB (6 dB crest factor)
• Operating range from 57Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible operating modes: passive and bi-amp for system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection (IP56-rated) and custom color options for versatile deployment
• Gently curved front design for discreet, visually sensitive installations
• Dimensions: 26.7 x 14.6 x 16.5 inches, Net weight: 60 lbs, Shipping weight: 70 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL (12 dB Crest Factor): 144 dB
• Flat SPL (6 dB Crest Factor): 138 dB
• Operating Range: 57Hz - 20kHz
• Nominal Beamwidth: 60° Horizontal x 45° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 89.4V, 1000W @ 8 ohms
• LF: 74.8V, 700W @ 8 ohms
• HF: 28.3V, 100W @ 8 ohms

Configuration

• LF Transducer, Loading: 2 x 10 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1.4 inch exit, 4 inch Neodymium Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical Rigging: 12 x M10 Mounting Points
• Dimensions: 26.7 x 14.6 x 16.5 inches
• Net Weight: 60 lbs
• Shipping Weight: 70 lbs
• Mounting Accessories: U-Bracket, M10 Eyebolts
• Input Connector: Terminal block
