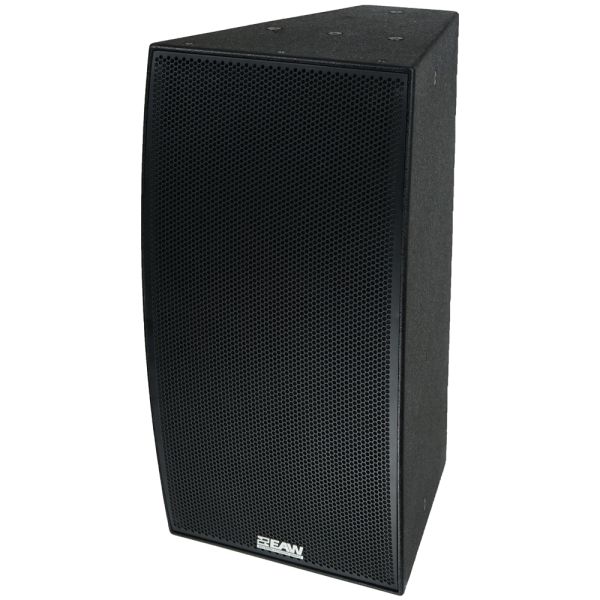

EAW MKD1064-WP 2 x 10in 2-Way Full Range Loudspeaker 60° x 45° Weatherproof (Black)

The EAW MKD1064-WP is a 1000W passive 2-way installation loudspeaker designed to deliver powerful, high-fidelity sound with exceptional pattern control in both large and small professional audio environments. Part of the MKD installation series, the MKD1064-WP is engineered for high-output performance and broadband pattern control, making it ideal for real-world applications, from stadiums to intimate music clubs. With dual 10-inch low-frequency transducers and a 1.4-inch exit, 4-inch Neodymium compression driver, the MKD1064-WP produces deep, clear sound across a wide frequency range. Its black finish offers a professional and sleek appearance, allowing it to blend seamlessly into various environments while providing the durability required for demanding installations.

The MKD1064-WP integrates core technologies from EAW's QX series, utilizing a pair of spaced low-frequency transducers and a large-format rotatable horn. The advanced beamwidth-matched crossover technology allows these acoustically refined transducers to be driven an octave lower than standard drivers, providing a more natural, dynamic low-end response while ensuring high-frequency clarity. This results in exceptional audio fidelity with broad, even coverage. The MKD1064-WP offers a nominal beamwidth of 60° horizontal and 45° vertical, making it perfect for installations that require controlled, consistent sound across a wide area. With a maximum SPL of 144 dB (12 dB crest factor) and a flat SPL of 138 dB (6 dB crest factor), the speaker can handle demanding sound reinforcement needs without compromising on clarity.

The MKD1064-WP operates within a frequency range of 57Hz to 20kHz and has an axial sensitivity of 93 dB. Its calculated axial output of 120 dB average (132 dB peak) ensures that it delivers clear, full-range audio at both low and high volumes, making it suitable for a wide variety of audio applications. The speaker also offers the flexibility of both passive and bi-amp operating modes, allowing it to be tailored to the specific needs of any installation. The MKD1064-WP excels in delivering high-quality sound with precision and power.

Designed with ease of installation in mind, the MKD1064-WP features a compact, durable Baltic birch enclosure that includes 12 M10 mounting points for secure rigging. The speaker can be mounted horizontally or vertically using optional U-brackets or M10 eyebolts, and it offers weather protection options for both indoor and outdoor use. This versatility ensures that the MKD1064-WP can be deployed in a variety of environments, from permanent installations to mobile setups. Custom color options and the gently curved front design make it suitable for visually sensitive installations, allowing it to blend discreetly into any space. Additionally, the speaker's terminal block input connector ensures secure and reliable audio signal transmission, making the MKD1064-WP a dependable choice for high-performance installations.

Features

• 1000W passive 2-way loudspeaker with dual 10-inch cone drivers and 1.4-inch exit, 4-inch Neodymium compression driver
• QX-inspired design for extended bandwidth, deep low-end response, and enhanced clarity
• Nominal beamwidth of 60° horizontal x 45° vertical for precise, consistent sound coverage
• Max SPL of 144 dB (12 dB crest factor) and flat SPL of 138 dB (6 dB crest factor)
• Operating range from 57Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for optimized system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for outdoor and harsh environment use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 26.7 x 14.6 x 16.5 inches, Net weight: 60 lbs, Shipping weight: 70 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL (12 dB Crest Factor): 144 dB
• Flat SPL (6 dB Crest Factor): 138 dB
• Operating Range: 57Hz - 20kHz
• Nominal Beamwidth: 60° Horizontal x 45° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 89.4V, 1000W @ 8 ohms
• LF: 74.8V, 700W @ 8 ohms
• HF: 28.3V, 100W @ 8 ohms

Configuration

• LF Transducer, Loading: 2 x 10 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1.4 inch exit, 4 inch Neodymium Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical Rigging: 12 x M10 Mounting Points
• Dimensions: 26.7 x 14.6 x 16.5 inches
• Net Weight: 60 lbs
• Shipping Weight: 70 lbs
• Mounting Accessories: U-Bracket, M10 Eyebolts
• Input Connector: Terminal block
