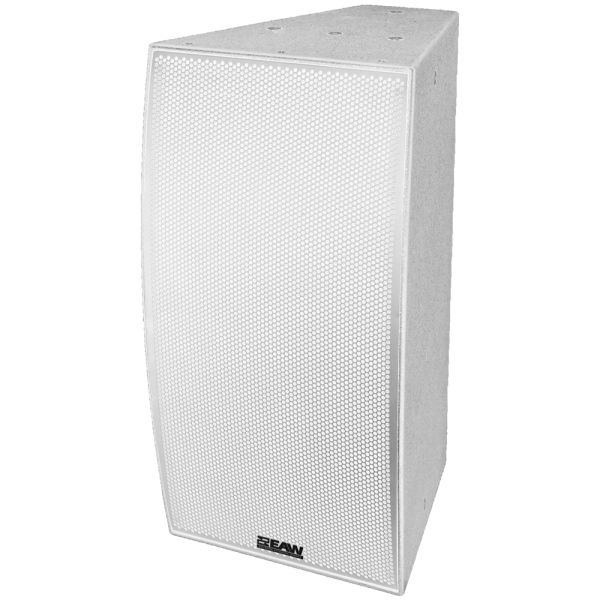

EAW MKD1026-WP 2 x 10in 2-Way Full Range Loudspeaker 120° x 60° Weatherproof (White)

The EAW MKD1026-WP is a 1000W passive 2-way installation loudspeaker designed to deliver exceptional performance in a variety of professional audio environments. As part of the MKD series, this speaker is engineered to meet the rigorous demands of both large-scale venues like stadiums and smaller, acoustically demanding spaces such as music clubs. With its advanced design and high output capabilities, the MKD1026-WP is perfect for applications that require precise sound control, superior fidelity, and exceptional broadband pattern coverage. The speaker's white finish ensures it integrates seamlessly into a range of installations, including those where visual sensitivity is a priority.

Featuring dual 10-inch low-frequency transducers and a 1.4-inch exit, 4-inch Neodymium compression driver, the MKD1026-WP provides EAW's signature broadband pattern control, providing even sound distribution across its 120° horizontal by 60° vertical coverage area. The speaker's advanced transducers and beamwidth-matched crossover technology allow it to be driven an octave lower than typical drivers, producing deep, rich sound without compromising clarity. With a maximum SPL of 141 dB (12 dB crest factor) and flat SPL of 135 dB (6 dB crest factor), the MKD1026-WP delivers powerful audio that can easily fill large venues while maintaining exceptional fidelity. The speaker's operating range extends from 57Hz to 20kHz, ensuring full-range sound reproduction for all audio content.

Built for durability and flexibility, the MKD1026-WP features a compact Baltic birch enclosure, which ensures both strength and ease of installation. It offers 12 M10 mounting points for secure rigging, and the speaker can be mounted horizontally or vertically using optional wall-mount or ceiling-mount brackets. This makes the MKD1026-WP highly versatile, suitable for a wide variety of configurations. It also offers weather protection options, making it ideal for outdoor applications or installations in environments exposed to the elements. The speaker's gently curved front and custom color options further enhance its ability to blend discreetly into sensitive visual environments. The MKD1026-WP supports both passive and bi-amp operating modes, providing flexibility for system integration and optimal performance based on the requirements of the audio setup.

Features

• 1000W passive 2-way loudspeaker with dual 10-inch cone drivers and 1.4-inch exit, 4-inch Neodymium compression driver
• QX-inspired design for extended bandwidth and superior low-frequency response
• Nominal beamwidth of 120° horizontal x 60° vertical for wide, even coverage
• Max SPL of 141 dB (12 dB crest factor) and flat SPL of 135 dB (6 dB crest factor)
• Operating range from 57Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Passive and bi-amp operating modes for flexible system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for durability in outdoor or harsh environments
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 26.7 x 14.6 x 16.5 inches, Net weight: 60 lbs, Shipping weight: 70 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL (12 dB Crest Factor): 141 dB
• Flat SPL (6 dB Crest Factor): 135 dB
• Operating Range: 57Hz - 20kHz
• Nominal Beamwidth: 120° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 89.4V, 1000W @ 8 ohms
• LF: 74.8V, 700W @ 8 ohms
• HF: 28.3V, 100W @ 8 ohms

Configuration

• LF Transducer, Loading: 2 x 10 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1.4 inch exit, 4 inch Neodymium Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical Rigging: 12 x M10 Mounting Points
• Dimensions: 26.7 x 14.6 x 16.5 inches
• Net Weight: 60 lbs
• Shipping Weight: 70 lbs
• Mounting Accessories: U-Bracket, M10 Eyebolts
• Input Connector: Terminal block
