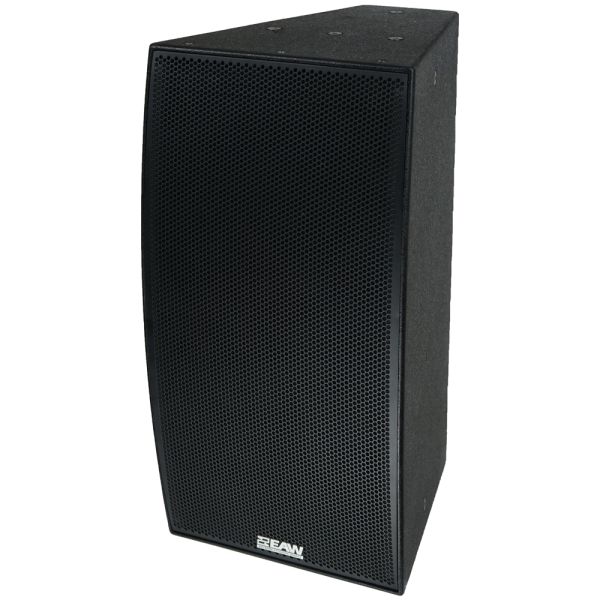

EAW MKD1026-WP 2 x 10in 2-Way Full Range Loudspeaker 120° x 60° Weatherproof (Black)

The EAW MKD1026-WP is a powerful 1000W passive 2-way installation loudspeaker engineered to deliver high output, exceptional fidelity, and broadband pattern control for a variety of professional audio applications. Designed for both large-scale venues like stadiums and intimate spaces such as music clubs, the MKD1026-WP excels in environments where high-performance sound reinforcement is crucial. This loudspeaker incorporates two 10-inch low-frequency transducers and a 1.4-inch exit, 4-inch Neodymium compression driver, providing the clarity and power needed for demanding installations. The speaker's black finish offers a sleek, professional look, while its IP56 rating ensures excellent weather protection, making it suitable for both indoor and outdoor use.

Building on EAW's long-standing tradition of providing high-output loudspeakers for installations, the MKD1026-WP uses the core technologies and design principles of the QX series, including the use of beamwidth-matched crossover technology. This allows the acoustically advanced transducers to be driven an octave lower than standard drivers, enhancing the speaker's low-frequency response and overall performance. The MKD1026-WP features a nominal beamwidth of 120° horizontal by 60° vertical, offering broad, even coverage ideal for a wide range of environments. The speaker can produce a maximum SPL of 141 dB (12 dB crest factor) and a flat SPL of 135 dB (6 dB crest factor), making it capable of filling large spaces with clear, dynamic sound.

With an operating range of 57Hz to 20kHz and an axial sensitivity of 93 dB, the MKD1026-WP ensures that high-fidelity sound is maintained across the entire frequency spectrum. The speaker can operate in either passive or bi-amped modes, offering flexibility depending on the needs of the system integrator. The speaker's durable Baltic birch enclosure provides easy installation with 12 M10 mounting points, and it supports optional U-bracket or M10 eyebolt mounting accessories for versatile deployment in a variety of configurations. The MKD1026-WP is also designed with a gently curved front and offers custom color options, making it a great choice for installations where aesthetics are as important as performance.

Features

• 1000W passive 2-way loudspeaker with dual 10-inch cone drivers and 1.4-inch exit, 4-inch Neodymium compression driver
• QX-inspired design for extended bandwidth and superior low-frequency response
• Nominal beamwidth of 120° horizontal x 60° vertical for wide, even coverage
• Max SPL of 141 dB (12 dB crest factor) and flat SPL of 135 dB (6 dB crest factor)
• Operating range from 57Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Passive and bi-amp operating modes for flexible system integration
• 12 M10 mounting points for secure rigging and easy installation
• Weather protection options for both indoor and outdoor use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 26.7 x 14.6 x 16.5 inches, Net weight: 60 lbs, Shipping weight: 70 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL (12 dB Crest Factor): 141 dB
• Flat SPL (6 dB Crest Factor): 135 dB
• Operating Range: 57Hz - 20kHz
• Nominal Beamwidth: 120° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 89.4V, 1000W @ 8 ohms
• LF: 74.8V, 700W @ 8 ohms
• HF: 28.3V, 100W @ 8 ohms

Configuration

• LF Transducer, Loading: 2 x 10 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1.4 inch exit, 4 inch Neodymium Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical Rigging: 12 x M10 Mounting Points
• Dimensions: 26.7 x 14.6 x 16.5 inches
• Net Weight: 60 lbs
• Shipping Weight: 70 lbs
• Mounting Accessories: U-Bracket, M10 Eyebolts
• Input Connector: Terminal block
