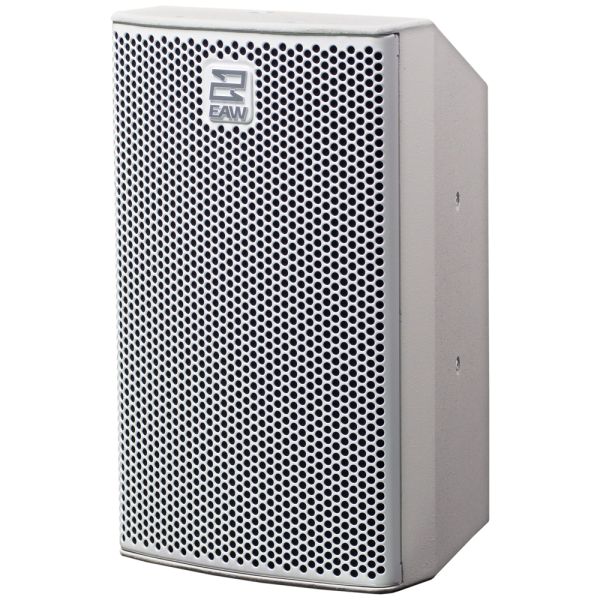

EAW MKC80 8in 2-Way Coaxial Loudspeaker (White)

The EAW MKC80 is a 450W passive 2-way portable loudspeaker designed for high-performance sound reproduction in both portable and installed audio applications. As part of the MKC series, this loudspeaker represents a significant evolution in coaxial loudspeaker technology, combining a high-efficiency 8-inch low-frequency transducer with a 1-inch exit compression driver featuring a 35mm voice coil. This combination allows the MKC80 to produce pristine, full-range audio similar to the clarity of a professional studio monitor. The speaker's sleek white finish makes it an ideal choice for venues, theaters, and other spaces that require both functionality and aesthetic appeal.

The MKC80 offers a nominal beamwidth of 90 x 60 degrees, which is rotatable to accommodate different deployment needs. Its maximum SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor) ensures that the speaker can deliver loud and clear sound even in large, acoustically demanding spaces. With an operating range from 60Hz to 20kHz and an axial sensitivity of 93 dB, the MKC80 provides a full spectrum of sound that is both detailed and dynamic. The speaker's calculated axial output of 120 dB average (132 dB peak) ensures that high-output sound is achieved without sacrificing fidelity, even at high volumes.

The MKC80 is highly versatile, with multiple mounting options for easy integration into a variety of installations. It can be mounted horizontally or vertically using the optional pan & tilt wall bracket, or it can be suspended from a ceiling using the 2x M10 suspension points. Additionally, the speaker features a 4 x M6 threaded pattern for wall or ceiling brackets and 2x pairs of M6 threaded points for pole mount adapters, offering flexibility in different configurations. The MKC80 also supports weather protection and transformer options, making it suitable for both indoor and outdoor use. The speaker is optimized for use with the companion UXA4401 amplifier, which enhances the speaker's performance through EAW's Focusing and DynO DSP technologies, ensuring optimal sound clarity and control in all environments.

Features

• 450W passive 2-way loudspeaker with 8-inch cone and 1-inch exit compression driver
• Patented Concentric Summation Array (CSA) for superior fidelity, dispersion, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for flexible coverage
• Max SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor)
• Operating range from 60Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible mounting options with 2x M10 suspension points, M6 threaded points for wall/ceiling brackets, and pole mount adapter
• Weather protection and transformer options for durability in various environments
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 16.6 x 10 x 10.5 inches, Net weight: 22 lbs, Shipping weight: 26 lbs
• Input connectors: 2x Neutrik NL4, 2-pin barrier strip

Specifications

Performance

• Max SPL (12 dB Crest Factor): 132 dB
• Max SPL (6 dB Crest Factor): 126 dB
• Operating Range: 60Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees rotatable
• Axial Sensitivity: 93 dB
• Calculated Axial Output: 120 dB average, 132 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 60Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 450W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1x1-inch exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 2x M10 Suspension points, 4 x M6 threaded pattern for wall or ceiling mount bracket, 2x pairs of M6 threaded points for pole mount adapter
• Dimensions: 16.6 x 10 x 10.5 inches
• Net Weight: 22 lbs
• Shipping Weight: 26 lbs
• Input Connector: 2x Neutrik NL4, 2-pin barrier strip
