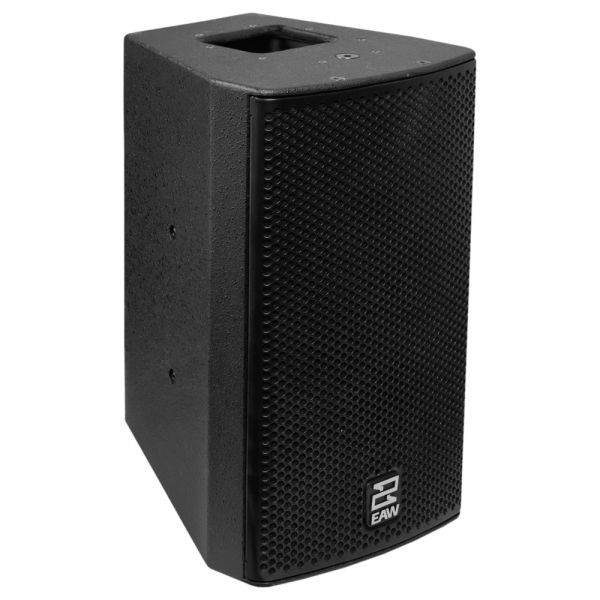

EAW MKC80 8in 2-Way Coaxial Loudspeaker (Black)

The EAW MKC80 is a 450W passive 2-way portable loudspeaker designed to provide superior sound quality and versatile deployment options for a wide range of professional audio applications. As part of the MKC series, it showcases an evolution in coaxial loudspeaker technology, combining an 8-inch low-frequency transducer and a 1-inch exit compression driver with a 35mm voice coil, all within a compact yet powerful design. The MKC80 is engineered to deliver pristine audio performance, similar to that of a high-end studio monitor, making it ideal for both mobile sound reinforcement and permanent installations. Its black finish ensures it blends seamlessly into any environment while offering durability and high performance.

The MKC80 features a nominal beamwidth of 90 x 60 degrees, which is rotatable to accommodate different coverage needs. With a maximum SPL of 132 dB (12 dB crest factor) and a frequency range from 60Hz to 20kHz, the speaker delivers high-output sound with excellent clarity across a broad spectrum. The axial sensitivity of 93 dB and the calculated axial output of 120 dB average (132 dB peak) ensures that the MKC80 can perform in demanding environments while maintaining high audio fidelity at both low and high volumes. Its Concentric Summation Array (CSA) design provides precise control over dispersion, allowing for consistent tonality throughout the coverage area, even at high SPL levels.

The speaker's flexible mounting options further enhance its versatility. It can be mounted horizontally or vertically using a pan & tilt wall bracket, or installed on a ceiling or microphone stand using the M6 threaded points. Additionally, the MKC80 includes two M10 suspension points for more permanent rigging solutions. The speaker also supports weather protection and transformer options, ensuring its durability and compatibility with a wide range of installation scenarios. For optimal performance, the MKC80 is designed to work with the companion UXA4401 amplifier, which enhances the speaker's performance through EAW's Focusing and DynO DSP technologies. The MKC80 is a versatile, high-performance solution for demanding audio professionals.

Features

• 450W passive 2-way loudspeaker with 8-inch cone and 1-inch exit compression driver
• Patented Concentric Summation Array (CSA) for superior control, fidelity, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for flexible coverage
• Max SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor)
• Operating range from 60Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible mounting options with M6 threaded points for wall or ceiling mount, and pole mount adapter
• Weather protection and transformer options for durable use in various environments
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• 2x M10 suspension points for rigging and deployment flexibility
• Dimensions: 16.6 x 10 x 10.5 inches, Net weight: 22 lbs, Shipping weight: 26 lbs
• Input connectors: 2x Neutrik NL4, 2-pin barrier strip

Specifications

Performance

• Max SPL (12 dB Crest Factor): 132 dB
• Max SPL (6 dB Crest Factor): 126 dB
• Operating Range: 60Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees rotatable
• Axial Sensitivity: 93 dB
• Calculated Axial Output: 120 dB average, 132 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 60Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 450W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1x1-inch exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 2x M10 Suspension points, 4 x M6 threaded pattern for wall or ceiling mount bracket, 2x pairs of M6 threaded points for pole mount adapter
• Dimensions: 16.6 x 10 x 10.5 inches
• Net Weight: 22 lbs
• Shipping Weight: 26 lbs
• Input Connector: 2x Neutrik NL4, 2-pin barrier strip
