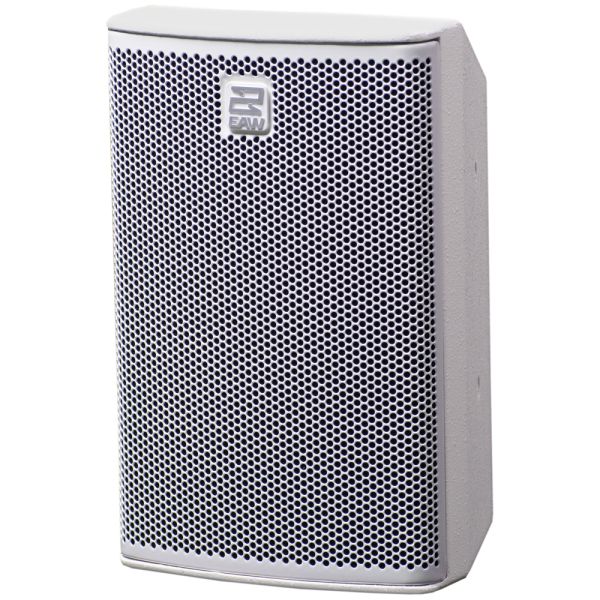

EAW MKC60MTPL-WP 6.5in 2-Way Coaxial Loudspeaker 70V/100V Weatherproof (White)

The EAW MKC60MTPL-WP is a 250W passive 2-way loudspeaker that combines high-performance audio with durability, making it an ideal choice for both portable and installed audio systems. As part of the MKC series, this loudspeaker features advanced coaxial technology, with a 6.5-inch low-frequency transducer and a top-quality 1-inch dome tweeter to deliver clear, balanced sound across a wide range of frequencies. Its sleek white finish enhances its appearance, allowing it to blend into a variety of professional environments. Used for sound reinforcement in indoor venues or as part of a larger outdoor system, the MKC60MTPL-WP provides excellent sound quality and reliable performance in demanding conditions.

With an IP56 rating for weather protection, the MKC60MTPL-WP is designed to withstand harsh conditions, including dust and water exposure, making it suitable for both indoor and outdoor installations. The speaker's nominal beamwidth of 110 degrees conical ensures wide, even coverage, making it ideal for a variety of applications, including commercial spaces and outdoor events. The MKC60MTPL-WP can produce a maximum SPL of 125 dB (12 dB crest factor) and 119 dB (6 dB crest factor), ensuring that audio is loud and clear even in large spaces. Its operating range of 70Hz to 20kHz, along with an axial sensitivity of 89 dB, ensures full-range sound reproduction with high fidelity.

For maximum versatility in installation, the MKC60MTPL-WP offers several mounting options. It can be mounted in both horizontal and vertical orientations using the optional pan & tilt wall bracket, or mounted on a ceiling or microphone stand using the integrated M6 threaded points. The speaker also supports 70V/100V transformer options, making it compatible with large-scale distributed audio systems for installations in theaters, auditoriums, and public spaces. The MKC60MTPL-WP is optimized for use with the companion UXA4401 amplifier, which ensures superior performance through EAW's Focusing and DynO DSP technologies. This combination of high-performance sound, flexible mounting options, and weather protection makes the MKC60MTPL-WP an outstanding choice for a wide range of professional audio applications.

Features

• 250W passive 2-way loudspeaker with 6.5-inch cone and 1-inch dome tweeter
• IP56-rated for dust and water resistance, suitable for both indoor and outdoor environments
• Patented coaxial design for superior fidelity, dispersion, and output
• Nominal beamwidth of 110 degrees conical for wide, even coverage
• Max SPL of 125 dB (12 dB crest factor) and 119 dB (6 dB crest factor)
• Operating range from 70Hz to 20kHz with axial sensitivity of 89 dB
• High-fidelity sound with calculated axial output of 113 dB average (125 dB peak)
• 70V/100V transformer options for compatibility with distributed audio systems
• Flexible mounting options with M6 threaded points for pole or mic stand, and M5 threaded pattern for wall or ceiling brackets
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 12.8 x 8.2 x 8.1 inches, Net weight: 10.8 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 125 dB
• Max SPL (6 dB Crest Factor): 119 dB
• Operating Range: 70Hz - 20kHz
• Nominal Beamwidth: 110 degrees conical
• Axial Sensitivity: 89 dB
• Calculated Axial Output: 113 dB average, 125 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.1 ohms @ 250Hz minimum
• Recommended HPF: 70Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 250W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 6.5 inch cone, 1.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch dome tweeter, coaxial
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical

• Physical Rigging: 3 x pairs of M6 threaded points for pole or microphone stand mount adapters, 4 x M5 threaded pattern for wall or ceiling mount bracket
• Dimensions: 12.8 x 8.2 x 8.1 inches
• Net Weight: 10.8 lbs
