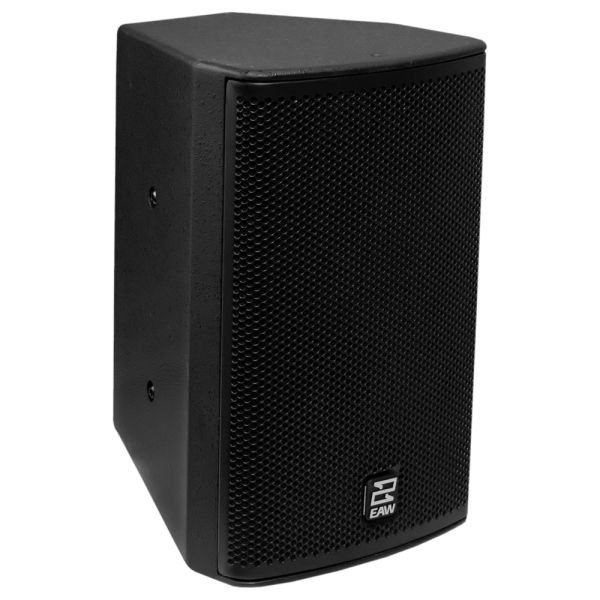

EAW MKC60MTPL-WP 6.5in 2-Way Coaxial Loudspeaker 70V/100V Weatherproof (Black)

The EAW MKC60MTPL-WP is a 250W passive 2-way portable loudspeaker that combines exceptional audio performance with durability, making it an ideal choice for both portable and installed audio systems. Part of the MKC series, this loudspeaker incorporates advanced coaxial technology, featuring a 6.5-inch low-frequency transducer paired with a 1-inch dome tweeter to deliver superior sound quality. The MKC60MTPL-WP is designed for a variety of applications, including sound reinforcement in venues and outdoor environments, with its IP56 weather protection rating ensuring it stands up to dust, water, and the elements. The speaker's black finish and rugged construction make it both an aesthetically pleasing and highly durable option for professional audio setups.

With a nominal beamwidth of 110 degrees conical, the MKC60MTPL-WP offers wide and even sound coverage, making it suitable for a range of environments. The speaker can produce a maximum SPL of 125 dB (12 dB crest factor) and 119 dB (6 dB crest factor), ensuring loud, clear audio even in larger spaces. Its operating range of 70Hz to 20kHz provides full-range sound reproduction, with an axial sensitivity of 89 dB, while the calculated axial output of 113 dB average (125 dB peak) ensures high-output sound without distortion. The MKC60MTPL-WP is engineered to provide high-fidelity audio with minimal coloration, making it ideal for installations where audio quality is critical.

For maximum flexibility, the MKC60MTPL-WP features a range of mounting options, including horizontal or vertical deployment with a pan & tilt wall bracket. It can also be mounted on a ceiling or mic stand using the integrated M6 threaded points. In addition, the speaker supports both 70V and 100V transformer options, allowing it to be used in large-scale distributed audio systems. This makes the MKC60MTPL-WP suitable for both portable and permanent installations in commercial spaces, auditoriums, and outdoor events. The speaker is also compatible with the UXA4401 amplifier, which utilizes EAW's Focusing and DynO DSP technologies to optimize performance and deliver clear, detailed audio across a wide range of frequencies.

Features

• 250W passive 2-way loudspeaker with 6.5-inch cone and 1-inch dome tweeter
• IP56-rated for dust and water resistance, suitable for indoor and outdoor environments
• Patented coaxial design for superior fidelity, dispersion, and output
• Nominal beamwidth of 110 degrees conical for wide, even coverage
• Max SPL of 125 dB (12 dB crest factor) and 119 dB (6 dB crest factor)
• Operating range from 70Hz to 20kHz with axial sensitivity of 89 dB
• High-fidelity sound with calculated axial output of 113 dB average (125 dB peak)
• 70V/100V transformer options for compatibility with distributed audio systems
• Flexible mounting options with M6 threaded points for pole or mic stand, and M5 threaded pattern for wall or ceiling brackets
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 12.8 x 8.2 x 8.1 inches, Net weight: 10.8 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 125 dB
• Max SPL (6 dB Crest Factor): 119 dB
• Operating Range: 70Hz - 20kHz
• Nominal Beamwidth: 110 degrees conical
• Axial Sensitivity: 89 dB
• Calculated Axial Output: 113 dB average, 125 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.1 ohms @ 250Hz minimum
• Recommended HPF: 70Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 250W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 6.5 inch cone, 1.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch dome tweeter, coaxial
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical

• Physical Rigging: 3 x pairs of M6 threaded points for pole or microphone stand mount adapters, 4 x M5 threaded pattern for wall or ceiling mount bracket
• Dimensions: 12.8 x 8.2 x 8.1 inches
• Net Weight: 10.8 lbs
