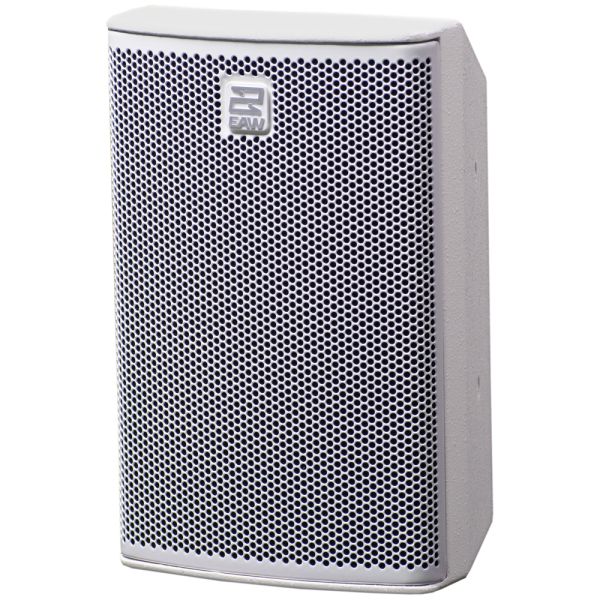

EAW MKC60 6.5in 2-Way Coaxial Loudspeaker (White)

The EAW MKC60 is a 250W passive 2-way loudspeaker, expertly engineered to deliver pristine audio performance across a wide range of professional audio applications. As part of the MKC series, this compact and versatile loudspeaker features a 6.5-inch low-frequency transducer and a top-tier 1-inch dome tweeter, ensuring superior sound quality, dispersion, and output. The MKC60's innovative coaxial design allows for high-fidelity sound that rivals professional studio monitors, making it an ideal choice for sound reinforcement in venues, theaters, and a variety of other installations. Its sleek white finish makes it an excellent fit for both aesthetic and functional needs in any environment.

The MKC60 offers a nominal beamwidth of 110 degrees conical, providing wide and even coverage across a large area. Used in smaller venues or as part of a larger system, the MKC60 ensures that every listener enjoys clear, dynamic audio. With a maximum SPL of 125 dB (12 dB crest factor) and 119 dB (6 dB crest factor), this speaker is capable of delivering impressive volume levels while maintaining audio clarity. Its operating range spans from 70Hz to 20kHz, ensuring full-range sound reproduction with an axial sensitivity of 89 dB. The calculated axial output of 113 dB average (125 dB peak) further solidifies its ability to perform reliably in a variety of demanding environments.

Designed for maximum versatility, the MKC60 can be deployed in both horizontal and vertical orientations through the use of an optional pan & tilt wall bracket. It also offers additional deployment options, including ceiling and mic stand mounts, providing flexibility in various installation configurations. The speaker's weather protection options make it suitable for both indoor and outdoor environments, ensuring its durability in harsh conditions. The MKC60 is also compatible with the UXA4401 amplifier, utilizing EAW's Focusing and DynO DSP technologies to ensure optimal performance. Used for permanent installations or portable sound reinforcement, the MKC60 delivers professional-grade audio in a compact, adaptable package.

Features

• 250W passive 2-way loudspeaker with 6.5-inch cone and 1-inch dome tweeter
• Patented coaxial design for superior fidelity, dispersion, and output
• Nominal beamwidth of 110 degrees conical for wide, even coverage
• Max SPL of 125 dB (12 dB crest factor) and 119 dB (6 dB crest factor)
• Operating range from 70Hz to 20kHz with axial sensitivity of 89 dB
• High-fidelity sound with calculated axial output of 113 dB average (125 dB peak)
• Innovative port design for enhanced low-frequency response and output
• Flexible mounting options with M6 threaded points for pole or mic stand, and M5 threaded pattern for wall or ceiling brackets
• Weather protection and transformer options for durability in various environments
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 12.8 x 8.2 x 8.1 inches, Net weight: 10.8 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 125 dB
• Max SPL (6 dB Crest Factor): 119 dB
• Operating Range: 70Hz - 20kHz
• Nominal Beamwidth: 110 degrees conical
• Axial Sensitivity: 89 dB
• Calculated Axial Output: 113 dB average, 125 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.1 ohms @ 250Hz minimum
• Recommended HPF: 70Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 250W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 6.5 inch cone, 1.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch dome tweeter, coaxial
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical

• Physical Rigging: 3 x pairs of M6 threaded points for pole or microphone stand mount adapters, 4 x M5 threaded pattern for wall or ceiling mount bracket
• Dimensions: 12.8 x 8.2 x 8.1 inches
• Net Weight: 10.8 lbs
