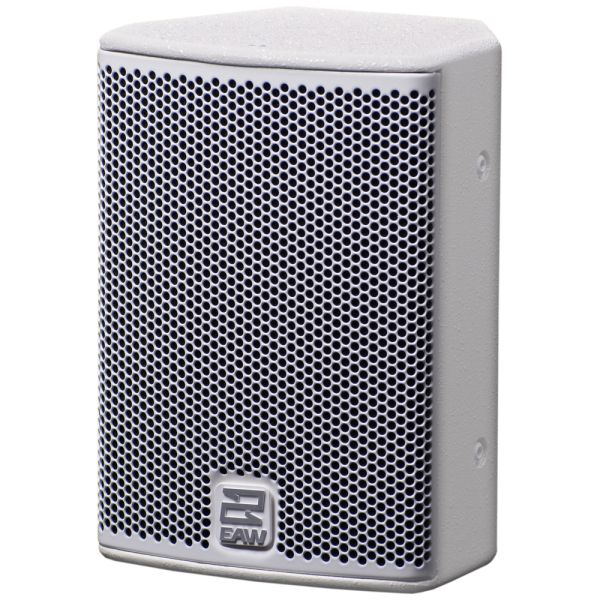

EAW MKC50MTPL-WP 5.25in 2-Way Coaxial Loudspeaker 70V/100V Weatherproof (White)

The EAW MKC50MTPL-WP is a 150W passive 2-way loudspeaker that combines high-quality audio performance with durability and versatility. Part of the MKC series, the MKC50MTPL-WP features a 5.25-inch low-frequency transducer paired with a top-of-the-line 1-inch dome tweeter, delivering exceptional audio fidelity and clarity. This loudspeaker is designed to offer superior sound dispersion and output, making it ideal for a wide range of professional audio applications. With an IP56 rating, the MKC50MTPL-WP is both dust and water-resistant, ensuring its ability to withstand demanding environments, indoors or outdoors.

The MKC50MTPL-WP is equipped with an innovative port design that enhances its performance, offering sound that is comparable to a professional studio monitor. This compact loudspeaker features a nominal beamwidth of 110 degrees conical, providing wide, even coverage suitable for various configurations. Used for sound reinforcement in small venues, classrooms, or as part of a distributed audio system, the MKC50MTPL-WP delivers high-quality sound with a maximum SPL of 121 dB (12 dB crest factor) and 115 dB (6 dB crest factor). Its operating range of 80Hz to 20kHz and axial sensitivity of 87 dB ensure full-range audio clarity with high-output performance.

Designed for flexibility in installation, the MKC50MTPL-WP offers multiple mounting options, including horizontal and vertical orientations using a pan & tilt wall bracket, as well as ceiling and microphone stand mounts. These versatile mounting options allow the loudspeaker to be deployed in a variety of configurations, making it perfect for both portable and fixed installations. The speaker also includes a 70V/100V transformer, enabling it to be used in large-scale distributed audio systems. The MKC50MTPL-WP is optimized for use with the UXA4401 amplifier, delivering enhanced performance through EAW's Focusing and DynO DSP technologies, ensuring clear, precise audio output in all environments.

Features

• 150W passive 2-way loudspeaker with 5.25-inch cone and 1-inch dome tweeter
• IP56-rated for dust and water resistance, suitable for indoor and outdoor environments
• Patented coaxial design for superior fidelity, dispersion, and output
• Nominal beamwidth of 110 degrees conical for wide, even coverage
• Max SPL of 121 dB (12 dB crest factor) and 115 dB (6 dB crest factor)
• Operating range from 80Hz to 20kHz with axial sensitivity of 87 dB
• High-fidelity sound with calculated axial output of 109 dB average (121 dB peak)
• 70V/100V transformer for compatibility with distributed audio systems
• Flexible mounting options with M6 threaded points for pole or mic stand, and M5 threaded pattern for wall or ceiling brackets
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 9.3 x 6.5 x 5.6 inches, Net weight: 7.2 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 121 dB
• Max SPL (6 dB Crest Factor): 115 dB
• Operating Range: 80Hz - 20kHz
• Nominal Beamwidth: 110 degrees conical
• Axial Sensitivity: 87 dB
• Calculated Axial Output: 109 dB average, 121 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.2 ohms @ 15kHz minimum
• Recommended HPF: 80Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 150W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 5.25 inch cone, 1.25 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch dome tweeter, coaxial
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical

• Physical Rigging: 3 x pairs of M6 threaded points for pole or microphone stand mount adapters, 4 x M5 threaded pattern for wall or ceiling mount bracket
• Dimensions: 9.3 x 6.5 x 5.6 inches
• Net Weight: 7.2 lbs
