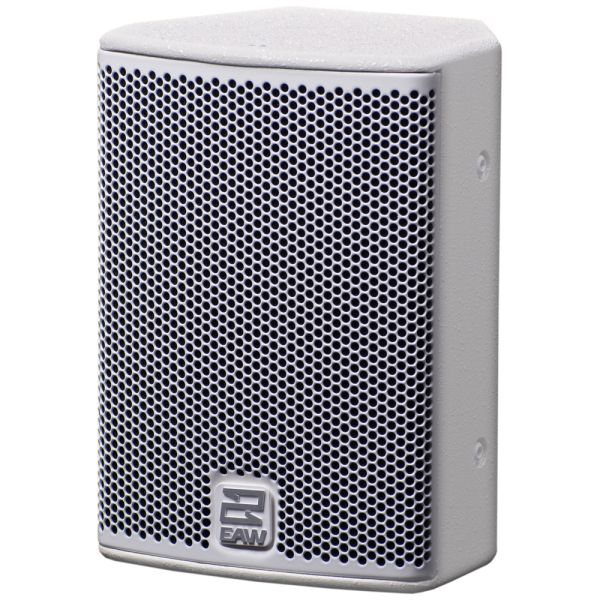

EAW MKC50 5.25in 2-Way Coaxial Loudspeaker (White)

The EAW MKC50 is a 150W passive 2-way portable loudspeaker, combining superior sound performance with versatile mounting options, making it an excellent choice for a wide range of professional audio applications. As part of the MKC series, the MKC50 represents a significant evolution in coaxial loudspeakers, designed to provide exceptional clarity and output in both portable and installed configurations. Featuring a 5.25-inch low-frequency driver and a 1-inch dome tweeter, this compact loudspeaker delivers high-fidelity sound similar to that of professional studio monitors. With its clean white finish, the MKC50 integrates seamlessly into any environment, offering pristine audio performance with an innovative port design for enhanced sound quality.

Engineered for optimal dispersion, the MKC50 offers a nominal beamwidth of 110 degrees conical, ensuring wide and even coverage in smaller venues, classrooms, or mobile setups. It is capable of producing a maximum SPL of 121 dB (12 dB crest factor) and 115 dB (6 dB crest factor), making it suitable for high-output sound reinforcement. The operating range of 80Hz to 20kHz, along with an axial sensitivity of 87 dB, ensures that the MKC50 provides clear and detailed sound across a broad frequency spectrum. This speaker also features a calculated axial output of 109 dB average (121 dB peak), allowing it to maintain high audio fidelity at both low and high volumes.

The MKC50's versatility extends to its mounting options, offering several flexible solutions for wall, ceiling, or pole mount applications. It can be deployed in both horizontal and vertical orientations using a pan & tilt wall bracket, or mounted on a ceiling or microphone stand for added flexibility. The speaker also benefits from weather protection and transformer options, ensuring durability and performance in a variety of environments. With the companion UXA4401 amplifier, the MKC50 delivers optimal performance through EAW's Focusing and DynO DSP technologies. This loudspeaker is an excellent choice for both portable and permanent installations, providing professional-grade sound in a compact, easy-to-deploy package.

Features

• 150W passive 2-way loudspeaker with 5.25-inch cone and 1-inch dome tweeter
• Patented coaxial design for superior fidelity, dispersion, and output
• Nominal beamwidth of 110 degrees conical for wide, even coverage
• Max SPL of 121 dB (12 dB crest factor) and 115 dB (6 dB crest factor)
• Operating range from 80Hz to 20kHz with axial sensitivity of 87 dB
• High-fidelity sound with calculated axial output of 109 dB average (121 dB peak)
• Innovative port design for pristine audio output similar to professional studio monitors
• Flexible mounting options with M6 threaded points for pole or mic stand, and M5 threaded pattern for wall or ceiling brackets
• Weather protection and transformer options for durability in various environments
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 9.3 x 6.5 x 5.6 inches, Net weight: 7.2 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 121 dB
• Max SPL (6 dB Crest Factor): 115 dB
• Operating Range: 80Hz - 20kHz
• Nominal Beamwidth: 110 degrees conical
• Axial Sensitivity: 87 dB
• Calculated Axial Output: 109 dB average, 121 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.2 ohms @ 15kHz minimum
• Recommended HPF: 80Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 150W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 5.25 inch cone, 1.25 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch dome tweeter, coaxial
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical

• Physical Rigging: 3 x pairs of M6 threaded points for pole or microphone stand mount adapters, 4 x M5 threaded pattern for wall or ceiling mount bracket
• Dimensions: 9.3 x 6.5 x 5.6 inches
• Net Weight: 7.2 lbs
